binder M8 D-Coded (818 Series)

In brief:

Compact circular connector system with industry standard DIN EN 61076-2-114 M8x1 screw locking interface.

M8 D-Coded connectors are available in a 4 way format with a current carrying capacity of up to 4A per contact.

The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 0.50mm² and is capable of offering IP67 ingress protection in mated state.

binder connectors

Robust and compact circular connectors from one of the industry’s most trusted brands

DownloadDownload Brochure

M8-D connectors are essential components for data transmission and known for their efficiency and reliability in demanding industrial environments with limited installation spaces.

The M8 D-coded connector offers a robust solution for high-speed data communication, with options for both M8-D male connectors and M8-D female connectors to accommodate various connection needs.

The M8 connector D-coding ensures secure and precise data transmission, making it particularly well-suited for Ethernet applications.

M8-D connectors are designed to meet the high demands of industrial data connectivity in applications with small or limited space with data rates of up to 100 Mbit/s.

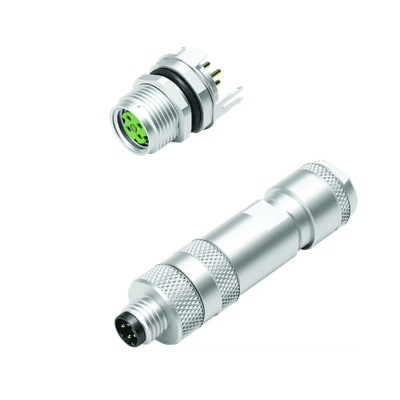

Connectors with D-coding are shielded and achieve protection class IP67, have 4 contacts and are available as straight cable connectors and as straight and angled flange connectors.

The cable connectors are available for self-connection with a screw terminal connection or with overmoulded heads, the flange connectors via a dip solder connection.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001

We have many products in this series, find what you need using the filters below

16 products match your criteria:

99-3369-100-04 thumbnail

Part no. : 99-3369-100-04

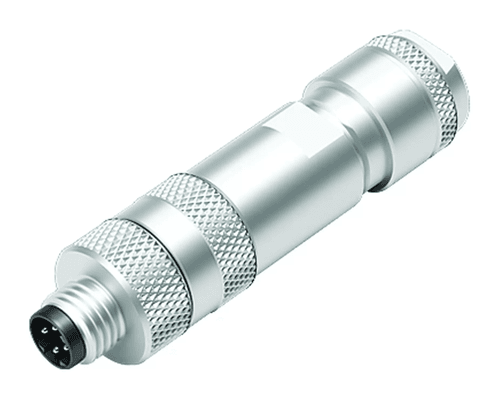

4 Way M8 (D-Coded) Male Cable Connector with Screw Contacts, 4-5.5mm Straight Cable Entry, Shieldable, IP67 (818 series)

99-3369-600-04 thumbnail

Part no. : 99-3369-600-04

4 Way M8 (D-Coded) Male Cable Connector with Screw Contacts, 5-8mm Straight Cable Entry, Shieldable, IP67 (818 series)

99-3368-100-04 thumbnail

Part no. : 99-3368-100-04

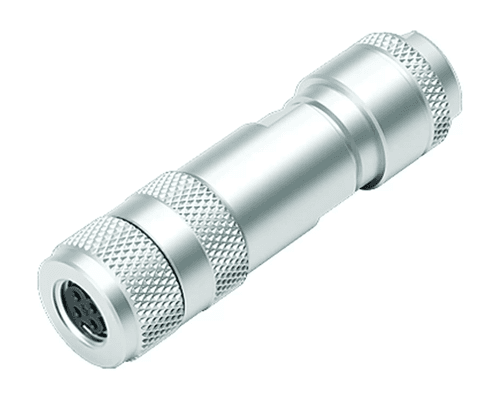

4 Way M8 (D-Coded) Female Cable Connector with Screw Contacts, 4-5.5mm Straight Cable Entry, Shieldable, IP67 (818 series)

99-3368-600-04 thumbnail

Part no. : 99-3368-600-04

4 Way M8 (D-Coded) Female Cable Connector with Screw Contacts, 5-8mm Straight Cable Entry, Shieldable, IP67 (818 series)

86-6321-1120-00404 thumbnail

Part no. : 86-6321-1120-00404

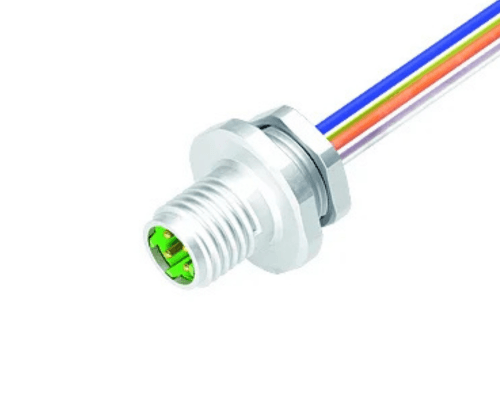

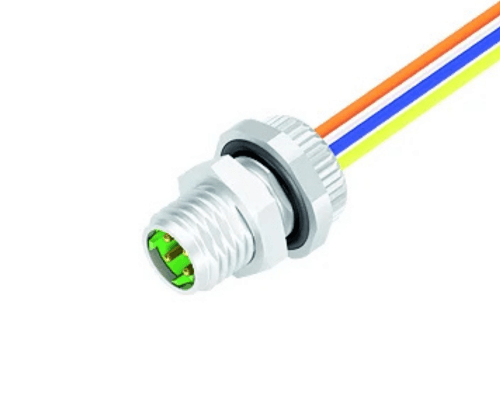

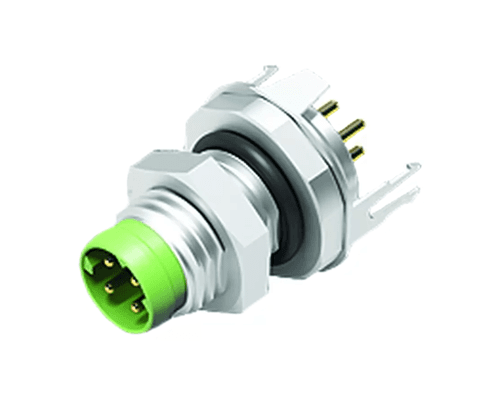

4 Way M8 (D-Coded) Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (818 series)

86-6321-1121-00404 thumbnail

Part no. : 86-6321-1121-00404

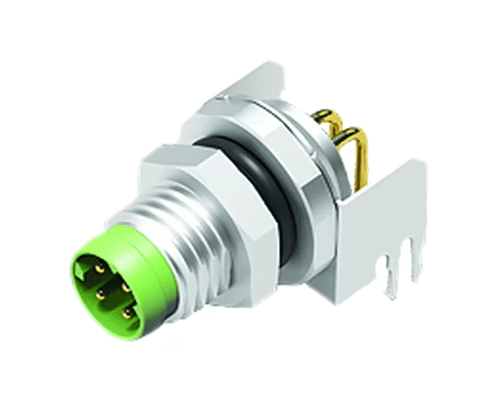

4 Way M8 (D-Coded) Male Jam-Nut Panel Connector with Angled Dip-Solder Contacts, IP67 (818 series)

86-6620-1120-00404 thumbnail

Part no. : 86-6620-1120-00404

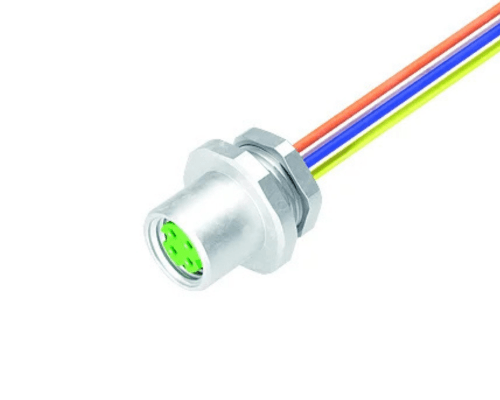

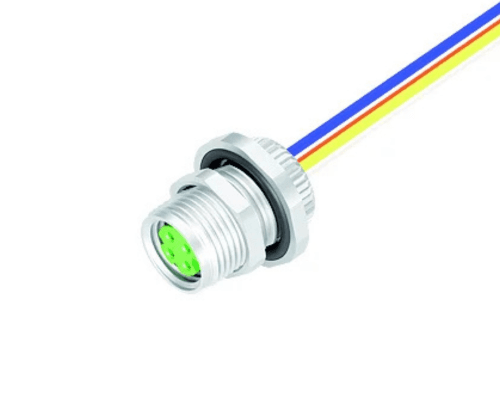

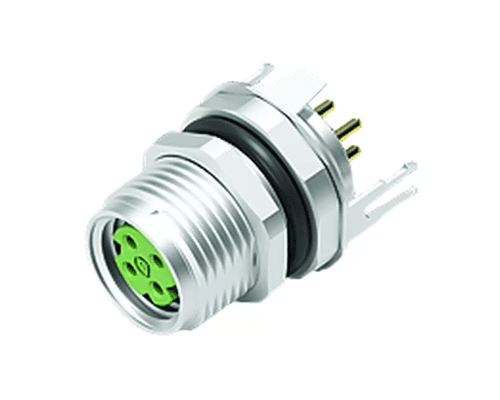

4 Way M8 (D-Coded) Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (818 series)

86-6620-1121-00404 thumbnail

Part no. : 86-6620-1121-00404

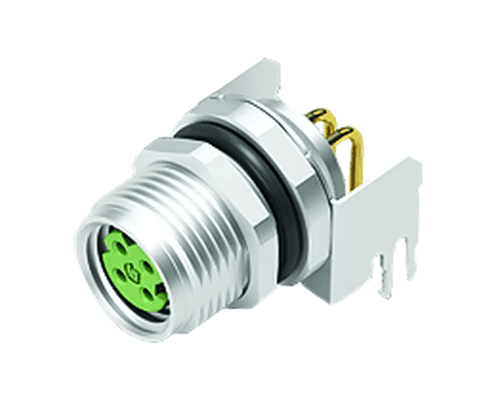

4 Way M8 (D-Coded) Female Jam-Nut Panel Connector with Angled Dip-Solder Contacts, IP67 (818 series)

77-5429-0000-50704-0200 thumbnail

Part no. : 77-5429-0000-50704-0200

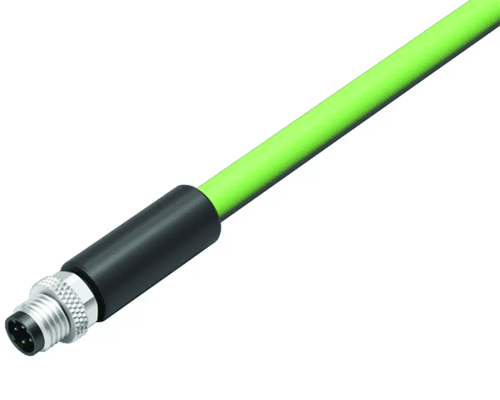

4 Way M8 (D-Coded) Cable Assembly, Straight Male to Open End, 2m Cat. 5e Shielded Cable with Green PUR Jacket, IP67 (818 Series)

77-5429-0000-50704-0500 thumbnail

Part no. : 77-5429-0000-50704-0500

4 Way M8 (D-Coded) Cable Assembly, Straight Male to Open End, 5m Cat. 5e Shielded Cable with Green PUR Jacket, IP67 (818 Series)

77-5430-0000-50704-0200 thumbnail

Part no. : 77-5430-0000-50704-0200

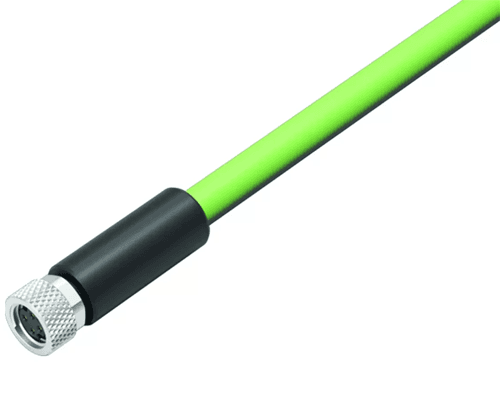

4 Way M8 (D-Coded) Cable Assembly, Straight Female to Open End, 2m Cat. 5e Shielded Cable with Green PUR Jacket, IP67 (818 Series)

77-5430-0000-50704-0500 thumbnail

Part no. : 77-5430-0000-50704-0500

4 Way M8 (D-Coded) Cable Assembly, Straight Female to Open End, 5m Cat. 5e Shielded Cable with Green PUR Jacket, IP67 (818 Series)

77-5429-5429-50704-0100 thumbnail

Part no. : 77-5429-5429-50704-0100

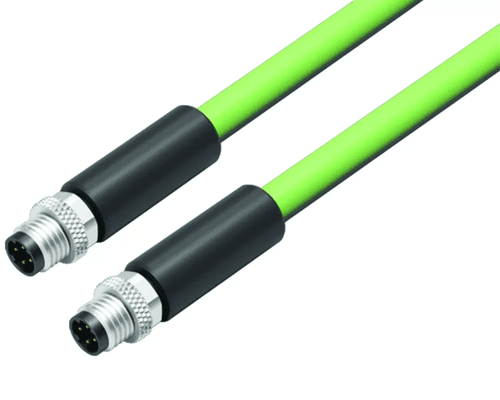

4 Way M8 (D-Coded) Cable Assembly, Straight Male to Straight Male, 1m Cat. 5e Shielded Cable with Green PUR Jacket, IP67 (818 Series)

77-5429-5429-50704-0200 thumbnail

Part no. : 77-5429-5429-50704-0200

4 Way M8 (D-Coded) Cable Assembly, Straight Male to Straight Male, 2m Cat. 5e Shielded Cable with Green PUR Jacket, IP67 (818 Series)

77-5430-5429-50704-0100 thumbnail

Part no. : 77-5430-5429-50704-0100

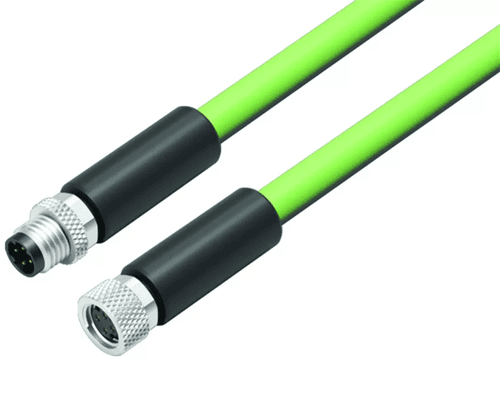

4 Way M8 (D-Coded) Cable Assembly, Straight Male to Straight Female, 1m Cat. 5e Shielded Cable with Green PUR Jacket, IP67 (818 Series)

77-5430-5429-50704-0200 thumbnail

Part no. : 77-5430-5429-50704-0200

4 Way M8 (D-Coded) Cable Assembly, Straight Male to Straight Female, 2m Cat. 5e Shielded Cable with Green PUR Jacket, IP67 (818 Series)
