77-5429-0000-50704-0200

binder / M8 D-Coded (818 Series)

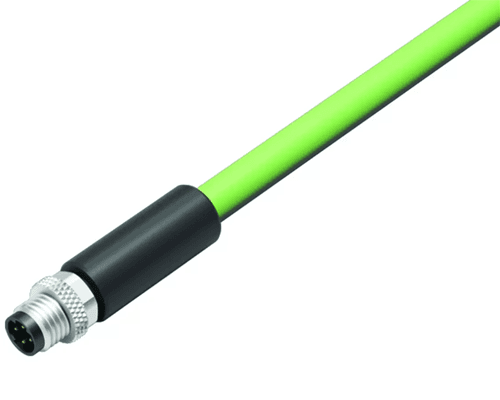

4 Way M8 (D-Coded) Cable Assembly, Straight Male to Open End, 2m Cat. 5e Shielded Cable with Green PUR Jacket, IP67 (818 Series)

Image may be representative of a range of products, see literature to confirm

Available Downloads

Technical Specification

Part Number77-5429-0000-50704-0200

Product TypeCable Assembly

Brandbinder

Connector SeriesM8-D (818 Series)

Cable Assembly TypeSingle Ended

Cable Jacket ColourGreen

Cable Jacket MaterialPUR

Cable Length2m

Cable Operating Temperature-40 to +80°C (fixed), -20 to +60°C (flex)

Conductor Gauge0.34mm²

Connector Operating Temperature-25 to +85°C

Connector Type 14 Way Male

Connector Type 2NA

Contact PlatingGold

Coupling Area MaterialMetal

Current Rating4A

Voltage Rating63V

Electrical NotesPollution Degree 3

Degree of Ingress ProtectionIP67

EMC ShieldYes

Gender of InsertMale

Housing MaterialPlastic

Keyway/Coding TypeD-Coded

Locking SystemScrew

Min. Mechanical Mating Cycles100

Number of Conductors4

Shell TypeCable Connector

About this Series

Robust and compact circular connectors from one of the industry’s most trusted brands

In brief:

Compact circular connector system with industry standard DIN EN 61076-2-114 M8x1 screw locking interface.

M8 D-Coded connectors are available in a 4 way format with a current carrying capacity of up to 4A per contact.

The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 0.50mm² and is capable of offering IP67 ingress protection in mated state.

M8-D connectors are essential components for data transmission and known for their efficiency and reliability in demanding industrial environments with limited installation spaces.

The M8 D-coded connector offers a robust solution for high-speed data communication, with options for both M8-D male connectors and M8-D female connectors to accommodate various connection needs.

The M8 connector D-coding ensures secure and precise data transmission, making it particularly well-suited for Ethernet applications.

M8-D connectors are designed to meet the high demands of industrial data connectivity in applications with small or limited space with data rates of up to 100 Mbit/s.

Connectors with D-coding are shielded and achieve protection class IP67, have 4 contacts and are available as straight cable connectors and as straight and angled flange connectors.

The cable connectors are available for self-connection with a screw terminal connection or with overmoulded heads, the flange connectors via a dip solder connection.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
