86-6620-1121-00404

binder / M8 D-Coded (818 Series)

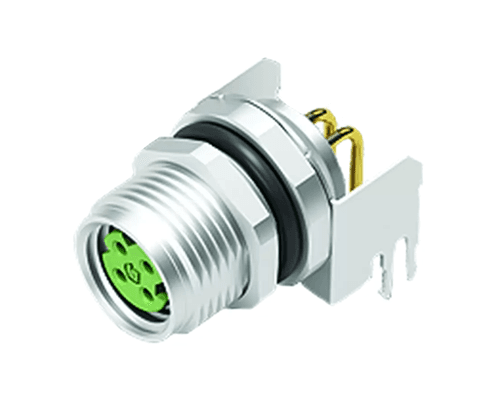

4 Way M8 (D-Coded) Female Jam-Nut Panel Connector with Angled Dip-Solder Contacts, IP67 (818 series)

Image may be representative of a range of products, see literature to confirm

Available Downloads

Technical Specification

Part Number86-6620-1121-00404

Product TypeConnector

Brandbinder

Connector SeriesM8-D (818 Series)

Backshell IncludedNA

Body OrientationStraight

Connector TypePanel Connector

Contact PlatingGold

Contacts IncludedYes

Coupling Area MaterialMetal

Current Rating4A

Voltage Rating63V DC

Electrical NotesPollution Degree 3

Degree of Ingress ProtectionIP67

EMC Shielding CapabilityYes

Gender of InsertFemale

Housing MaterialMetal

Keyway/Coding TypeD-Coded

Locking SystemScrew

Min. Mechanical Mating Cycles100

Max. Wire Gauge/Cross-Sectional AreaNA

Min. Cable Entry (mm)NA

Max. Cable Entry (mm)NA

Number of Ways4

Operating Temperature-40°C to 85°C

Positive Earth (PE)No

Shell sizeNA

Termination Method/TechnologyDip-Solder

About this Series

Robust and compact circular connectors from one of the industry’s most trusted brands

In brief:

Compact circular connector system with industry standard DIN EN 61076-2-114 M8x1 screw locking interface.

M8 D-Coded connectors are available in a 4 way format with a current carrying capacity of up to 4A per contact.

The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 0.50mm² and is capable of offering IP67 ingress protection in mated state.

M8-D connectors are essential components for data transmission and known for their efficiency and reliability in demanding industrial environments with limited installation spaces.

The M8 D-coded connector offers a robust solution for high-speed data communication, with options for both M8-D male connectors and M8-D female connectors to accommodate various connection needs.

The M8 connector D-coding ensures secure and precise data transmission, making it particularly well-suited for Ethernet applications.

M8-D connectors are designed to meet the high demands of industrial data connectivity in applications with small or limited space with data rates of up to 100 Mbit/s.

Connectors with D-coding are shielded and achieve protection class IP67, have 4 contacts and are available as straight cable connectors and as straight and angled flange connectors.

The cable connectors are available for self-connection with a screw terminal connection or with overmoulded heads, the flange connectors via a dip solder connection.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
