Hirschmann M12 A-Coded Cable Connectors (E-Series)

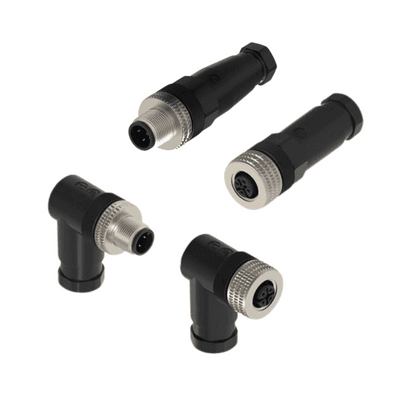

Hirschmann M12 A-Coded Cable Connectors

In brief:

Compact circular connector system with industry standard IEC 61076-2-101 M12x1 screw locking interface.

M12 A-Coded cable connectors offer pin-counts of 4 and 5 with a current carrying capacity of up to 4A per contact.

The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 0.75mm² and is capable of offering IP67 ingress protection in mated state.

Hirschmann logo

High-quality products for the automation industry, delivered at great value

DownloadDownload Brochure

Challenges are a routine matter for the circular connectors of the E-series M12: inductive or capacitative proximity switches, photoelectric barriers, flow-monitoring devices, pressure switches, limit switch connections, photoelectric barriers,

AS interface bus components and field bus components – the best is just good enough. And in order to ensure a particularly long life, Hirschmann circular connectors are protected against dust
and moisture and are resistant to many oils and chemical substances.

The ergonomic design of E-series makes handling easier; as a result, the connection of sensor and actuator technology in automation systems as for example in automatic installation units and machine tools can be done quickly and promptly.

Our engineered design prevents the accidental unscrewing of the coupling nut. This provides an additional advantage in terms of safety in all fields of application that are subject to high vibration loads, for example in conveyor belt equipment and automatic punch presses.

Hirschmann circular connectors are used in all sensor and actuator device applications in automation technology – particularly where
the risk of vibrations is especially high.

The E-series M12 with plug design as per IEC 61076-2-101 (Ed. 1) can be obtained in the design type with screw locking M12x1.

For a more detailed description of this connector series please see the extract from the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001

We have many products in this series, find what you need using the filters below

22 products match your criteria:

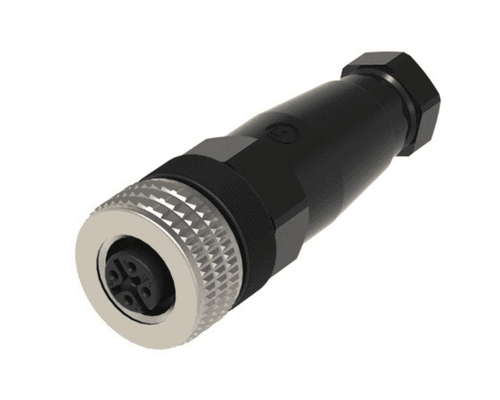

933139100 thumbnail

Part no. : 933139100

4 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-6mm Straight Cable Entry, IP67 (ELKA 4012 PG7 Black)

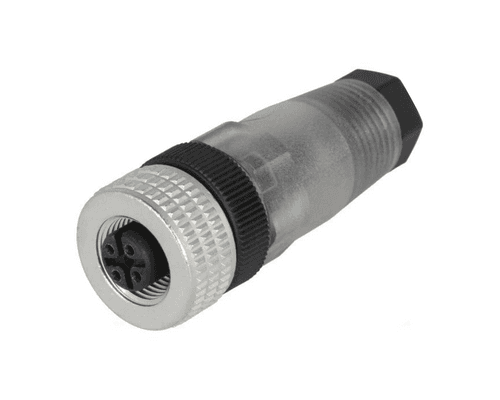

933210199 thumbnail

Part no. : 933210199

4 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-6mm Straight Cable Entry, IP67 (ELKA 4012 PG7 Transparent)

933725100 thumbnail

Part no. : 933725100

4 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-6mm Straight Cable Entry, IP67 (ELKA 4012 K PG7 Black)

933169100 thumbnail

Part no. : 933169100

4 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, IP67 (ELKA 4012 PG9 Black)

933170100 thumbnail

Part no. : 933170100

5 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-6mm Straight Cable Entry, IP67 (ELKA 5012 PG7 Black)

933171100 thumbnail

Part no. : 933171100

5 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, IP67 (ELKA 5012 PG9 Black)

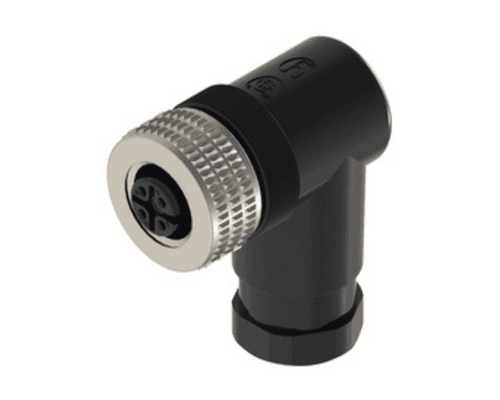

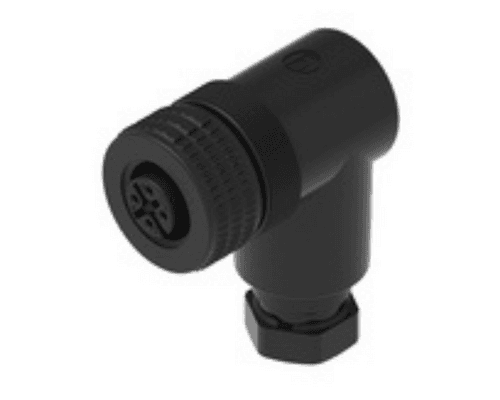

933172100 thumbnail

Part no. : 933172100

4 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-6mm Angled Cable Entry, IP67 (ELWIKA 4012 PG7 Black)

933173199 thumbnail

Part no. : 933173199

4 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-6mm Angled Cable Entry, IP67 (ELWIKA 4012 PG7 Transparent)

933726100 thumbnail

Part no. : 933726100

4 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-6mm Angled Cable Entry, IP67 (ELWIKA 4012 K PG7)

933174100 thumbnail

Part no. : 933174100

4 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 6-8mm Angled Cable Entry, IP67 (ELWIKA 4012 PG9)

933175100 thumbnail

Part no. : 933175100

5 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-6mm Angled Cable Entry, IP67 (ELWIKA 5012 PG9)

933176100 thumbnail

Part no. : 933176100

5 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 6-8mm Angled Cable Entry, IP67 (ELWIKA 5012 PG9)

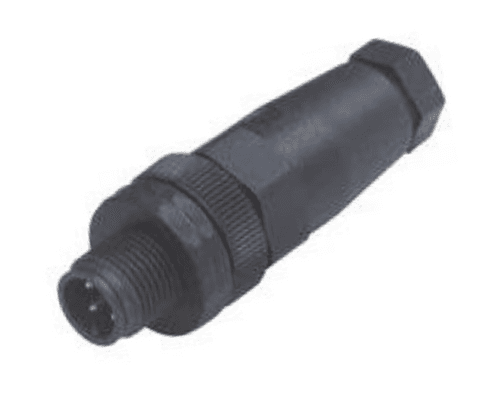

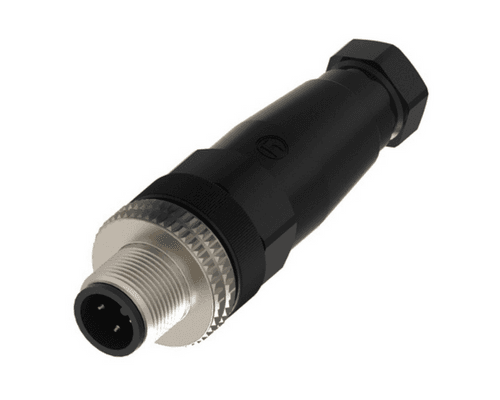

933098100 thumbnail

Part no. : 933098100

4 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-6mm Straight Cable Entry, IP67 (ELST 4012 PG7)

933727100 thumbnail

Part no. : 933727100

4 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-6mm Straight Cable Entry, IP67 (ELST 4012 K PG7)

933162100 thumbnail

Part no. : 933162100

4 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, IP67 (ELST 4012 PG9)

933163100 thumbnail

Part no. : 933163100

5 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-6mm Straight Cable Entry, IP67 (ELST 5012 PG7)

933164100 thumbnail

Part no. : 933164100

5 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, IP67 (ELST 5012 PG9)

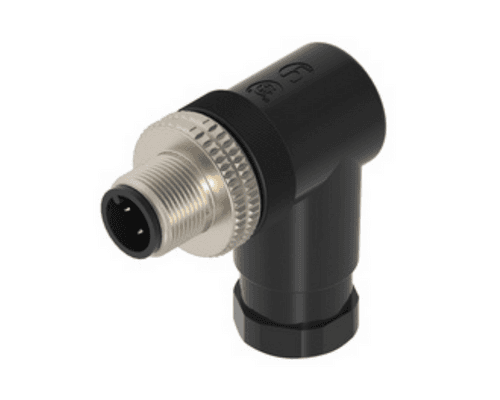

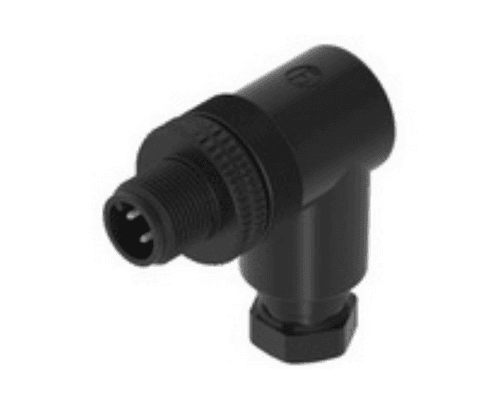

933165100 thumbnail

Part no. : 933165100

4 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-6mm Angled Cable Entry, IP67 (ELWIST 4012 PG7)

933728100 thumbnail

Part no. : 933728100

4 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-6mm Angled Cable Entry, IP67 (ELWIST 4012 K PG7)

933166100 thumbnail

Part no. : 933166100

4 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 6-8mm Angled Cable Entry, IP67 (ELWIST 4012 PG9)

933167100 thumbnail

Part no. : 933167100

5 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-6mm Angled Cable Entry, IP67 (ELWIST 5012 PG7)

933168100 thumbnail

Part no. : 933168100

5 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 6-8mm Angled Cable Entry, IP67 (ELWIST 5012 PG9)
