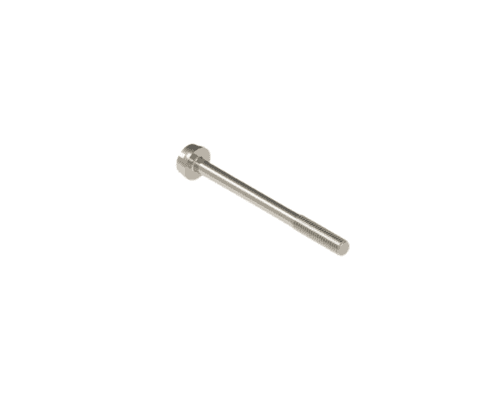

Replacement Locking Screw for Type-A Cable Connector, Stainless Steel Philips Combi Slot (GDM 3011 RF-1)
High-quality products for the automation industry, delivered at great value
Robust multi-pin rectangular connector system with industry standard EN 175301-803 (formerly DIN 43650) central screw locking interface.
GDM connectors offer pin-counts of 3 (2+PE) and 4 (3+PE) with a current carrying capacity of up to 16A per contact.
The series caters for cable OD’s of up to 14mm, has a wire gauge max. of 2.50mm² and is capable of offering IP65 ingress protection in mated state.
These connectors are designed to meet the harsh demands of hard practical day-to-day work in every form. They are square or rectangular in shape and are commonly used on pneumatic, electro-magnetic and hydraulic actuators.
Various components can be built into the housings of the GDM series connectors in instances where they have not been integrated into the application, including:
Often used in industrial environments, the Hirschmann GDM series is available in the three shell sizes A, B and C. These each include crimp, screw and solder termination.
As the long-standing series has evolved over the years so have the choice of profiles. Type-A connectors have just the one interface whereas Type-B and C have two standards/pin spacing options;
Type-A
EN 175301-803-A Standard (formerly DIN 43650)
Type-B
EN 175301-803-B Standard (formerly DIN 43650). Often referred to as 10mm pin spacing type.
Type-B
Industrial Standard (formerly NEMA standard). Often referred to as 11mm pin spacing type.
Type-C
EN 175301-803-C Standard (formerly DIN 43650). Often referred to as 8mm pin spacing type.
Type-C
Industrial Standard (formerly NEMA standard). Often referred to as 9.4mm pin spacing type.
A number of electronic components, including LED function indicators and rectifiers, are also available for the connectors, as well as the basic 2+PE an 3+PE field attachable versions.
Among the key features of these products are:
For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.
