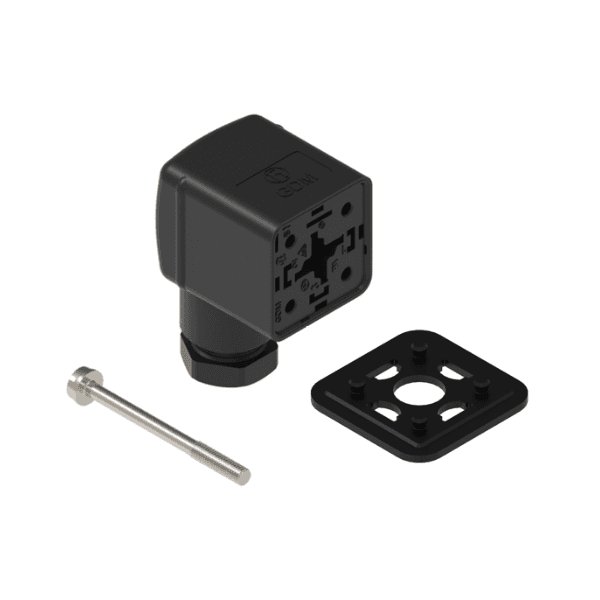

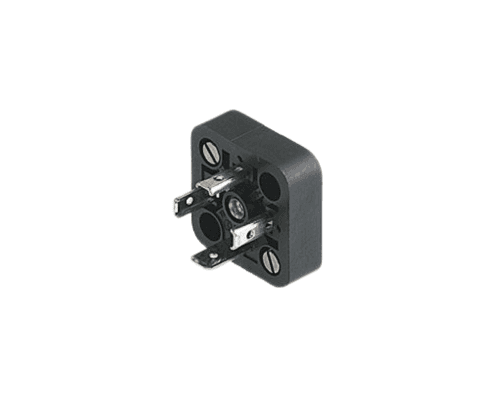

These connectors are designed to meet the harsh demands of hard practical day-to-day work in every form. They are square or rectangular in shape and are commonly used on pneumatic, electro-magnetic and hydraulic actuators.

Various components can be built into the housings of the GDM series connectors in instances where they have not been integrated into the application, including:

• Optical status displays
• Rectifiers
• Protective elements

Often used in industrial environments, the Hirschmann GDM series is available in the three shell sizes A, B and C. These each include crimp, screw and solder termination.

As the long-standing series has evolved over the years so have the choice of profiles. Type-A connectors have just the one interface whereas Type-B and C have two standards/pin spacing options;

Type-A
EN 175301-803-A Standard (formerly DIN 43650)

Type-B
EN 175301-803-B Standard (formerly DIN 43650). Often referred to as 10mm pin spacing type.

Type-B
Industrial Standard (formerly NEMA standard). Often referred to as 11mm pin spacing type.

Type-C
EN 175301-803-C Standard (formerly DIN 43650). Often referred to as 8mm pin spacing type.

Type-C
Industrial Standard (formerly NEMA standard). Often referred to as 9.4mm pin spacing type.

A number of electronic components, including LED function indicators and rectifiers, are also available for the connectors, as well as the basic 2+PE an 3+PE field attachable versions.

Among the key features of these products are:

• 3 & 4 pin variants (including PE)
• Voltages up to 400V (type A), 250V (types B, C) & currents up to 16A

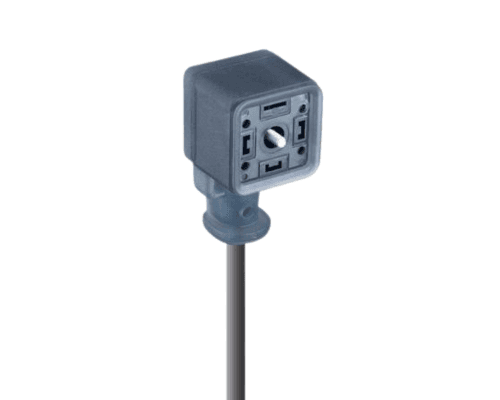

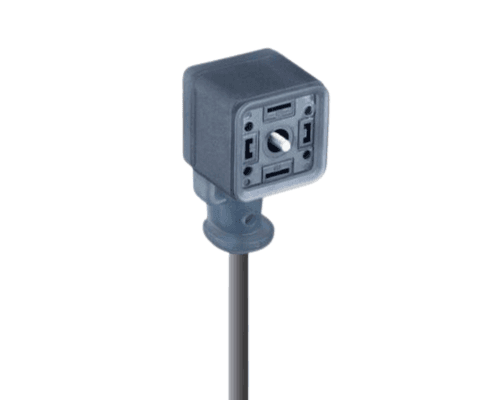

• Moulded and field attachable variations

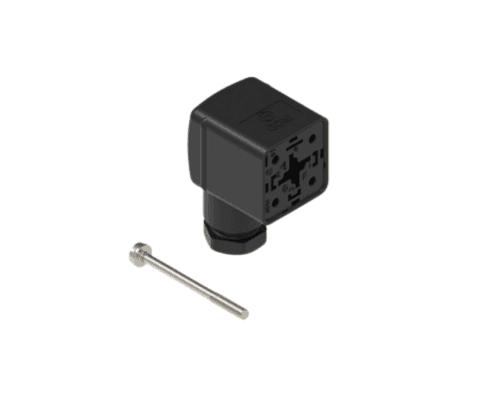

• Large cable connection space, plus simple assembly
• International approvals VDE, UL, CSA, GL

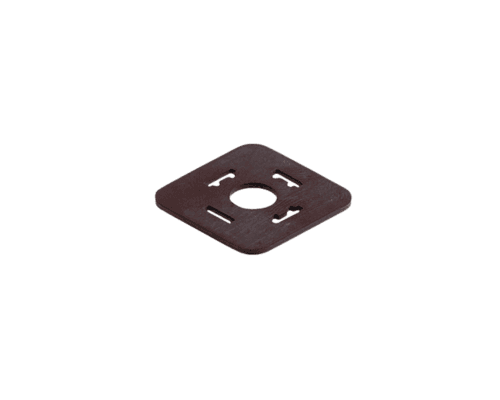

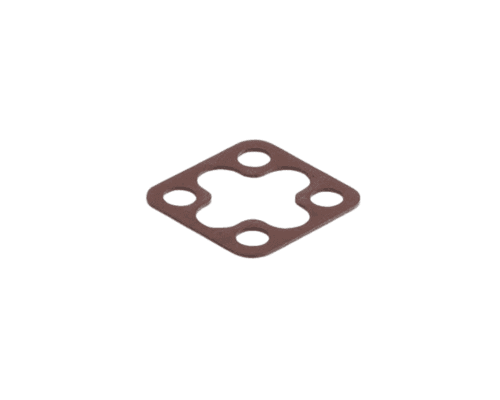

• Various connection possibilities

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.
