3328 020 2002 005

HARTING / T1 Industrial Series

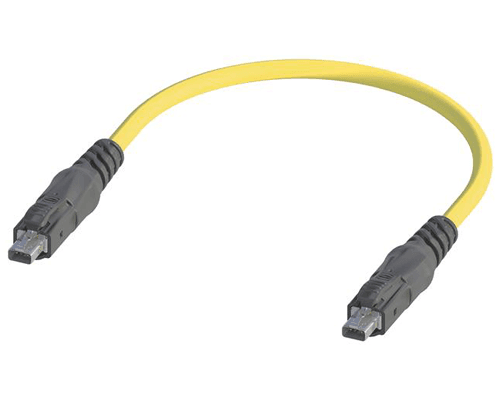

2 Way T1 Cable Assembly, Straight Male to Straight Male, 0.5m Shielded Cable with Yellow PUR Jacket, IP20

Image may be representative of a range of products, see literature to confirm

Available Downloads

Technical Specification

Part Number3328 020 2002 005

Product TypeCable Assembly

BrandHarting

Connector SeriesT1 Industrial

Cable Assembly TypeDouble Ended

Cable Jacket ColourYellow

Cable Jacket MaterialPUR

Cable Length0.5m

Cable Operating Temperature-40 to +80°C (fixed), -25 to +80°C (flex)

Conductor Gauge22 Awg

Connector Operating Temperature-40 to +80°C

Connector Type 12 Way Male

Connector Type 22 Way Male

Contact PlatingGold

Coupling Area MaterialMetal

Current Rating4A

Voltage Rating60V

Degree of Ingress ProtectionIP20

EMC ShieldYes

Gender of InsertMale, Male

Housing MaterialPlastic

Keyway/Coding TypeStandard

Locking SystemLatch

Min. Mechanical Mating Cycles1000

Number of Conductors2

Shell TypeCable Connector

About this Series

German-engineered industrial connectors and components, utilising industry-leading interconnect technology

In brief:

Compact rectangular connector system with industry standard IEC 63171-6 latch locking interface.

T1 Industrial® single pair ethernet connectors are available in a 2 way format with a transmission speed of up to 10 Gbit per second and a current carrying capacity of up to 4A per contact.

The series caters for cable OD’s of up to 6mm, has a wire gauge max. of 0.32mm² and is capable of offering IP20 ingress protection in mated state.

HARTING T1 Industrial is more than just a new connector – and single-pair Ethernet (SPE) is more than just a new cable.

The internationally standardised mating face is part of a complete system for TCP/IP-based connection of sensors to Ethernet networks.

Conceptually designed for high bandwidths for data rates from 10 Mbit/s to gigabit SPE and demanding industrial environments within Integrated Industry.

This means that SPE can offer the necessary infrastructure for the entire IIoT ecosystem.

Single-pair Ethernet (SPE) is an ideal medium for making the field level “intelligent”, i.e. ensuring the implementation of TCP/IP-based communication right into the sensor/actuator network. This makes Integrated Industry possible, which uses continuous barrier-free communication from the sensor to the cloud.

Device technology and sensor technology are getting smaller and smaller. With the new SPE interface – standardised according to IEC 63171-6 (previously IEC61076-3-125) –, HARTING offers a solution to the challenges of miniaturisation.

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.
