HARTING T1 Industrial Series
In brief:
Compact rectangular connector system with industry standard IEC 63171-6 latch locking interface.
T1 Industrial® single pair ethernet connectors are available in a 2 way format with a transmission speed of up to 10 Gbit per second and a current carrying capacity of up to 4A per contact.
The series caters for cable OD’s of up to 6mm, has a wire gauge max. of 0.32mm² and is capable of offering IP20 ingress protection in mated state.
German-engineered industrial connectors and components, utilising industry-leading interconnect technology
Download BrochureHARTING T1 Industrial is more than just a new connector – and single-pair Ethernet (SPE) is more than just a new cable.
The internationally standardised mating face is part of a complete system for TCP/IP-based connection of sensors to Ethernet networks.
Conceptually designed for high bandwidths for data rates from 10 Mbit/s to gigabit SPE and demanding industrial environments within Integrated Industry.
This means that SPE can offer the necessary infrastructure for the entire IIoT ecosystem.
Single-pair Ethernet (SPE) is an ideal medium for making the field level “intelligent”, i.e. ensuring the implementation of TCP/IP-based communication right into the sensor/actuator network. This makes Integrated Industry possible, which uses continuous barrier-free communication from the sensor to the cloud.
Device technology and sensor technology are getting smaller and smaller. With the new SPE interface – standardised according to IEC 63171-6 (previously IEC61076-3-125) –, HARTING offers a solution to the challenges of miniaturisation.
For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please click the 'Quick Quote' button and complete the form or simply call us on 01744 815001.
We have many products in this series, find what you need using the filters below
16 products match your criteria:
Part no. : 0945 181 2810 XL

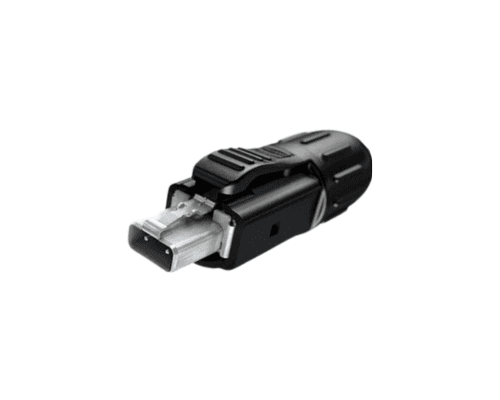

2 Way T1 Male Cable Connector for Pin Contacts, 4.5-6mm Cable Entry, Shieldable, IP20
Part no. : 0945 281 2810

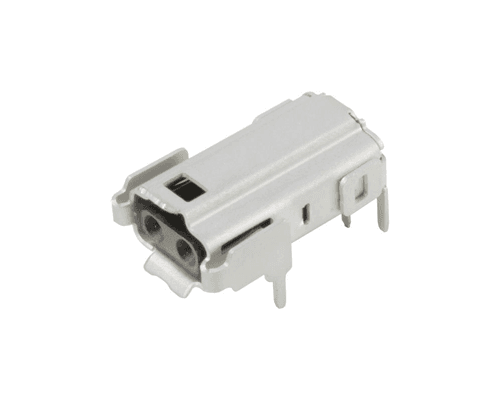

2 Way T1 Female Angled Board Connector with Reflow Solder Contacts, IP20
Part no. : 0945 500 2810

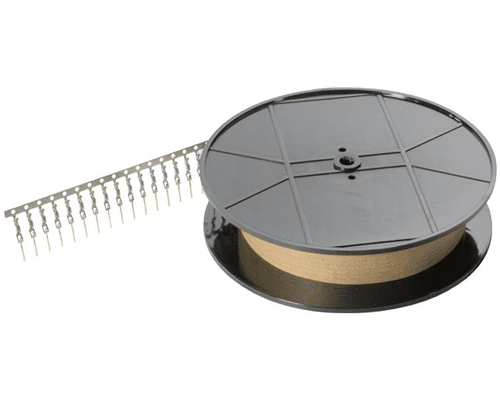

500 Piece Reel of Crimp Pin Contacts, Stamped & Formed Construction, 0.08-0.12mm²
Part no. : 0945 500 2812
500 Piece Reel of Crimp Pin Contacts, Stamped & Formed Construction, 0.22-0.32mm²
Part no. : 0945 800 2810

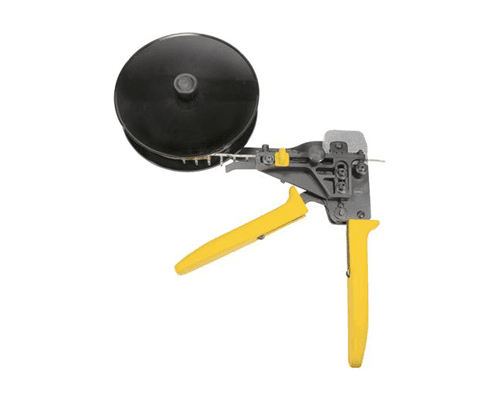

Crimp Tool for Reeled Stamped & Formed Contacts
Part no. : 0945 800 2811
Crimp Tool for Reeled Stamped & Formed Contacts
Part no. : 3328 020 2001 005

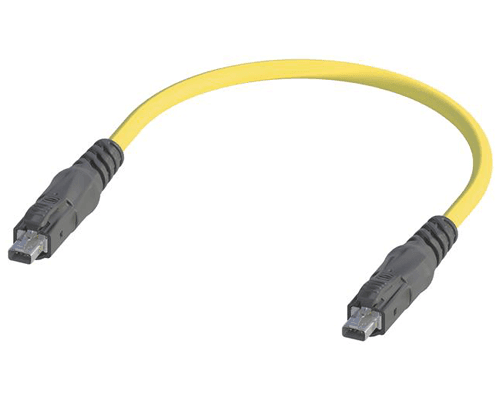

2 Way T1 Cable Assembly, Straight Male to Straight Male, 0.5m Shielded Cable with Yellow PUR Jacket, IP20
Part no. : 3328 020 2001 010
2 Way T1 Cable Assembly, Straight Male to Straight Male, 1m Shielded Cable with Yellow PUR Jacket, IP20
Part no. : 3328 020 2001 020
2 Way T1 Cable Assembly, Straight Male to Straight Male, 2m Shielded Cable with Yellow PUR Jacket, IP20
Part no. : 3328 020 2001 050
2 Way T1 Cable Assembly, Straight Male to Straight Male, 5m Shielded Cable with Yellow PUR Jacket, IP20
Part no. : 3328 020 2001 100
2 Way T1 Cable Assembly, Straight Male to Straight Male, 10m Shielded Cable with Yellow PUR Jacket, IP20
Part no. : 3328 020 2002 005
2 Way T1 Cable Assembly, Straight Male to Straight Male, 0.5m Shielded Cable with Yellow PUR Jacket, IP20
Part no. : 3328 020 2002 010
2 Way T1 Cable Assembly, Straight Male to Straight Male, 1m Shielded Cable with Yellow PUR Jacket, IP20
Part no. : 3328 020 2002 020
2 Way T1 Cable Assembly, Straight Male to Straight Male, 2m Shielded Cable with Yellow PUR Jacket, IP20
Part no. : 3328 020 2002 050
2 Way T1 Cable Assembly, Straight Male to Straight Male, 5m Shielded Cable with Yellow PUR Jacket, IP20
Part no. : 3328 020 2002 100
2 Way T1 Cable Assembly, Straight Male to Straight Male, 10m Shielded Cable with Yellow PUR Jacket, IP20
