99-1721-002-12

binder / Snap-in ELC (570 Medical Application Series)

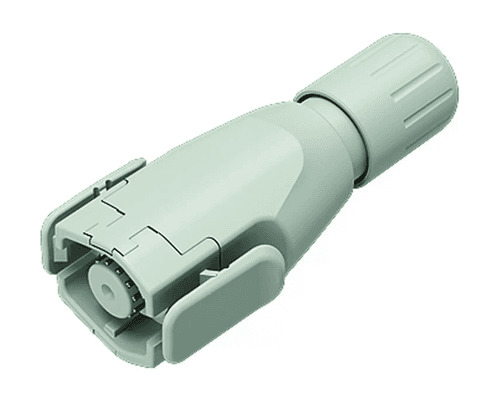

12 Way ELC Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, IP54

Image may be representative of a range of products, see literature to confirm

Available Downloads

Technical Specification

Part Number99-1721-002-12

Product TypeConnector

Brandbinder

Connector SeriesSnap-in ELC (570 Medical Application Series)

Backshell IncludedYes

Body OrientationStraight

Connector Type 1Cable Connector

Contact PlatingGold

Contacts IncludedYes

Coupling Area MaterialPlastic

Current Rating2A

Voltage Rating150V

Electrical NotesPolution Degree 2

Degree of Ingress ProtectionIP54

EMC Shielding CapabilityNo

Gender of InsertMale

Housing MaterialPlastic

Keyway/Coding TypeStandard

Locking SystemLatch

Min. Mechanical Mating Cycles5000

Max. Wire Gauge/Cross-Sectional Area0.25mm²

Min. Cable Entry (mm)4

Max. Cable Entry (mm)6

Number of Ways12

Operating Temperature-25°C to 85°C

Positive Earth (PE)No

Termination Method/TechnologySolder

About this Series

Robust and compact circular connectors from one of the industry’s most trusted brands

In brief:

Robust multi-pin rectangular connector system with latch locking mechanism.

Snap-in ELC connectors are available in a 12 way format with a current carrying capacity of up to 2A per contact.

The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 0.25mm² and is capable of offering IP54 ingress protection in mated state.

The ELC Series 570 features a unique snap-in locking system that ensures more than 5000 mating operations, meeting the requirements of many medical device OEMs.

The connector has a PA66 plastic housing in grey-white, similar to RAL 9002, 4/8/12 gold-plated contacts for a connection cross section of 0.25 mm² and is designed for a rated current of 2A at 150V.

When unplugged, the flange socket is protected against the ingress of liquids, splashing water and accidental electrical contact.

When plugged in, the ELC connector has protection class IP54.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
