binder Snap-in ELC (570 Medical Application Series)

In brief:

Robust multi-pin rectangular connector system with latch locking mechanism.

Snap-in ELC connectors are available in a 12 way format with a current carrying capacity of up to 2A per contact.

The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 0.25mm² and is capable of offering IP54 ingress protection in mated state.

binder connectors

Robust and compact circular connectors from one of the industry’s most trusted brands

DownloadDownload Brochure

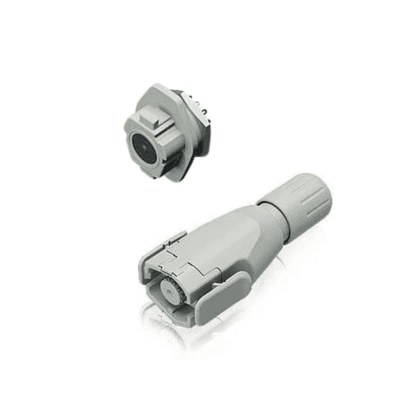

The ELC Series 570 features a unique snap-in locking system that ensures more than 5000 mating operations, meeting the requirements of many medical device OEMs.

The connector has a PA66 plastic housing in grey-white, similar to RAL 9002, 4/8/12 gold-plated contacts for a connection cross section of 0.25 mm² and is designed for a rated current of 2A at 150V.

When unplugged, the flange socket is protected against the ingress of liquids, splashing water and accidental electrical contact.

When plugged in, the ELC connector has protection class IP54.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001

We have many products in this series, find what you need using the filters below

8 products match your criteria:

99-1721-002-12 thumbnail

Part no. : 99-1721-002-12

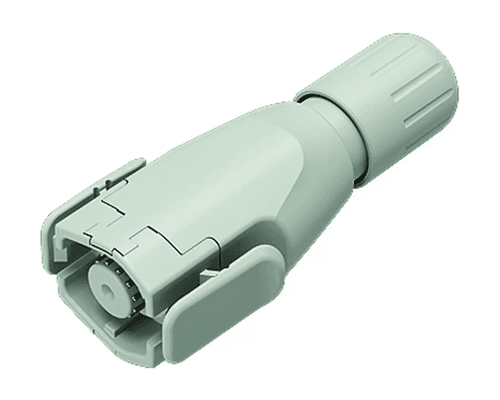

12 Way ELC Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, IP54

99-1721-000-12 thumbnail

Part no. : 99-1721-000-12

12 Way ELC Male Cable Connector with Solder Contacts, 6-8mm Straight Cable Entry, IP54

09-1724-000-12 thumbnail

Part no. : 09-1724-000-12

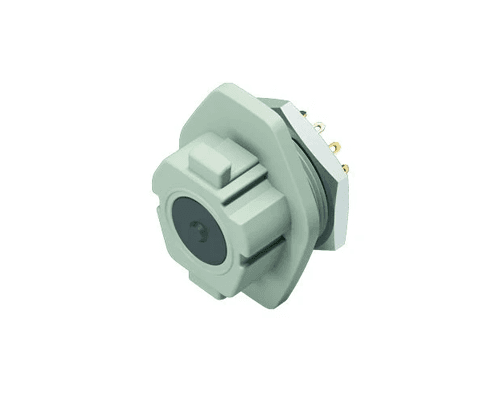

12 Way ELC Female Jam-Nut Panel Connector with Solder Contacts, IP54

99-1721-102-12 thumbnail

Part no. : 99-1721-102-12

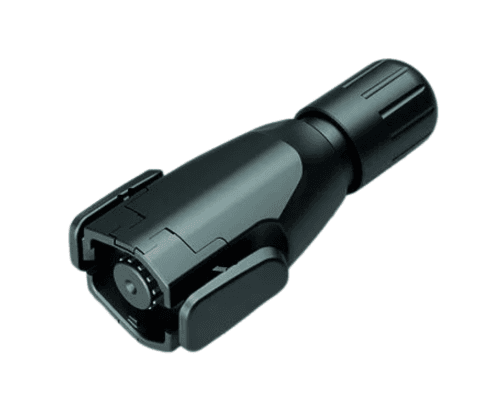

12 Way ELC Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Black Version, IP54

99-1721-100-12 thumbnail

Part no. : 99-1721-100-12

12 Way ELC Male Cable Connector with Solder Contacts, 6-8mm Straight Cable Entry, Black Version, IP54

09-1724-100-12 thumbnail

Part no. : 09-1724-100-12

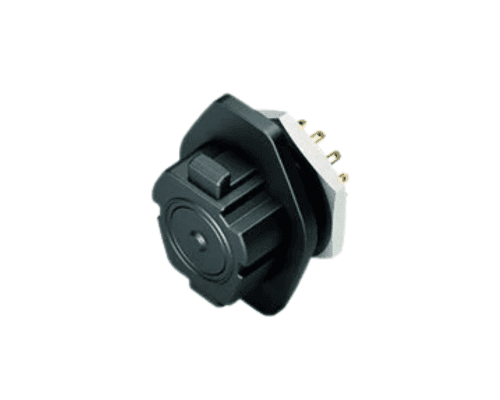

12 Way ELC Female Jam-Nut Panel Connector with Solder Contacts, Black Version, IP54

07-0003-000 thumbnail

Part no. : 07-0003-000

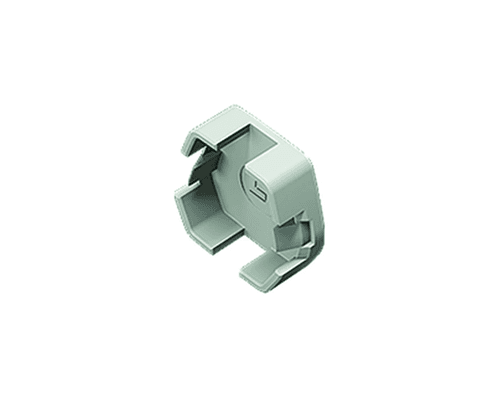

Assembly Tool

16-0334-000 thumbnail

Part no. : 16-0334-000

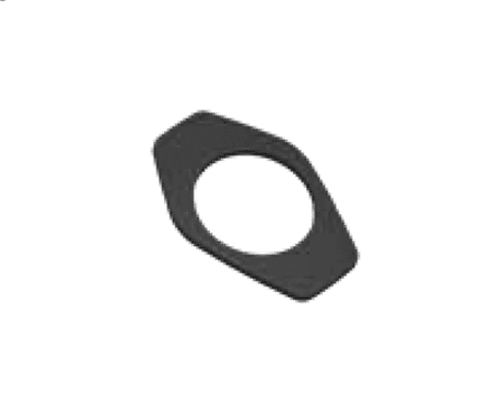

Flat Gasket for Panel Connector
