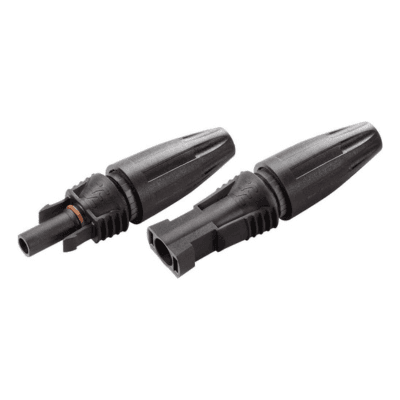

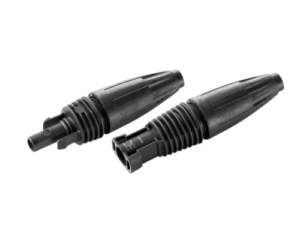

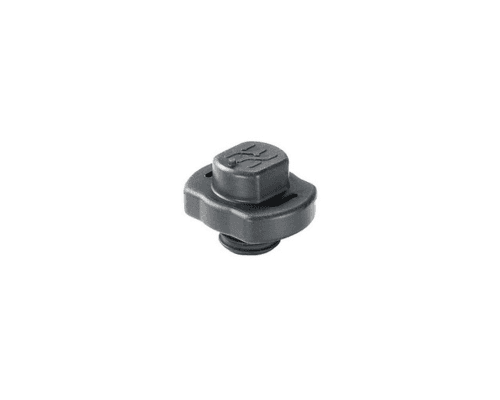

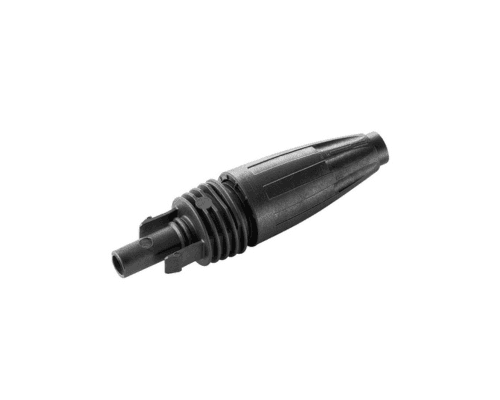

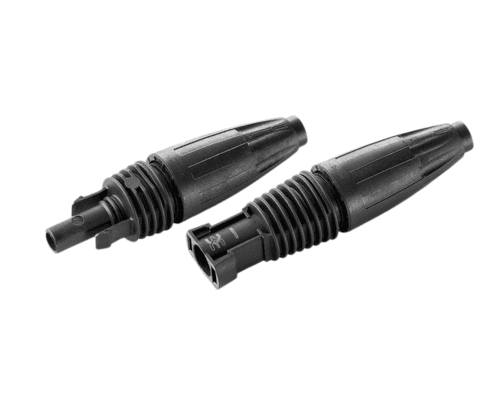

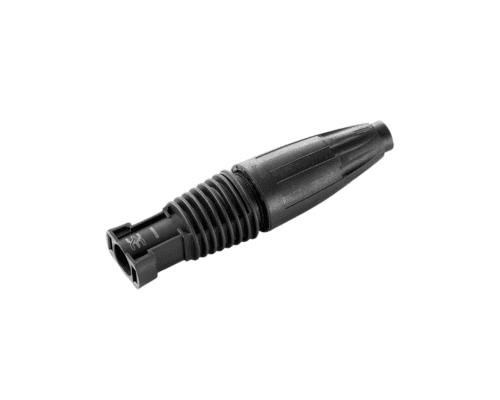

Weidmüller PV-Stick Connector Series

No crimping tool, no lost time, no extra effort – the unique PV-Stick uses tried & tested SNAP-IN wire technology. The fastest, easiest and safest way to wire up photovoltaic plants – literally in no time.

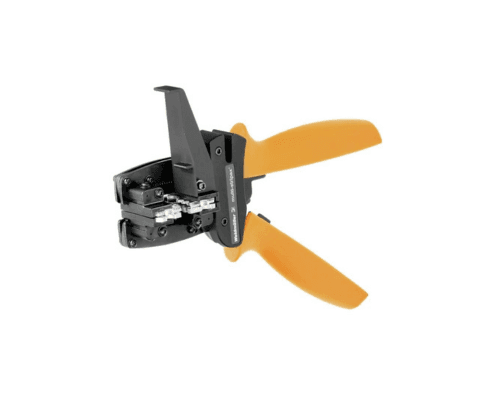

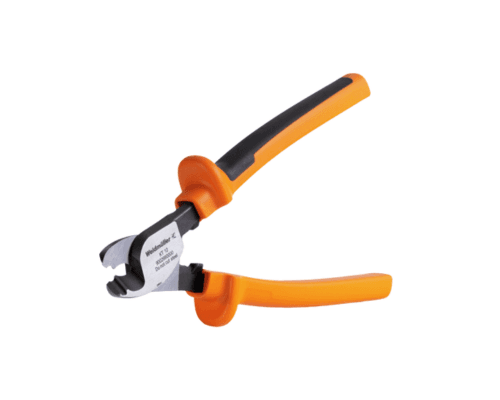

Simply insert the stripped photovoltaic conductor – you don’t need a wire end ferrule.

As soon as you hear a “click”, the parts have safely made contact.

Then turn the screw cover cap a few times to tighten it. Done!

Product advantages

• No crimp contact or tools required to terminate the wire with SNAP-IN wire technology
• Fast & easy installation without assembly errors
• TÜV-tested & approved according to IEC 62852

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001

• No. of Contacts: 1
• Locking Mechanism: Latch
• Contact Termination: SNAP-IN
• Wire Gauge Max: 6.00mm²
• Cable Diameter Range: 5.4-7.6mm
• Connector Types: Cable to Cable
• Max. Voltage: 1,500V
• Max. Current: 30A
• Ingress Protection Max: IP65, IP67, IP68
• Pre-wired Options: No

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

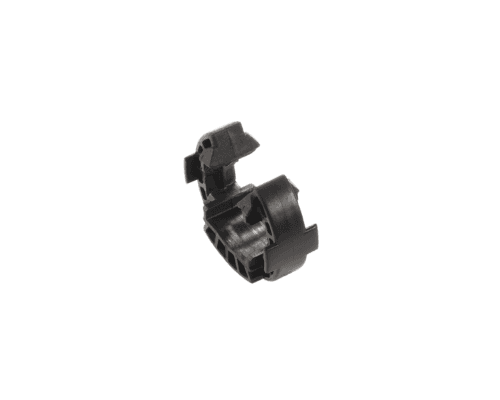

Additional accessories may also be required to maintain IP rating in some instances
