Weidmüller OMNIMATE® 4.0 Signal Series

Weidmuller OMNIMATE 4.0 Signal Series - Industrial Connectors from Northern Connectors

In brief:

Compact 5.00 Pitch PCB connector system with push-fit or latch locking mechanism.

OMNIMATE® 4.0 Signal connectors offer pin-counts from 2 to 12 with a current carrying capacity of up to 26.8A per contact.

The series caters for wire & board connections, has a wire gauge max. of 4.00mm² and is capable of offering IP20 ingress protection in mated state.

Offering high-quality connector innovations for the renewable energy, automation and aerospace sectors

Download Brochure

OMNIMATE® 4.0 - Fast. Flexible. Digital.

Ready for robot connectivity solutions for pioneers.

The demands on the development of electrical devices are constantly increasing. This leads to higher complexity and challenges device developers.

OMNIMATE® 4.0 is the efficient solution for a continuous, digitalised device development process for the connected world of tomorrow.

OMNIMATE® 4.0 combines three innovations in one:
1. Super-fast wire connection technology
2. Modular product design
3. Fastest possible delivery

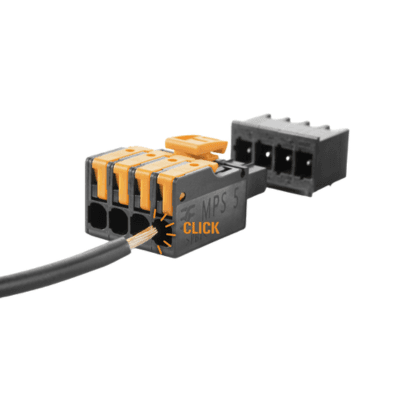

The innovative SNAP IN wire connection technology allows even flexible conductors without ferrules to be connected easily without tools. An indicator signals the secure connection both acoustically & visually.

Hearable and visible feedback
OMNIMATE® 4.0 has a visual safety indicator that gives the user direct feedback of the clamping situation. In addition to a hearable "click" the green visual safety indicator increase the security and proper wiring of the connector.

Easy and intuitive handling
The easy and one-hand usable top flange fixes the product and prevents undesired disconnection.

The tool-less re-wiring with the lever function brings handling to a new level.

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.

We have many products in this series, find what you need using the filters below

77 products match your criteria:

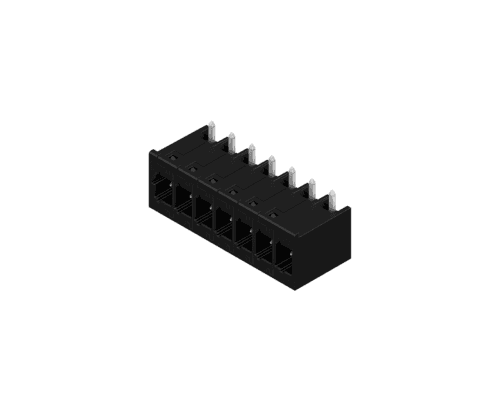

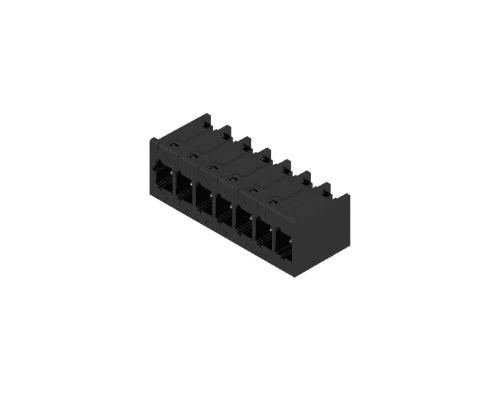

Part no. : 2741400000

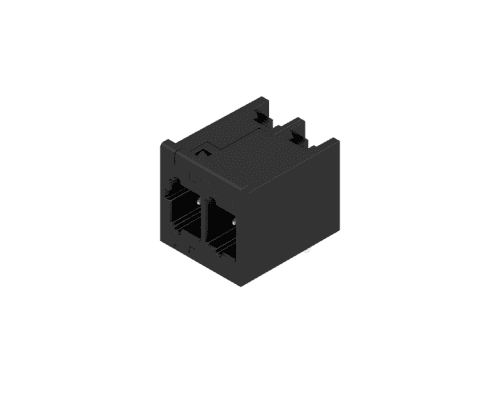

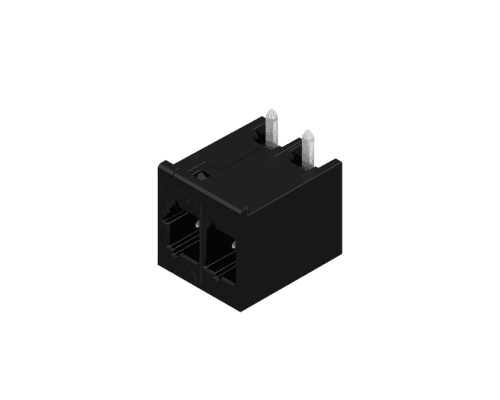

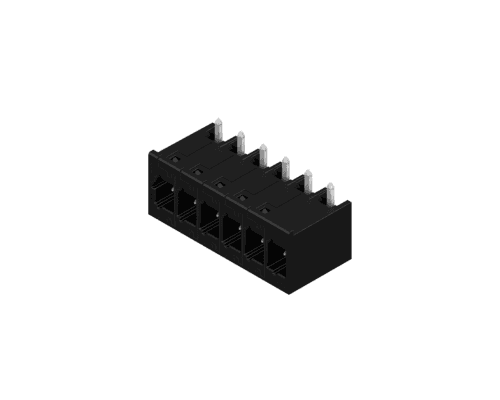

2 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/02 H T3 B T)

Part no. : 2741420000

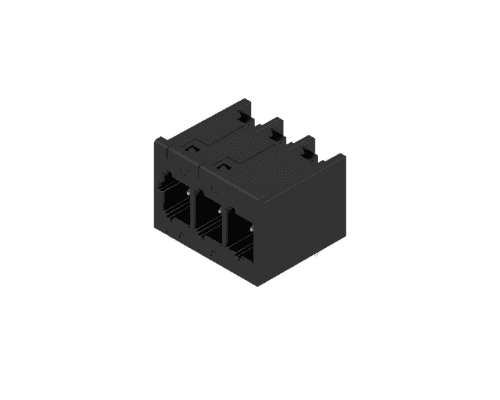

3 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/03 H T3 B T)

Part no. : 2741430000

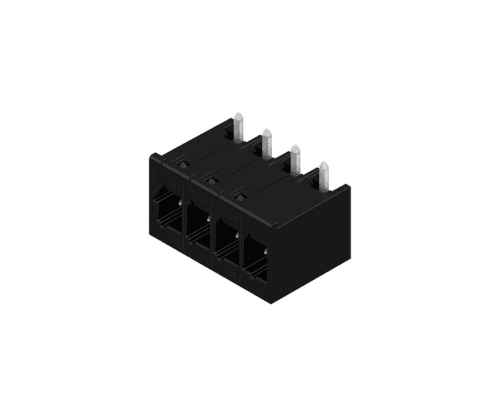

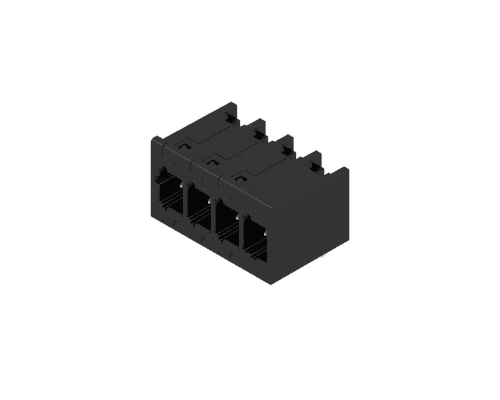

4 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/04 H T3 B T)

Part no. : 2741440000

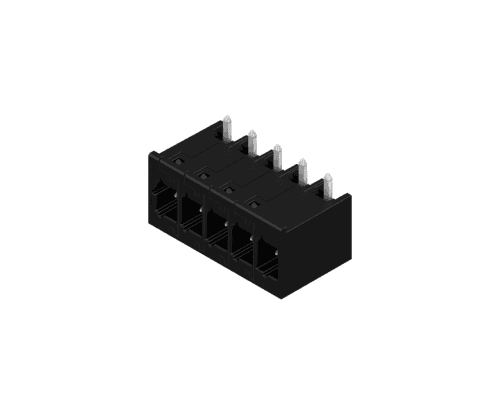

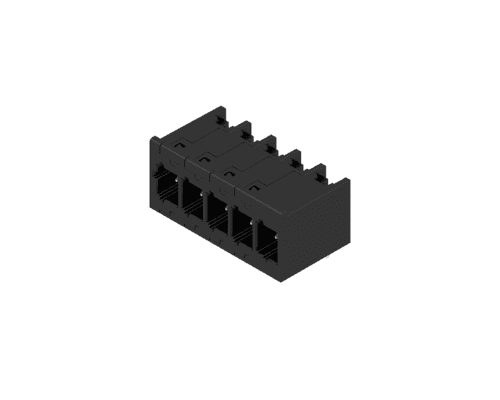

5 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/05 H T3 B T)

Part no. : 2741450000

6 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/06 H T3 B T)

Part no. : 2741460000

7 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/07 H T3 B T)

Part no. : 2741470000

8 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/08 H T3 B T)

Part no. : 2741480000

9 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/09 H T3 B T)

Part no. : 2741490000

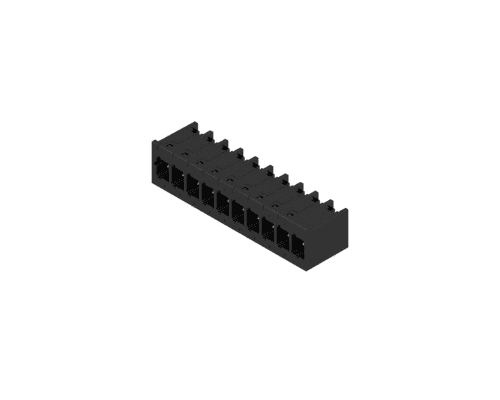

10 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/10 H T3 B T)

Part no. : 2741500000

11 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/11 H T3 B T)

Part no. : 2741510000

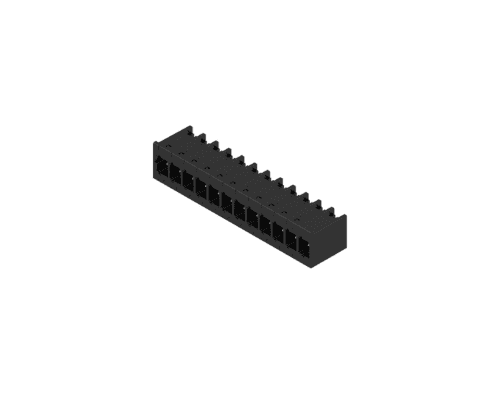

12 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/12 H T3 B T)

Part no. : 8000072425

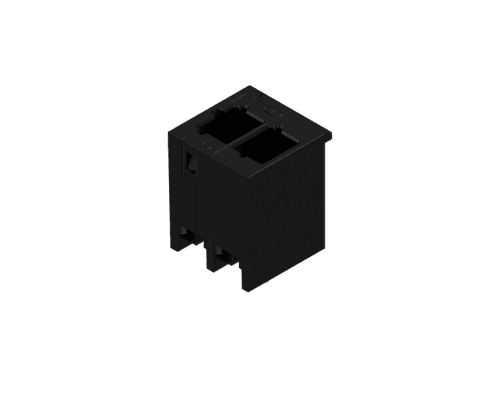

2 Way Male Board Connector with Dip-Solder Contacts, IP20 (MHS 5/02 V T3 B T)

Part no. : 8000072430

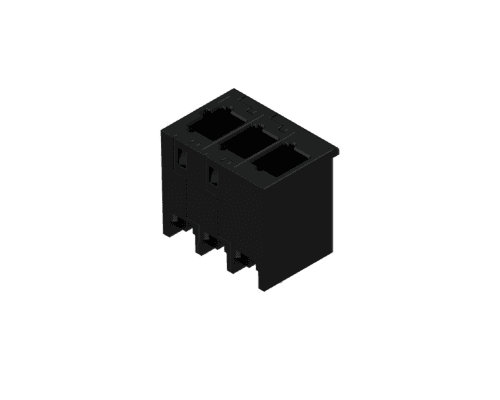

3 Way Male Board Connector with Dip-Solder Contacts, IP20 (MHS 5/03 V T3 B T)

Part no. : 8000072431

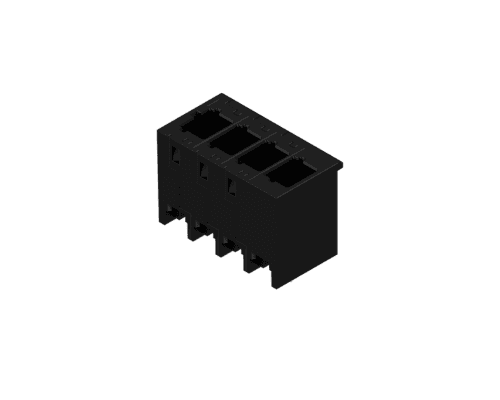

4 Way Male Board Connector with Dip-Solder Contacts, IP20 (MHS 5/04 V T3 B T)

Part no. : 8000072435

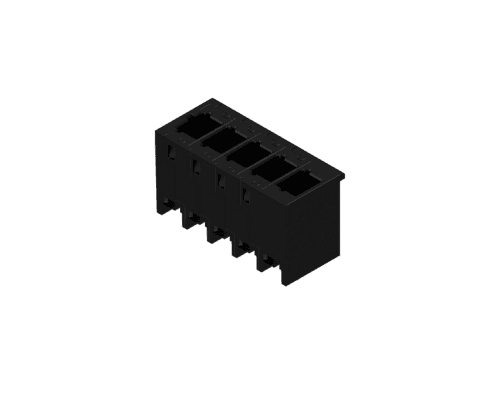

5 Way Male Board Connector with Dip-Solder Contacts, IP20 (MHS 5/05 V T3 B T)

Part no. : 8000072438

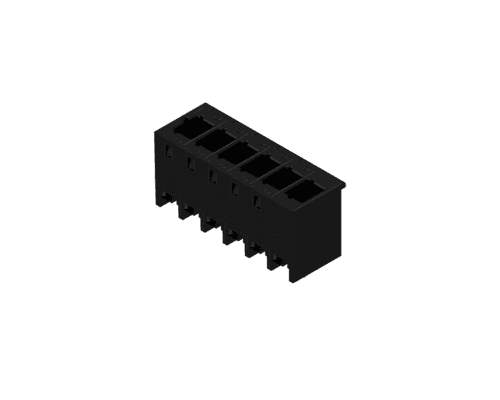

6 Way Male Board Connector with Dip-Solder Contacts, IP20 (MHS 5/06 V T3 B T)

Part no. : 8000072450

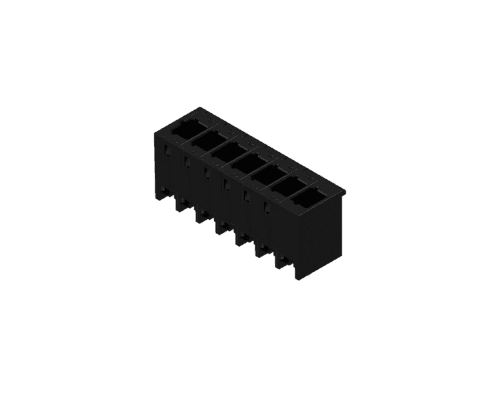

7 Way Male Board Connector with Dip-Solder Contacts, IP20 (MHS 5/07 V T3 B T)

Part no. : 8000072453

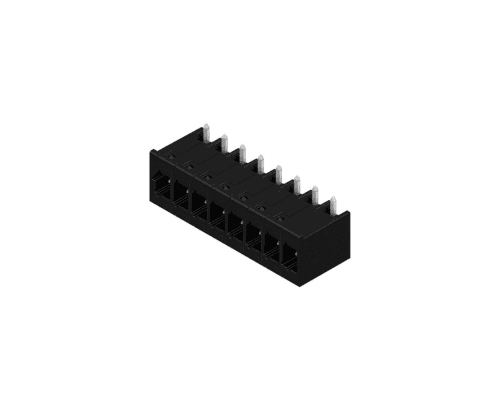

8 Way Male Board Connector with Dip-Solder Contacts, IP20 (MHS 5/08 V T3 B T)

Part no. : 8000072454

9 Way Male Board Connector with Dip-Solder Contacts, IP20 (MHS 5/09 V T3 B T)

Part no. : 8000072456

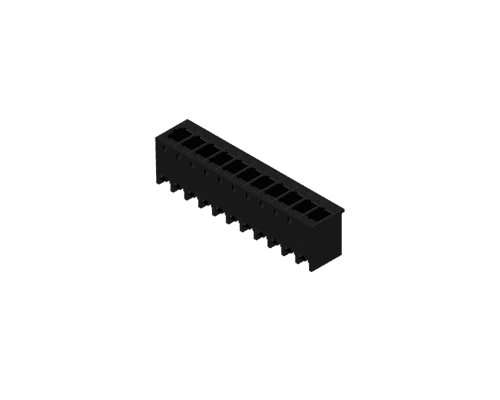

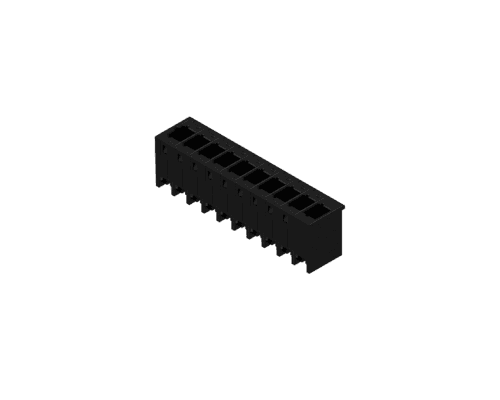

10 Way Male Board Connector with Dip-Solder Contacts, IP20 (MHS 5/10 V T3 B T)

Part no. : 8000072461

11 Way Male Board Connector with Dip-Solder Contacts, IP20 (MHS 5/11 V T3 B T)

Part no. : 8000072470

12 Way Male Board Connector with Dip-Solder Contacts, IP20 (MHS 5/12 V T3 B T)

Part no. : 8000072497

2 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/02 W T3 B T)

Part no. : 8000072503

3 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/03 W T3 B T)

Part no. : 8000072506

4 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/04 W T3 B T)

Part no. : 8000072508

5 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/05 W T3 B T)

Part no. : 8000072509

6 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/06 W T3 B T)

Part no. : 8000072510

7 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/07 W T3 B T)

Part no. : 8000072511

8 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/08 W T3 B T)

Part no. : 8000072512

9 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/09 W T3 B T)

Part no. : 8000072513

10 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/10 W T3 B T)

Part no. : 8000072514

11 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/11 W T3 B T)

Part no. : 8000072515

12 Way Male Angled Board Connector with Dip-Solder Contacts, IP20 (MHS 5/12 W T3 B T)

Part no. : 2741560000

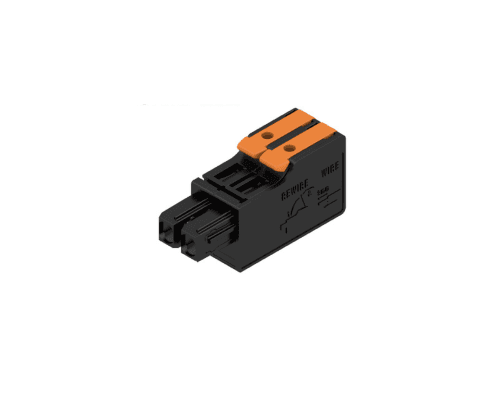

2 Way Female Cable Connector with Snap-in Contacts, IP20 (MPS 5/02 S TN B B)

Part no. : 2741570000

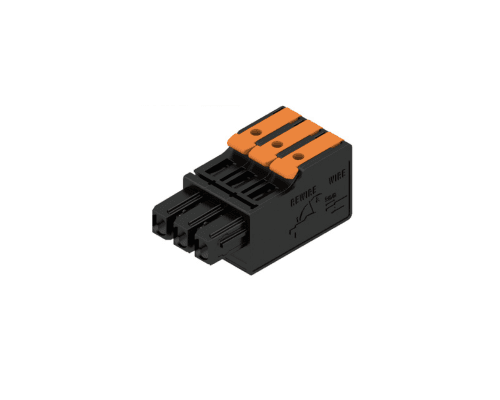

3 Way Female Cable Connector with Snap-in Contacts, IP20 (MPS 5/03 S TN B B)

Part no. : 2741580000

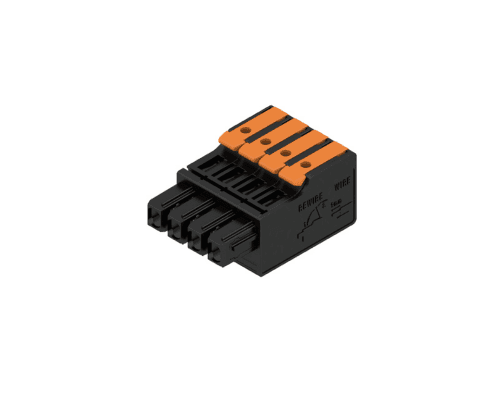

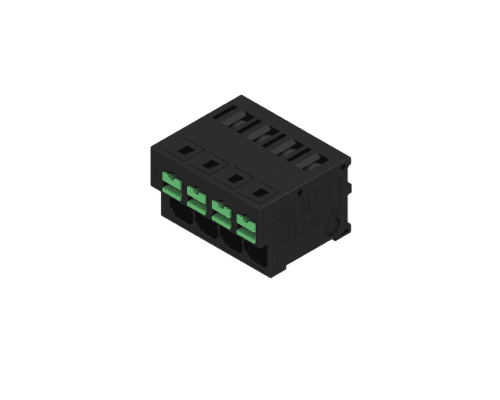

4 Way Female Cable Connector with Snap-in Contacts, IP20 (MPS 5/04 S TN B B)

Part no. : 2741590000

5 Way Female Cable Connector with Snap-in Contacts, IP20 (MPS 5/05 S TN B B)

Part no. : 2741600000

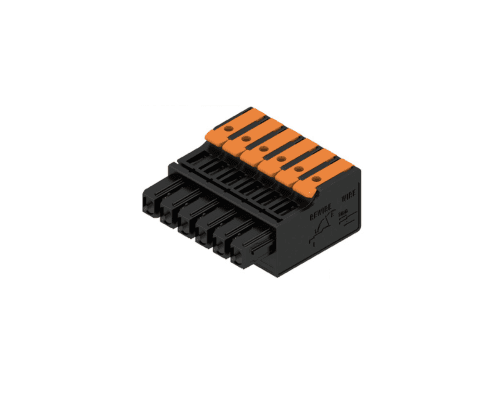

6 Way Female Cable Connector with Snap-in Contacts, IP20 (MPS 5/06 S TN B B)

Part no. : 2741610000

7 Way Female Cable Connector with Snap-in Contacts, IP20 (MPS 5/07 S TN B B)

Part no. : 2741620000

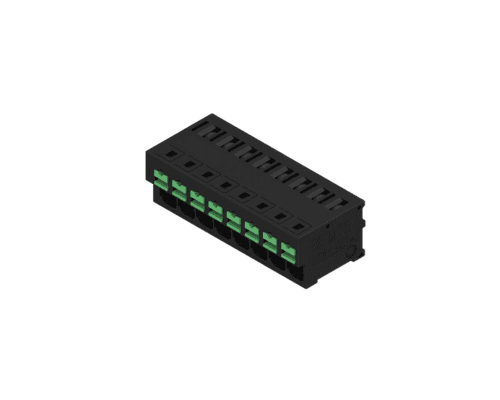

8 Way Female Cable Connector with Snap-in Contacts, IP20 (MPS 5/08 S TN B B)

Part no. : 2741630000

9 Way Female Cable Connector with Snap-in Contacts, IP20 (MPS 5/09 S TN B B)

Part no. : 2741640000

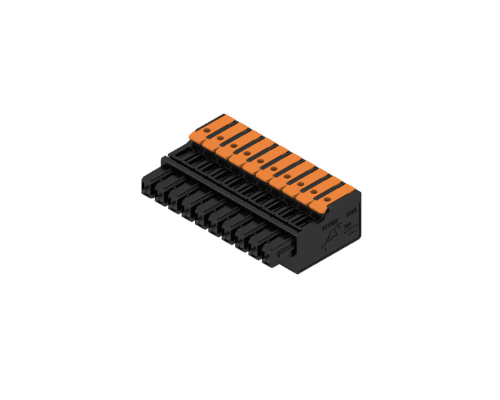

10 Way Female Cable Connector with Snap-in Contacts, IP20 (MPS 5/10 S TN B B)

Part no. : 2741650000

11 Way Female Cable Connector with Snap-in Contacts, IP20 (MPS 5/11 S TN B B)

Part no. : 2741660000

12 Way Female Cable Connector with Snap-in Contacts, IP20 (MPS 5/12 S TN B B)

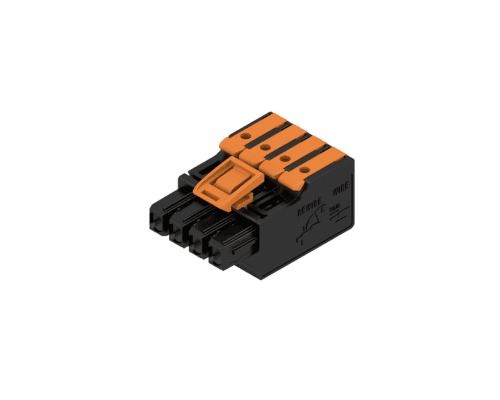

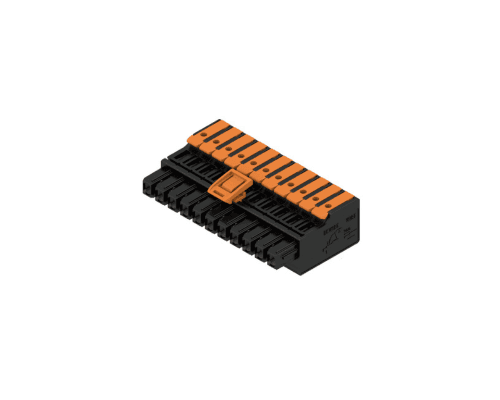

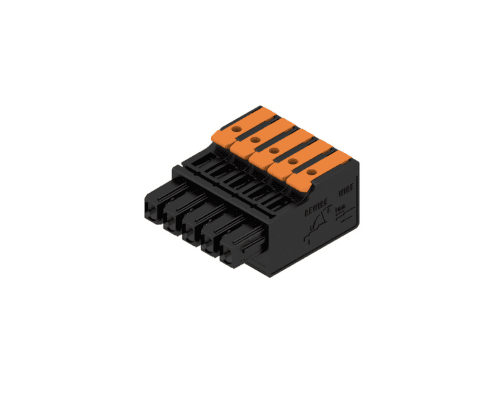

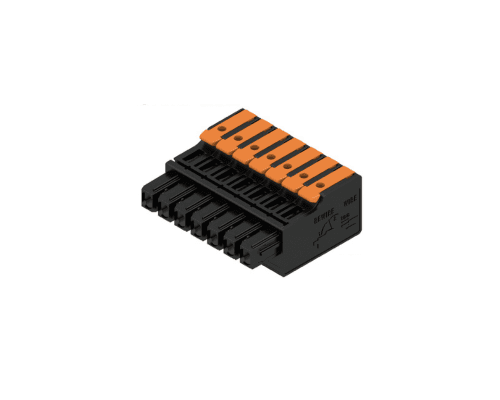

Part no. : 2741670000

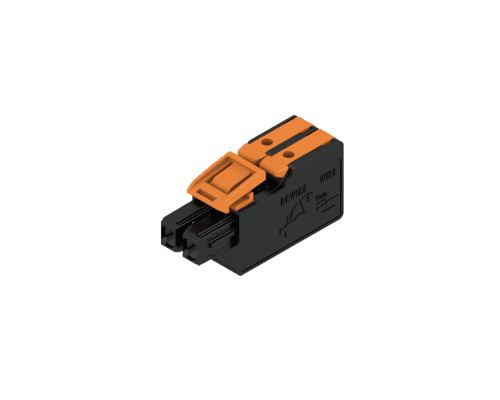

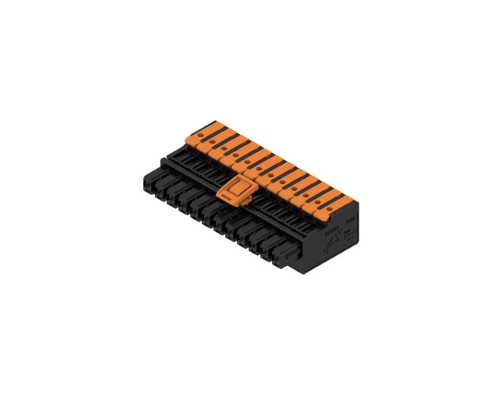

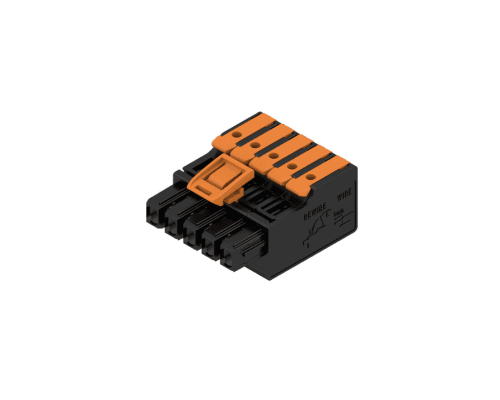

2 Way Female Cable Connector with Snap-in Contacts, with Locking Latch, IP20 (MPS 5/02 S F1 TN B B)

Part no. : 2741680000

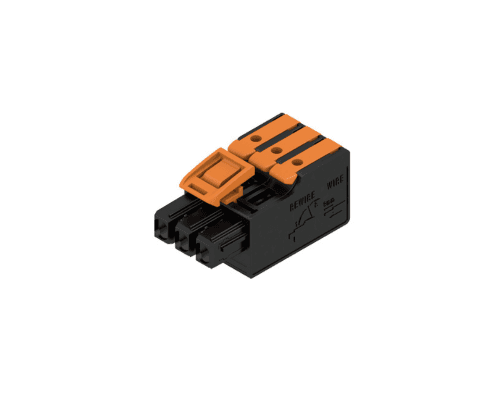

3 Way Female Cable Connector with Snap-in Contacts, with Locking Latch, IP20 (MPS 5/03 S F2 TN B B)

Part no. : 2741690000

4 Way Female Cable Connector with Snap-in Contacts, with Locking Latch, IP20 (MPS 5/04 S F2 TN B B)

Part no. : 2741700000

5 Way Female Cable Connector with Snap-in Contacts, with Locking Latch, IP20 (MPS 5/05 S F2 TN B B)

Part no. : 2741710000

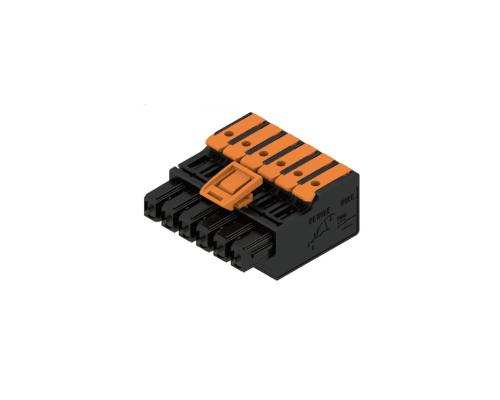

6 Way Female Cable Connector with Snap-in Contacts, with Locking Latch, IP20 (MPS 5/06 S F2 TN B B)

Part no. : 2741720000

7 Way Female Cable Connector with Snap-in Contacts, with Locking Latch, IP20 (MPS 5/07 S F2 TN B B)

Part no. : 2741730000

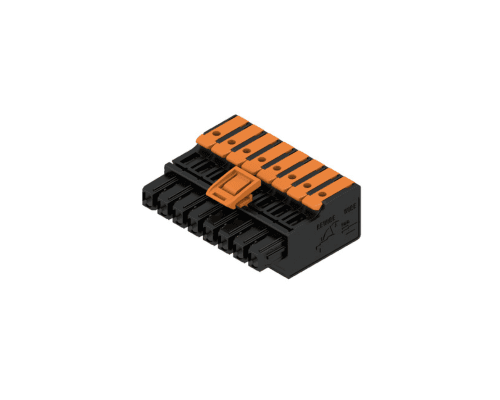

8 Way Female Cable Connector with Snap-in Contacts, with Locking Latch, IP20 (MPS 5/08 S F2 TN B B)

Part no. : 2741740000

9 Way Female Cable Connector with Snap-in Contacts, with Locking Latch, IP20 (MPS 5/09 S F2 TN B B)

Part no. : 2741750000

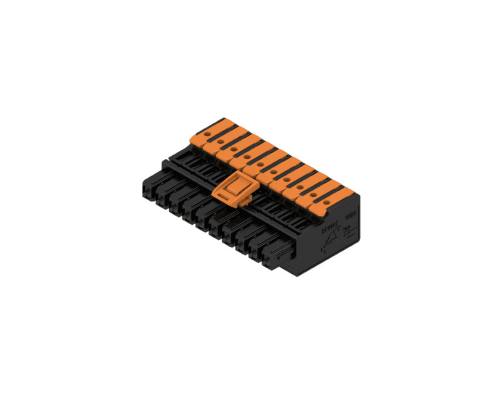

10 Way Female Cable Connector with Snap-in Contacts, with Locking Latch, IP20 (MPS 5/10 S F2 TN B B)

Part no. : 2741760000

11 Way Female Cable Connector with Snap-in Contacts, with Locking Latch, IP20 (MPS 5/11 S F2 TN B B)

Part no. : 2741770000

12 Way Female Cable Connector with Snap-in Contacts, with Locking Latch, IP20 (MPS 5/12 S F2 TN B B)

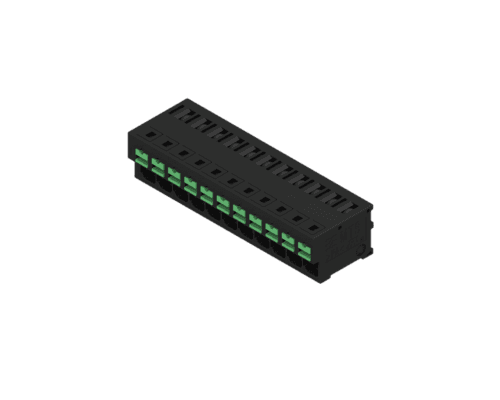

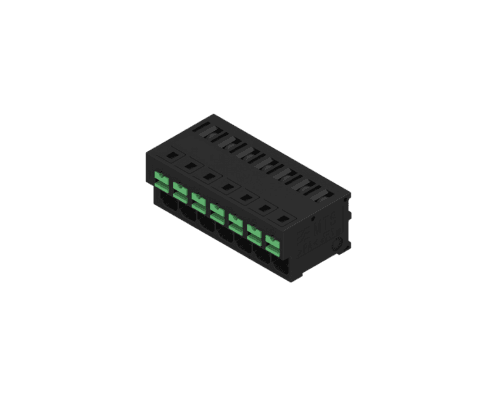

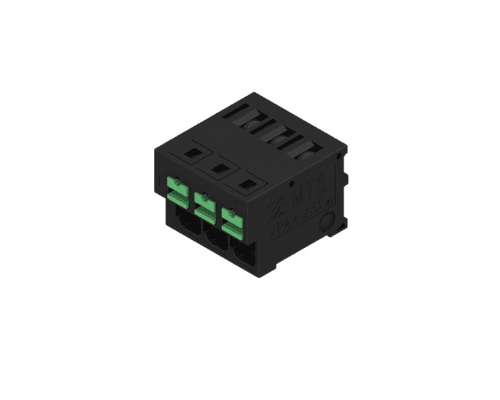

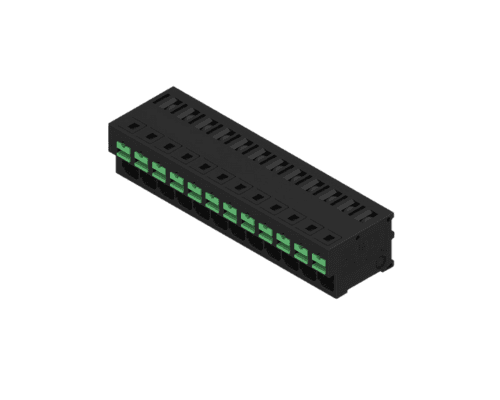

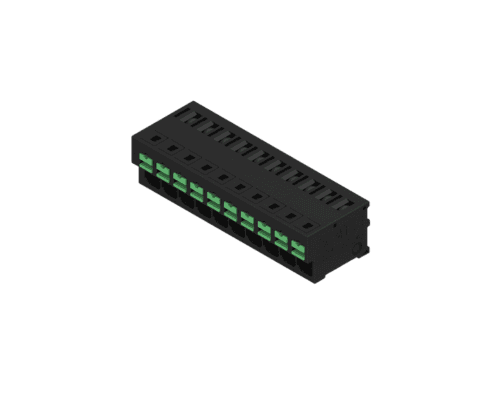

Part no. : 2913600000

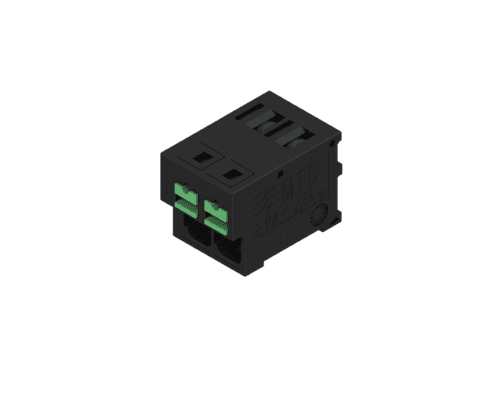

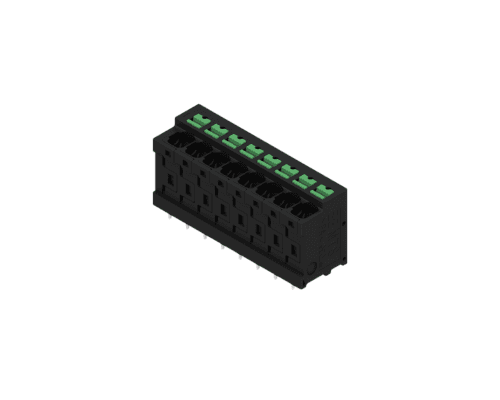

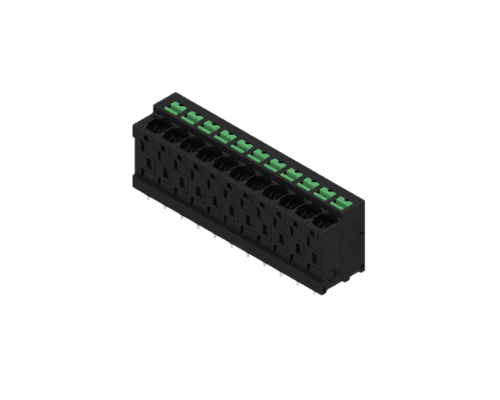

2 Way Snap-in Angled PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/02 H T4 B T)

Part no. : 2913610000

3 Way Snap-in Angled PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/03 H T4 B T)

Part no. : 2913620000

4 Way Snap-in Angled PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/04 H T4 B T)

Part no. : 2913630000

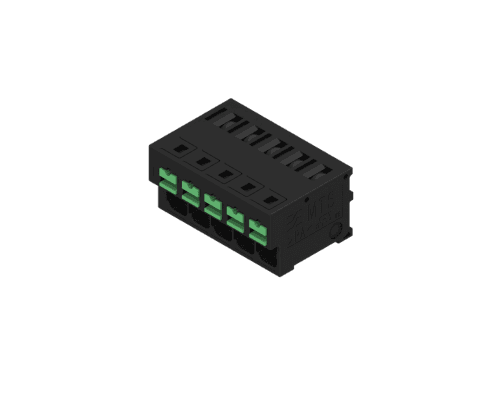

5 Way Snap-in Angled PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/05 H T4 B T)

Part no. : 2913640000

6 Way Snap-in Angled PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/06 H T4 B T)

Part no. : 2913650000

7 Way Snap-in Angled PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/07 H T4 B T)

Part no. : 2913660000

8 Way Snap-in Angled PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/08 H T4 B T)

Part no. : 2913670000

9 Way Snap-in Angled PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/09 H T4 B T)

Part no. : 2913680000

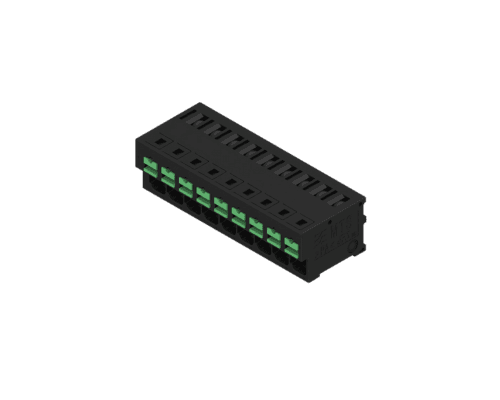

10 Way Snap-in Angled PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/10 H T4 B T)

Part no. : 2913690000

11 Way Snap-in Angled PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/11 H T4 B T)

Part no. : 2913700000

12 Way Snap-in Angled PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/12 H T4 B T)

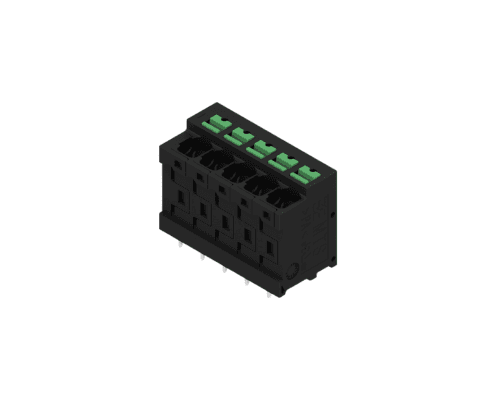

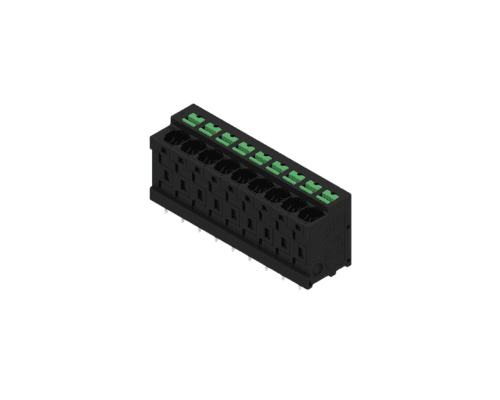

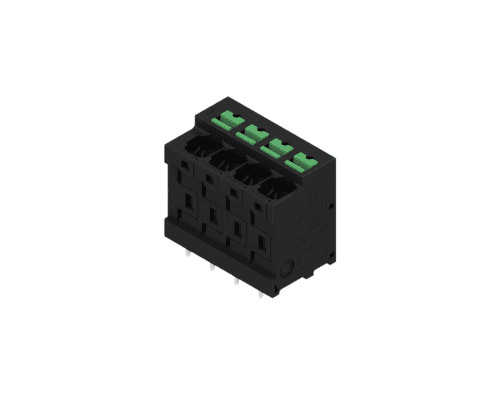

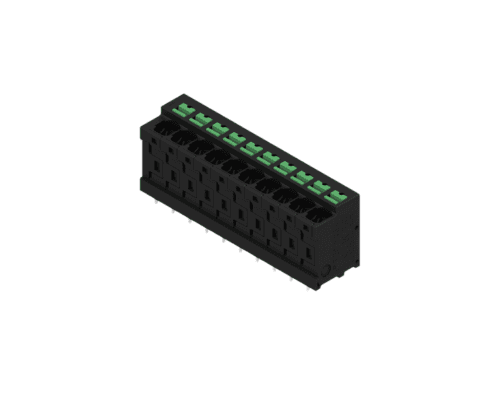

Part no. : 2913710000

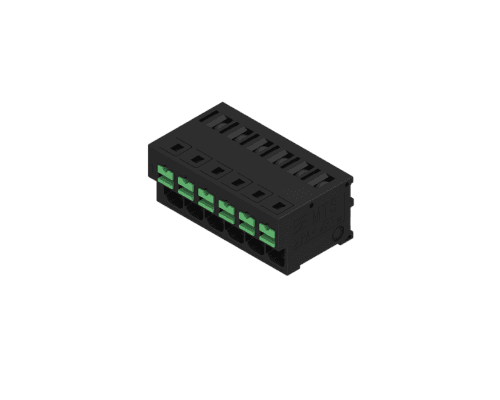

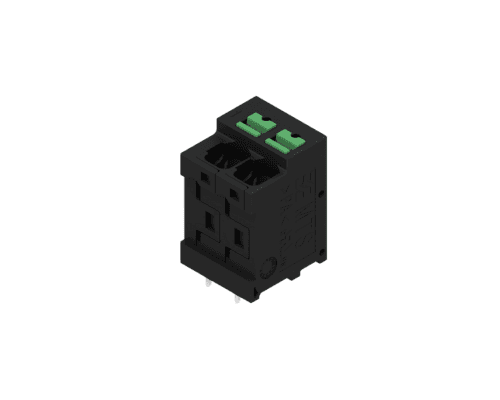

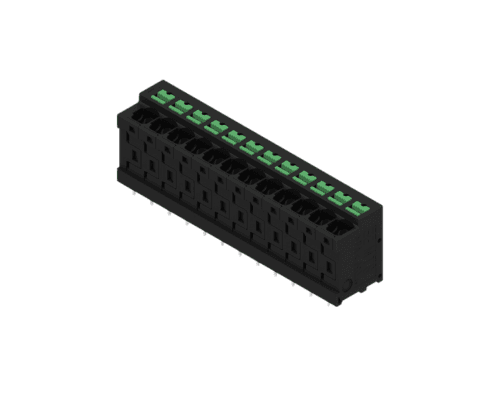

2 Way Snap-in PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/02 V T4 B T)

Part no. : 2913720000

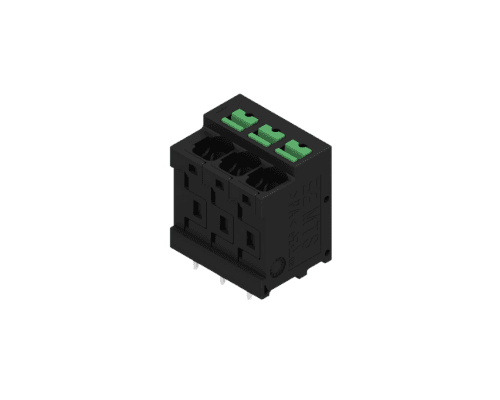

3 Way Snap-in PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/03 V T4 B T)

Part no. : 2913730000

4 Way Snap-in PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/04 V T4 B T)

Part no. : 2913740000

5 Way Snap-in PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/05 V T4 B T)

Part no. : 2913750000

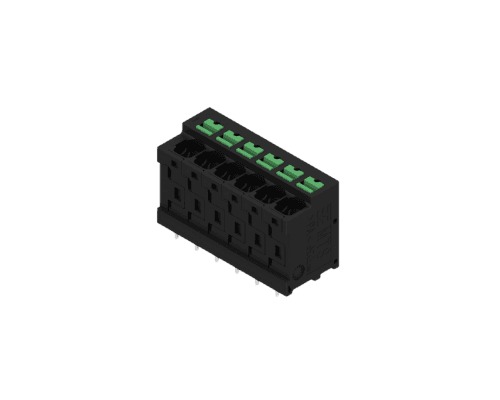

6 Way Snap-in PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/06 V T4 B T)

Part no. : 2913760000

7 Way Snap-in PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/07 V T4 B T)

Part no. : 2913770000

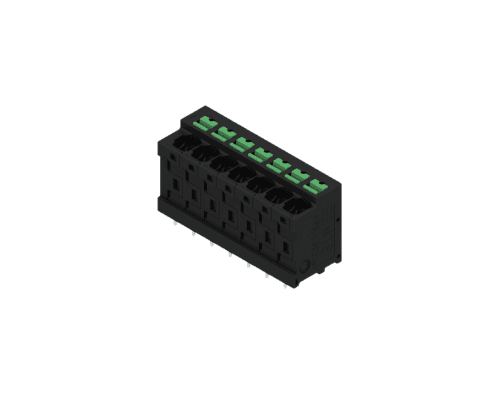

8 Way Snap-in PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/08 V T4 B T)

Part no. : 2913780000

9 Way Snap-in PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/09 V T4 B T)

Part no. : 2913790000

10 Way Snap-in PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/10 V T4 B T)

Part no. : 2913800000

11 Way Snap-in PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/11 V T4 B T)

Part no. : 2913810000

12 Way Snap-in PCB Terminal Connector with Dip-Solder Contacts, IP20 (MTS 5/12 V T4 B T)
