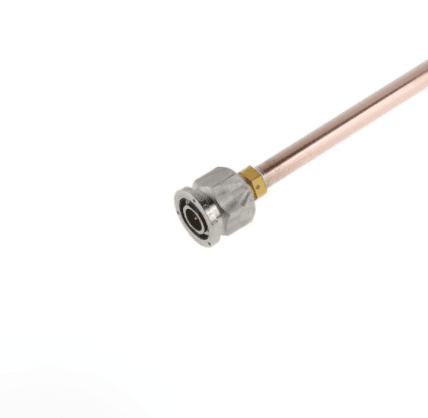

Radiall TNC Series / TNC 18 GHz Series
In brief:
Range of miniature RF coaxial connectors with screw thread locking mechanism
The TNC connector is threaded equivalent the hugely popular BNC bayonet locking system.
Available in 50Ω, 75Ω and 18GHz variants.
A specialist manufacturer of quality, durable components for the aerospace, industrial, medical and telecommunications industries
Download BrochureRadiall TNC is a range of miniature RF coaxial connectors and is the threaded equivalent of the hugely popular BNC bayonet locking system.
The series is available in 50Ω, 75Ω and 18GHz variants.
General Characteristics
- Screw-on equivalent to BNC bayonet series
- Good RF performance
- Suitable for high power levels
- Long life and high strength
- 3 ranges:
- Standard TNC series (50 and 75Ω fully intermateable)
- Commercial TNC series (50 and 75Ω)
- 18 GHz TNC series (50Ω)
Applicable Standards
- MIL-C-39012 / MIL STD 348A/313
- IEC 60169-17
- CECC 22200
Applications
- Avionics
- Aeronautics
- Countermeasures
- Telecommunications
For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.
