Lumberg Automation M12 A-Coded Series

In brief:

Compact circular connector system with industry standard IEC 61076-2-101 M12x1 screw locking interface.

M12 A-Coded connectors offer pin-counts of 3 to 12 with a current carrying capacity of up to 4A per contact.

The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 0.75mm² and is capable of offering IP67 ingress protection in mated state or with the use of a protection cover.

Lumberg Automation products are among the most respected and reliable in the marketplace for automation technology

Download Brochure

A range of miniature industry standard circular sensor and automation connectors with screw-lock coupling conforming to IEC 61076-2-101.

Lumberg Automation M12 connectors are available in panel receptacle, field attachable and overmoulded cable plugs in 3, 4, 5, 8 and 12 way variants.

The connectors are renowned for their practicality and boast a compact and neat shell, while they are highly application-friendly due to the variety of options at the user's disposal. They are highly regarded among engineers and can be used in the harshest of environments with a sealing to IP67 in mated conditions.

Among the benefits of field attachable cable connectors are improved flexibility and the capacity for users to wire them up on site using screw termination cavities. This means there is no need for any expensive tooling.

Overmoulded cable plugs have the option of EMC shielding or stainless steel shells and most variants can be supplied in straight or angled orientation.

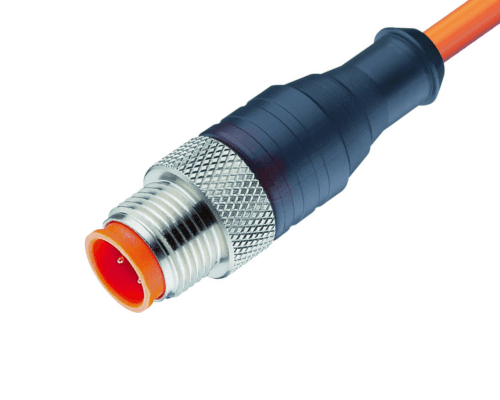

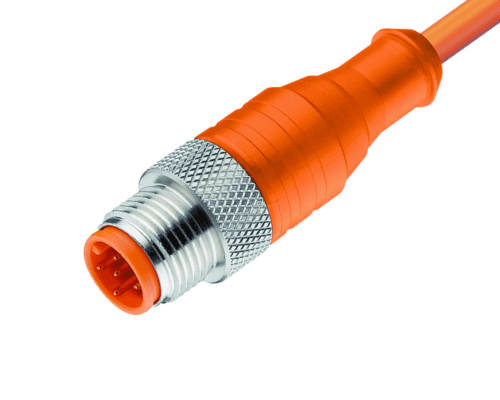

Available in both black PUR and orange PVC jacket, the overmoulded cable setups - which provide excellent protection from dirt and moisture - have multiple standard lengths, including 2, 5 and 10m.

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001

We have many products in this series, find what you need using the filters below

101 products match your criteria:

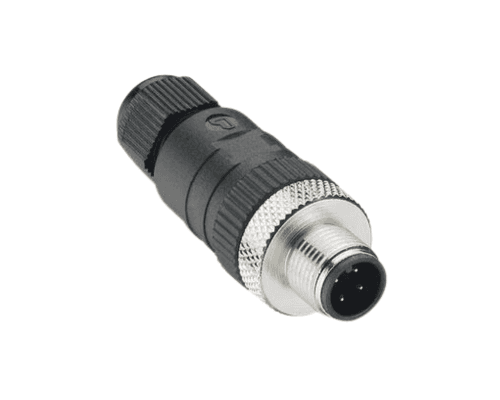

Part no. : RSC 3/7

3 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-6mm Straight Cable Entry, IP67

Part no. : RSC 3/9

3 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-8mm Straight Cable Entry, IP67

Part no. : RSC 4/7

4 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-6mm Straight Cable Entry, IP67

Part no. : RSC 4/9

4 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-8mm Straight Cable Entry, IP67

Part no. : RSC 5/7

5 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-6mm Straight Cable Entry, IP67

Part no. : RSC 5/9

5 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, IP67

Part no. : RSC 8/9

8 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-8mm Straight Cable Entry, IP67

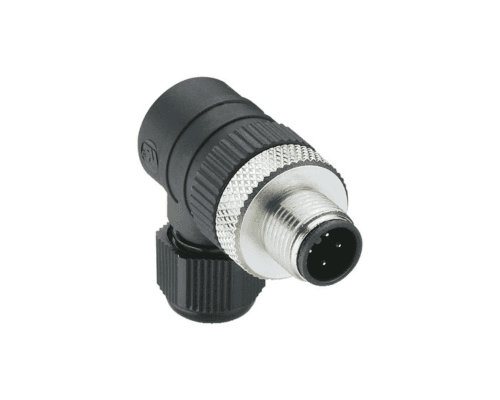

Part no. : RSCW 3/7

3 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-6mm Angled Cable Entry, IP67

Part no. : RSCW 3/9

3 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-8mm Angled Cable Entry, IP67

Part no. : RSCW 4/7

4 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-6mm Angled Cable Entry, IP67

Part no. : RSCW 4/9

4 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-8mm Angled Cable Entry, IP67

Part no. : RSCW 5/7

5 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-6mm Angled Cable Entry, IP67

Part no. : RSCW 5/9

5 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-8mm Angled Cable Entry, IP67

Part no. : RSCW 8/9

8 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-8mm Angled Cable Entry, IP67

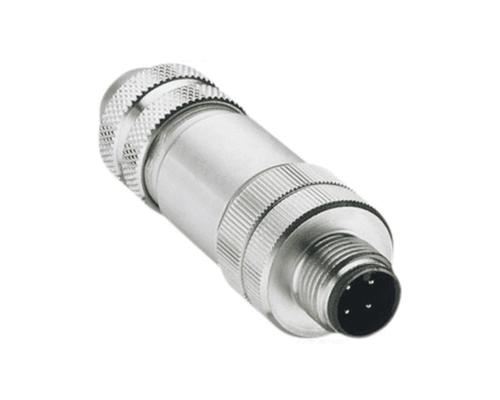

Part no. : RSCS 4/9

4 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-9mm Straight Cable Entry, Shieldable, IP67

Part no. : RSCS 5/9

5 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-9mm Straight Cable Entry, Shieldable, IP67

Part no. : RSCS 8/9

8 Way M12 (A-Coded) Male Cable Connector with Screw Contacts, 4-9mm Straight Cable Entry, Shieldable, IP67

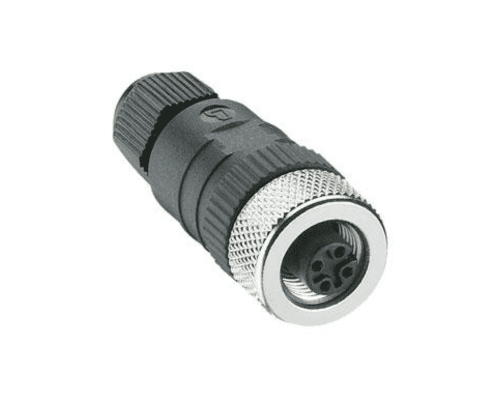

Part no. : RKC 4/3/7

3 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-6mm Straight Cable Entry, IP67

Part no. : RKC 4/3/9

3 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-8mm Straight Cable Entry, IP67

Part no. : RKC 4/7

4 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-6mm Straight Cable Entry, IP67

Part no. : RKC 4/9

4 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-8mm Straight Cable Entry, IP67

Part no. : RKC 5/7

5 Way M12 (A-coded) Female Cable Connector with Screw Contacts, 4-6mm Straight Cable Entry, IP67

Part no. : RKC 5/9

5 Way M12 (A-coded) Female Cable Connector with Screw Contacts, 4-8mm Straight Cable Entry, IP67

Part no. : RKC 8/9

8 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-8mm Straight Cable Entry, IP67

Part no. : RKCW 4/3/7

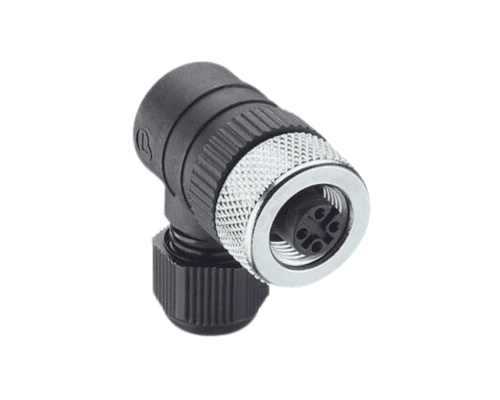

3 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-6mm Angled Cable Entry, IP67

Part no. : RKCW 4/3/9

3 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-8mm Angled Cable Entry, IP67

Part no. : RKCW 4/7

4 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-6mm Angled Cable Entry, IP67

Part no. : RKCW 4/9

4 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-8mm Angled Cable Entry, IP67

Part no. : RKCW 5/7

5 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-6mm Angled Cable Entry, IP67

Part no. : RKCW 5/9

5 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-8mm Angled Cable Entry, IP67

Part no. : RKCW 8/9

8 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-8mm Angled Cable Entry, IP67

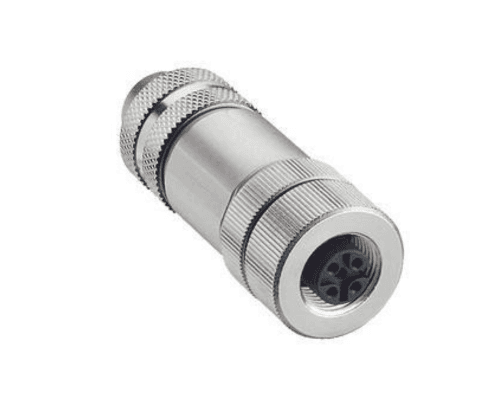

Part no. : RKCS 4/9

4 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-9mm Straight Cable Entry, Shieldable, IP67

Part no. : RKCS 5/9

5 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-9mm Straight Cable Entry, Shieldable, IP67

Part no. : RKCS 8/9

8 Way M12 (A-Coded) Female Cable Connector with Screw Contacts, 4-9mm Straight Cable Entry, Shieldable, IP67

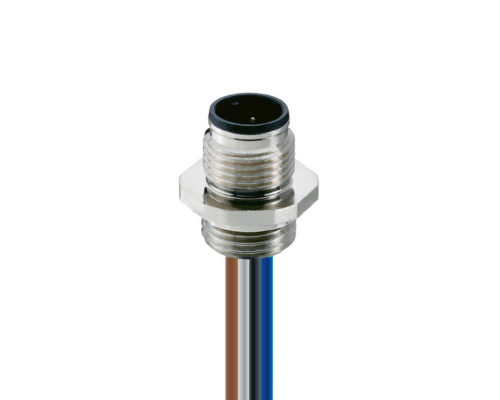

Part no. : RSFM 3/0,5 M

3 Way M12 (A-Coded) Male Jam-Nut Panel Connector with Pre-wired Contacts, without Lock Nut, IP67

Part no. : RSFM 4/0,5 M

4 Way M12 (A-Coded) Male Jam-Nut Panel Connector with Pre-wired Contacts, without Lock Nut, IP67

Part no. : RSFM 5/0,5 M

5 Way M12 (A-Coded) Male Jam-Nut Panel Connector with Pre-wired Contacts, without Lock Nut, IP67

Part no. : RSFM 8/0,5 M

8 Way M12 (A-Coded) Male Jam-Nut Panel Connector with Pre-wired Contacts, without Lock Nut, IP67

Part no. : RKFM 4-3/0,5 M

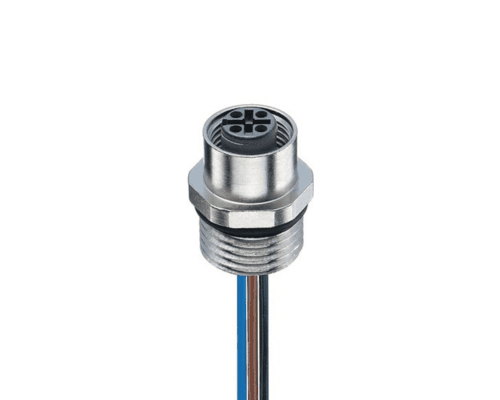

3 Way M12 (A-Coded) Female Jam-Nut Panel Connector with Pre-wired Contacts, without Lock Nut, IP67

Part no. : RKFM 4/0,5 M

4 Way M12 (A-Coded) Female Jam-Nut Panel Connector with Pre-wired Contacts, without Lock Nut, IP67

Part no. : RKFM 5/0,5 M

5 Way M12 (A-Coded) Female Jam-Nut Panel Connector with Pre-wired Contacts, without Lock Nut, IP67

Part no. : RKFM 8/0,5 M

8 Way M12 (A-Coded) Female Jam-Nut Panel Connector with Pre-wired Contacts, without Lock Nut, IP67

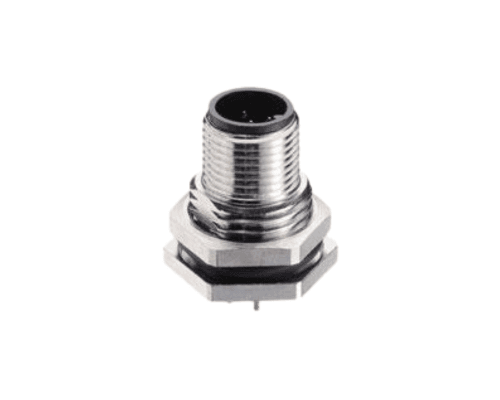

Part no. : RSHL 4/S 5,5

4 Way M12 (A-Coded) Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67

Part no. : RSHL 5/S 5,5

5 Way M12 (A-Coded) Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67

Part no. : RSHL 8/S 5,5

8 Way M12 (A-Coded) Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67

Part no. : RKHL 4/S 5,5

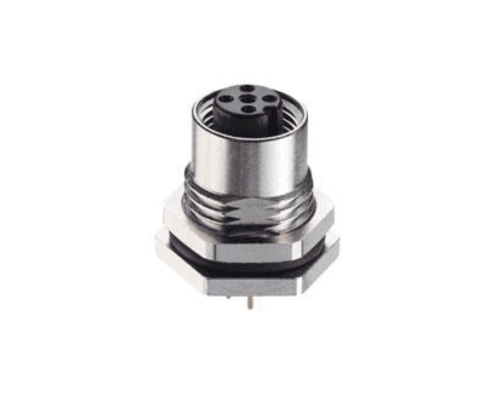

4 Way M12 (A-Coded) Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67

Part no. : RKHL 5/S 5,5

5 Way M12 (A-Coded) Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67

Part no. : RKHL 8/S 5,5

8 Way M12 (A-Coded) Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67

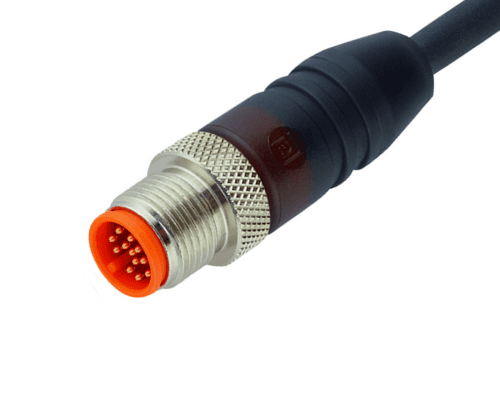

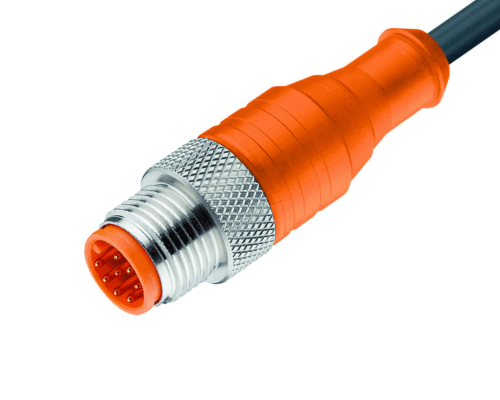

Part no. : RST 3-224/2 M

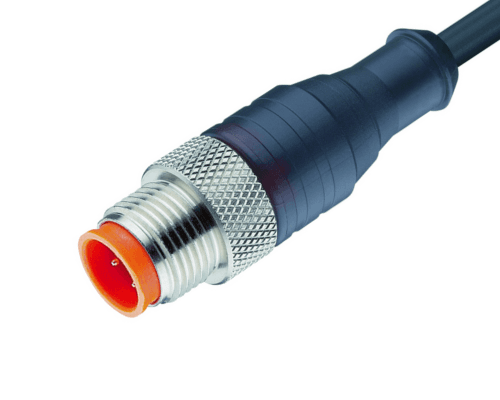

3 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 2m Cable with Black PUR Jacket, IP67

Part no. : RST 3-224/5 M

3 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 5m Cable with Black PUR Jacket, IP67

Part no. : RST 3-224/10 M

3 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 10m Cable with Black PUR Jacket, IP67

Part no. : RST 3-06/2 M

3 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 2m Cable with Orange PVC Jacket, IP67

Part no. : RST 3-06/5 M

3 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 5m Cable with Orange PVC Jacket, IP67

Part no. : RST 3-06/10 M

3 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 10m Cable with Orange PVC Jacket, IP67

Part no. : RST 4-225/2 M

4 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 2m Cable with Black PUR Jacket, IP67

Part no. : RST 4-225/5 M

4 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 5m Cable with Black PUR Jacket, IP67

Part no. : RST 4-225/10 M

4 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 10m Cable with Black PUR Jacket, IP67

Part no. : RST 4-07/2 M

4 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 2m Cable with Orange PVC Jacket, IP67

Part no. : RST 4-07/5 M

4 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 5m Cable with Orange PVC Jacket, IP67

Part no. : RST 4-07/10 M

4 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 10m Cable with Orange PVC Jacket, IP67

Part no. : RST 5-228/2 M

5 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 2m Cable with Black PUR Jacket, IP67

Part no. : RST 5-228/5 M

5 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 5m Cable with Black PUR Jacket, IP67

Part no. : RST 5-228/10 M

5 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 10m Cable with Black PUR Jacket, IP67

Part no. : RST 5-56/2 M

5 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 2m Cable with Orange PVC Jacket, IP67

Part no. : RST 5-56/5 M

5 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 5m Cable with Orange PVC Jacket, IP67

Part no. : RST 5-56/10 M

5 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 10m Cable with Orange PVC Jacket, IP67

Part no. : RST 8-344/2 M

8 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 2m Cable with Black PUR Jacket, IP67

Part no. : RST 8-344/5 M

8 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 5m Cable with Black PUR Jacket, IP67

Part no. : RST 8-344/10 M

8 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 10m Cable with Black PUR Jacket, IP67

Part no. : RST 12-346/2 M

12 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 2m Cable with Black PUR Jacket, IP67

Part no. : RST 12-346/5 M

12 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 5m Cable with Black PUR Jacket, IP67

Part no. : RST 12-346/10 M

12 Way M12 (A-Coded) Cable Assembly, Straight Male to Open End, 10m Cable with Black PUR Jacket, IP67

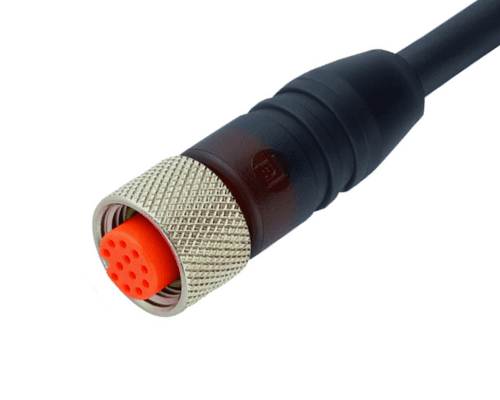

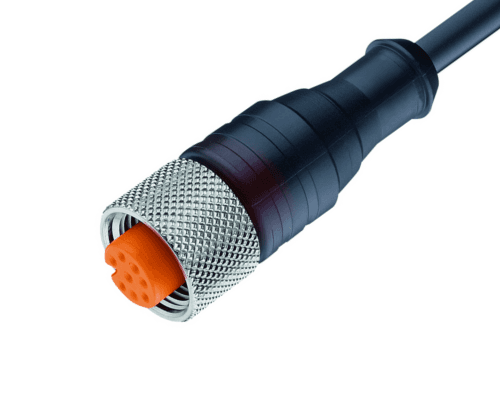

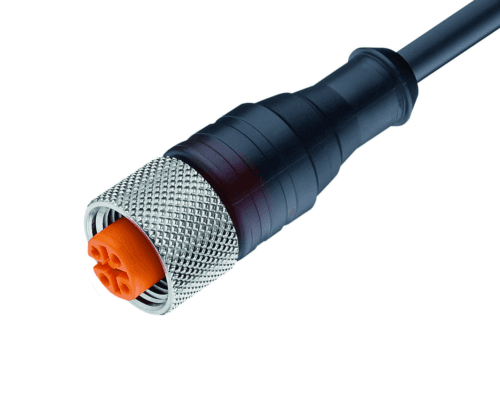

Part no. : RKT 4-3-224/2 M

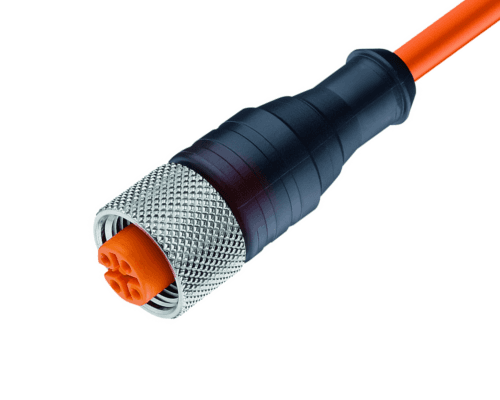

3 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 2m Cable with Black PUR Jacket, IP67

Part no. : RKT 4-3-224/5 M

3 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 5m Cable with Black PUR Jacket, IP67

Part no. : RKT 4-3-224/10 M

3 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 10m Cable with Black PUR Jacket, IP67

Part no. : RKT 4-3-06/2 M

3 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 2m Cable with Orange PVC Jacket, IP67

Part no. : RKT 4-3-06/5 M

3 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 5m Cable with Orange PVC Jacket, IP67

Part no. : RKT 4-3-06/10 M

3 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 10m Cable with Orange PVC Jacket, IP67

Part no. : RKT 4-225/2 M

4 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 2m Cable with Black PUR Jacket, IP67

Part no. : RKT 4-225/5 M

4 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 5m Cable with Black PUR Jacket, IP67

Part no. : RKT 4-225/10 M

4 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 10m Cable with Black PUR Jacket, IP67

Part no. : RKT 4-07/2 M

4 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 2m Cable with Orange PVC Jacket, IP67

Part no. : RKT 4-07/5 M

4 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 5m Cable with Orange PVC Jacket, IP67

Part no. : RKT 4-07/10 M

4 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 10m Cable with Orange PVC Jacket, IP67

Part no. : RKT 5-228/2 M

5 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 2m Cable with Black PUR Jacket, IP67

Part no. : RKT 5-228/5 M

5 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 5m Cable with Black PUR Jacket, IP67

Part no. : RKT 5-228/10 M

5 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 10m Cable with Black PUR Jacket, IP67

Part no. : RKT 5-56/2 M

5 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 2m Cable with Orange PVC Jacket, IP67

Part no. : RKT 5-56/5 M

5 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 5m Cable with Orange PVC Jacket, IP67

Part no. : RKT 5-56/10 M

5 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 10m Cable with Orange PVC Jacket, IP67

Part no. : RKT 8-344/2 M

8 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 2m Cable with Black PUR Jacket, IP67

Part no. : RKT 8-344/5 M

8 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 5m Cable with Black PUR Jacket, IP67

Part no. : RKT 8-344/10 M

8 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 10m Cable with Black PUR Jacket, IP67

Part no. : RKT 12-346/2 M

12 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 2m Cable with Black PUR Jacket, IP67

Part no. : RKT 12-346/5 M

12 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 5m Cable with Black PUR Jacket, IP67

Part no. : RKT 12-346/10 M

12 Way M12 (A-Coded) Cable Assembly, Straight Female to Open End, 10m Cable with Black PUR Jacket, IP67

Part no. : ZVK

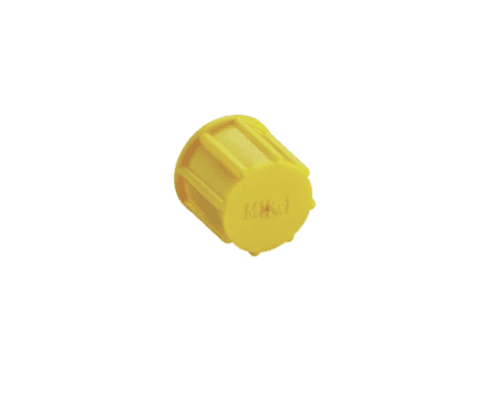

Protection Cover for Connectors with Female Locking Thread, without Fixing Rope

Part no. : 0909 UAC 101

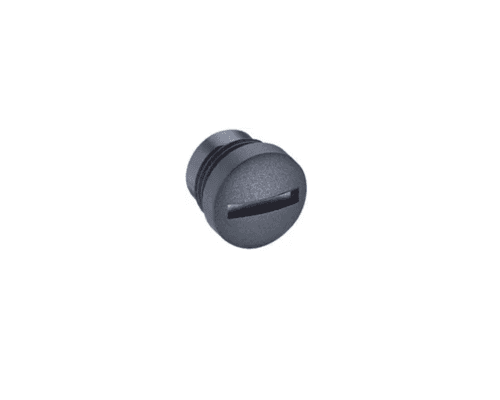

Protection Cover for Connectors with Male Locking Thread, without Fixing Rope

Part no. : RSKF 9

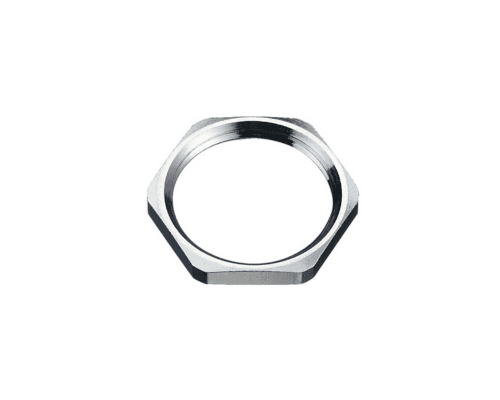

Metal Hexagonal Lock Nut with PG9 Thread

Part no. : RSKFM 16

Metal Hexagonal Lock Nut with M16 Thread

Part no. : RSKFM 20

Metal Hexagonal Lock Nut with M20 Thread
