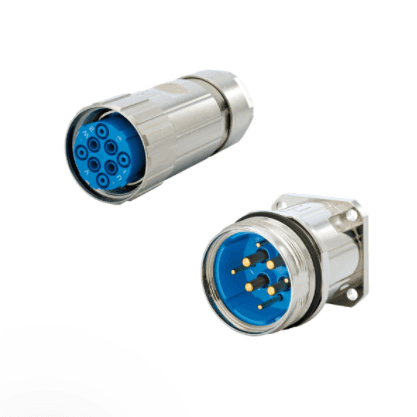

HUMMEL M40 Power Series

HUMMEL M40 Connectors

In brief:

Robust multi-pin circular connector system with industry standard M40x1.5 Screw or Twist Locking interface.

M40 Power connectors offer pin-counts of 6 and 8 with a current carrying capacity of up to 55A per contact.

The series caters for cable OD’s of up to 28mm, has a wire gauge max. of 16.00mm² and is capable of offering IP67 & IP69K ingress protection in mated state or with the use of a protection cover.

Hummel Distributors - Hummel logo

A renowned manufacturer known for quality, innovation and technical development, offering circular connectors, cable glands and cable protection

DownloadDownload Brochure

HUMMEL M40 Power series is a range of robust waterproof circular connectors for use in tough environments.

The M40 system is sealed to IP67 and IP69K in mated condition thus provides a ruggedized sealed connection at all times.

6 & 8 way variants offer a current carrying capacity of up to 55A and allow for cable OD’s of up to 28mm and wire gauges of 16.00mm².

Cable shells are available with both male and female thread for an in-line connection or can be mated with the panel receptacle which is available in standard or angled square flange and jam-nut style.

Connectors shells arrive with the relevant 6 or 8 way insert with crimp contacts chosen separately depending on the desired wire gauge.

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.

We have many products in this series, find what you need using the filters below

61 products match your criteria:

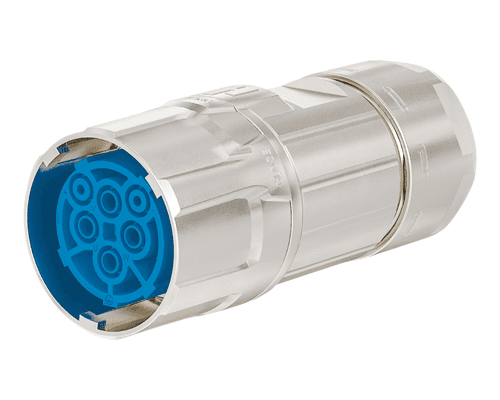

7.710.623.000 thumbnail

Part no. : 7.710.623.000

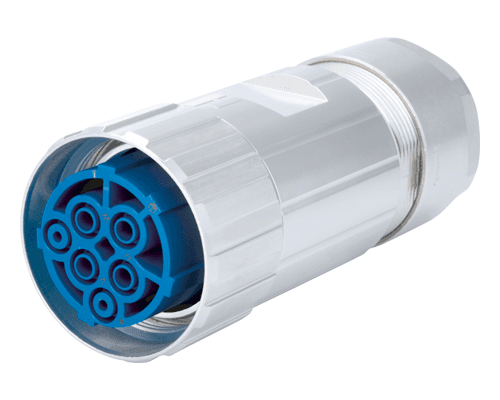

6 Way M40 (Power) Cable Connector for Socket Contacts, Female Locking Thread, 13-18mm Straight Cable Entry, Shieldable, IP67 & IP69K

7.710.723.000 thumbnail

Part no. : 7.710.723.000

6 Way M40 (Power) Cable Connector for Socket Contacts, Female Locking Thread, 17-24mm Straight Cable Entry, Shieldable, IP67 & IP69K

7.710.823.000 thumbnail

Part no. : 7.710.823.000

6 Way M40 (Power) Cable Connector for Socket Contacts, Female Locking Thread, 21-28mm Straight Cable Entry, Shieldable, IP67 & IP69K

7.710.643.000 thumbnail

Part no. : 7.710.643.000

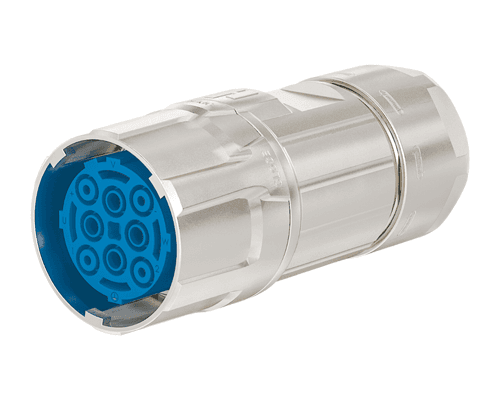

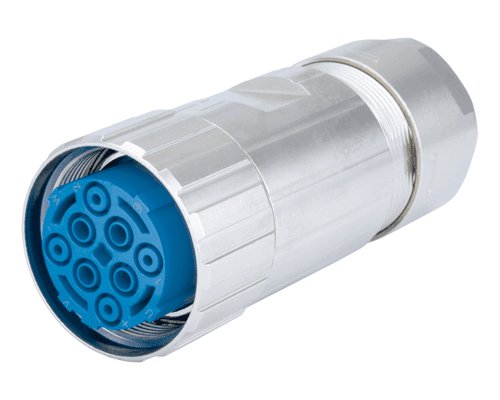

8 Way M40 (Power) Cable Connector for Socket Contacts, Female Locking Thread, 13-18mm Straight Cable Entry, Shieldable, IP67 & IP69K

7.710.743.000 thumbnail

Part no. : 7.710.743.000

8 Way M40 (Power) Cable Connector for Socket Contacts, Female Locking Thread, 17-24mm Straight Cable Entry, Shieldable, IP67 & IP69K

7.710.843.000 thumbnail

Part no. : 7.710.843.000

8 Way M40 (Power) Cable Connector for Socket Contacts, Female Locking Thread, 21-28mm Straight Cable Entry, Shieldable, IP67 & IP69K

7.716.623.00S thumbnail

Part no. : 7.716.623.00S

6 Way M40 (Power) Cable Connector for Socket Contacts, Female Locking Thread, 13-18mm Straight Cable Entry, Shieldable, Twilock-S Locking, IP67 & IP69K

7.716.723.00S thumbnail

Part no. : 7.716.723.00S

6 Way M40 (Power) Cable Connector for Socket Contacts, Female Locking Thread, 17-24mm Straight Cable Entry, Shieldable, Twilock-S Locking, IP67 & IP69K

7.716.823.00S thumbnail

Part no. : 7.716.823.00S

6 Way M40 (Power) Cable Connector for Socket Contacts, Female Locking Thread, 21-28mm Straight Cable Entry, Shieldable, Twilock-S Locking, IP67 & IP69K

7.716.643.00S thumbnail

Part no. : 7.716.643.00S

8 Way M40 (Power) Cable Connector for Socket Contacts, Female Locking Thread, 13-18mm Straight Cable Entry, Shieldable, Twilock-S Locking, IP67 & IP69K

7.716.743.00S thumbnail

Part no. : 7.716.743.00S

8 Way M40 (Power) Cable Connector for Socket Contacts, Female Locking Thread, 17-24mm Straight Cable Entry, Shieldable, Twilock-S Locking, IP67 & IP69K

7.716.843.00S thumbnail

Part no. : 7.716.843.00S

8 Way M40 (Power) Cable Connector for Socket Contacts, Female Locking Thread, 21-28mm Straight Cable Entry, Shieldable, Twilock-S Locking, IP67 & IP69K

7.720.623.000 thumbnail

Part no. : 7.720.623.000

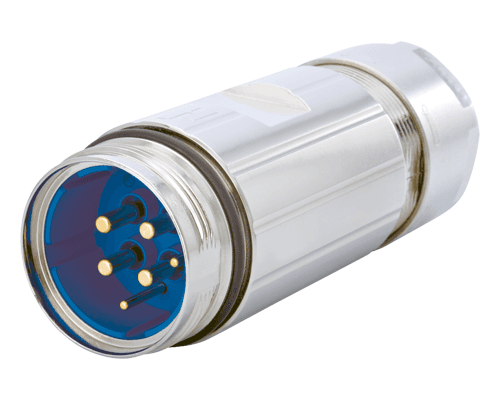

6 Way M40 (Power) Cable Connector for Pin Contacts, Male Locking Thread, 13-18mm Straight Cable Entry, Shieldable, IP67 & IP69K

7.720.723.000 thumbnail

Part no. : 7.720.723.000

6 Way M40 (Power) Cable Connector for Pin Contacts, Male Locking Thread, 17-24mm Straight Cable Entry, Shieldable, IP67 & IP69K

7.720.823.000 thumbnail

Part no. : 7.720.823.000

6 Way M40 (Power) Cable Connector for Pin Contacts, Male Locking Thread, 21-28mm Straight Cable Entry, Shieldable, IP67 & IP69K

7.720.623.00S thumbnail

Part no. : 7.720.623.00S

6 Way M40 (Power) Cable Connector for Pin Contacts, Male Locking Thread, 13-18mm Straight Cable Entry, Shieldable, Screw & Twilock-S Locking, IP67 & IP69K

7.720.723.00S thumbnail

Part no. : 7.720.723.00S

6 Way M40 (Power) Cable Connector for Pin Contacts, Male Locking Thread, 17-24mm Straight Cable Entry, Shieldable, Screw & Twilock-S Locking, IP67 & IP69K

7.720.823.00S thumbnail

Part no. : 7.720.823.00S

6 Way M40 (Power) Cable Connector for Pin Contacts, Male Locking Thread, 21-28mm Straight Cable Entry, Shieldable, Screw & Twilock-S Locking, IP67 & IP69K

7.720.643.000 thumbnail

Part no. : 7.720.643.000

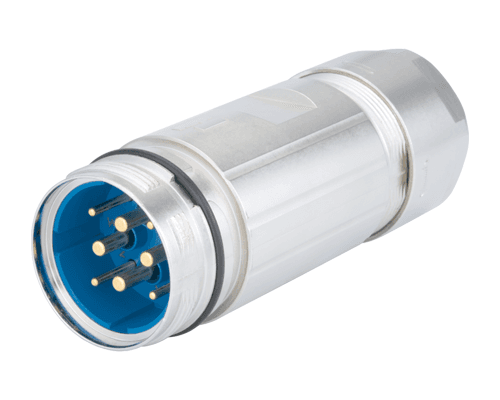

8 Way M40 (Power) Cable Connector for Pin Contacts, Male Locking Thread, 13-18mm Straight Cable Entry, Shieldable, IP67 & IP69K

7.720.743.000 thumbnail

Part no. : 7.720.743.000

8 Way M40 (Power) Cable Connector for Pin Contacts, Male Locking Thread, 17-24mm Straight Cable Entry, Shieldable, IP67 & IP69K

7.720.843.000 thumbnail

Part no. : 7.720.843.000

8 Way M40 (Power) Cable Connector for Pin Contacts, Male Locking Thread, 21-28mm Straight Cable Entry, Shieldable, IP67 & IP69K

7.720.643.00S thumbnail

Part no. : 7.720.643.00S

8 Way M40 (Power) Cable Connector for Pin Contacts, Male Locking Thread, 13-18mm Straight Cable Entry, Shieldable, Screw & Twilock-S Locking, IP67 & IP69K

7.720.743.00S thumbnail

Part no. : 7.720.743.00S

8 Way M40 (Power) Cable Connector for Pin Contacts, Male Locking Thread, 17-24mm Straight Cable Entry, Shieldable, Screw & Twilock-S Locking, IP67 & IP69K

7.720.843.00S thumbnail

Part no. : 7.720.843.00S

8 Way M40 (Power) Cable Connector for Pin Contacts, Male Locking Thread, 21-28mm Straight Cable Entry, Shieldable, Screw & Twilock-S Locking, IP67 & IP69K

7.740.023.000 thumbnail

Part no. : 7.740.023.000

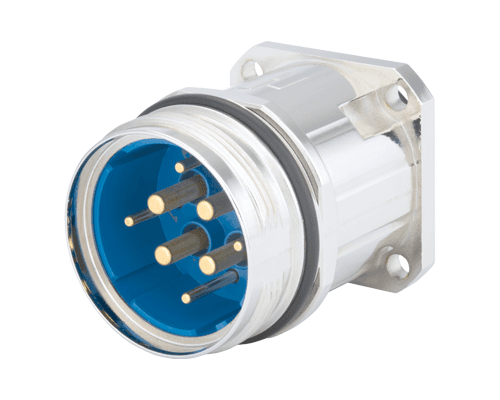

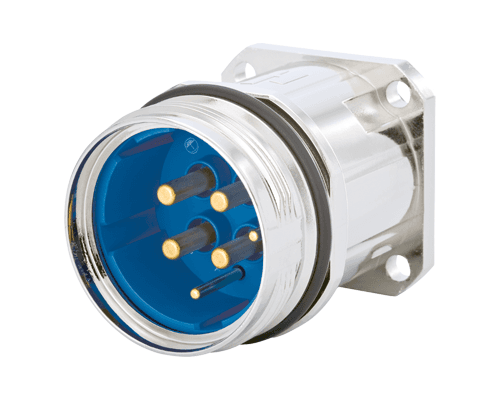

6 Way M40 (Power) Square Flanged Panel Connector for Pin Contacts, Male Locking Thread, IP67 & IP69K

7.740.023.00S thumbnail

Part no. : 7.740.023.00S

6 Way M40 (Power) Square Flanged Panel Connector for Pin Contacts, Male Locking Thread, Screw & Twilock-S Locking, IP67 & IP69K

7.740.043.000 thumbnail

Part no. : 7.740.043.000

8 Way M40 (Power) Square Flanged Panel Connector for Pin Contacts, Male Locking Thread, IP67 & IP69K

7.740.043.00S thumbnail

Part no. : 7.740.043.00S

8 Way M40 (Power) Square Flanged Panel Connector for Pin Contacts, Male Locking Thread, Screw & Twilock-S Locking, IP67 & IP69K

7.744.023.000 thumbnail

Part no. : 7.744.023.000

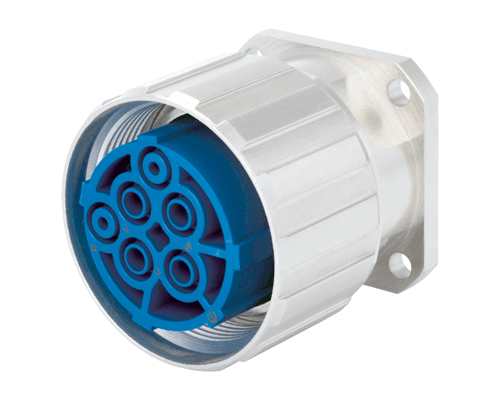

6 Way M40 (Power) Square Flanged Panel Connector for Socket Contacts, Female Locking Thread, IP67 & IP69K

7.744.043.000 thumbnail

Part no. : 7.744.043.000

8 Way M40 (Power) Square Flanged Panel Connector for Socket Contacts, Female Locking Thread, IP67 & IP69K

7.749.023.00S thumbnail

Part no. : 7.749.023.00S

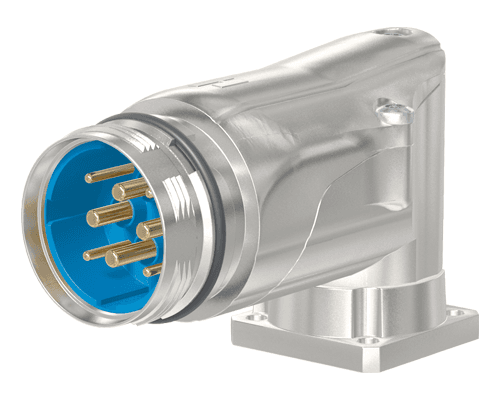

6 Way M40 (Power) Angled Square Flanged Panel Connector for Pin Contacts, Male Locking Thread, Screw & Twilock-S Locking, IP67 & IP69K

7.749.043.00S thumbnail

Part no. : 7.749.043.00S

8 Way M40 (Power) Angled Square Flanged Panel Connector for Pin Contacts, Male Locking Thread, Screw & Twilock-S Locking, IP67 & IP69K

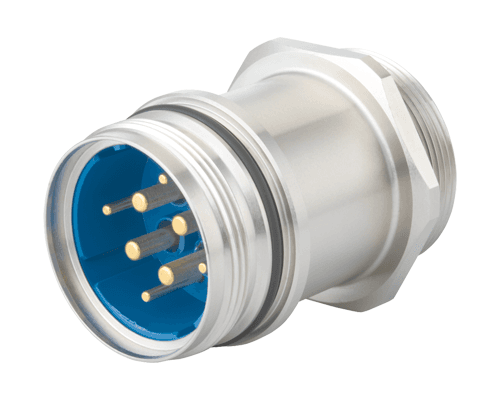

7.742.023.000 thumbnail

Part no. : 7.742.023.000

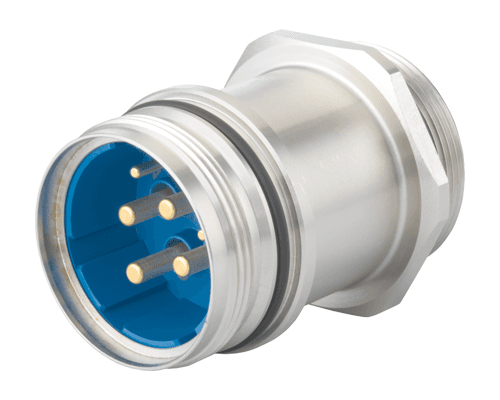

6 Way M40 (Power) Jam-Nut Panel Connector for Pin Contacts, Male Locking Thread, without Lock Nut, IP67 & IP69K

7.742.043.000 thumbnail

Part no. : 7.742.043.000

8 Way M40 (Power) Jam-Nut Panel Connector for Pin Contacts, Male Locking Thread, without Lock Nut, IP67 & IP69K

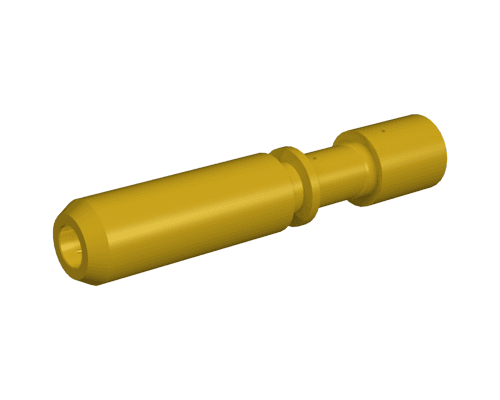

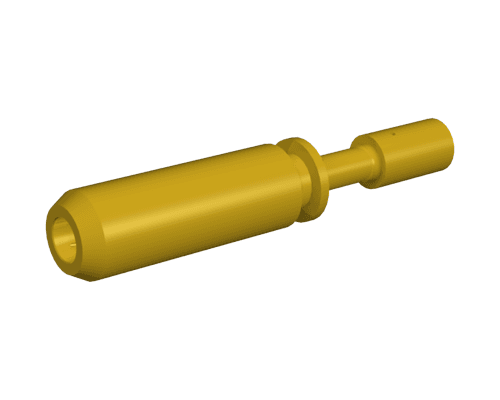

7.015.952.003 thumbnail

Part no. : 7.015.952.003

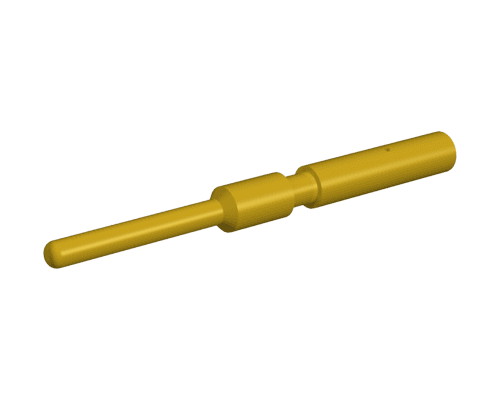

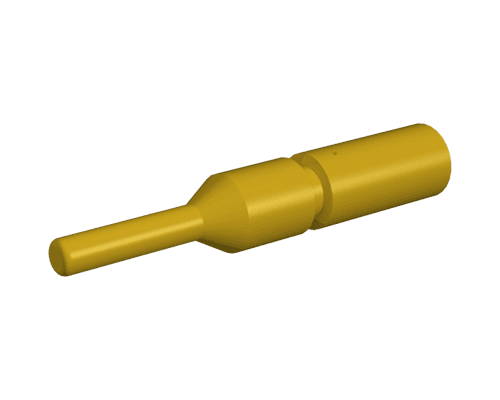

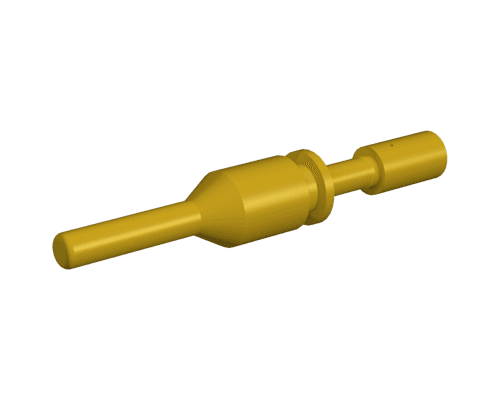

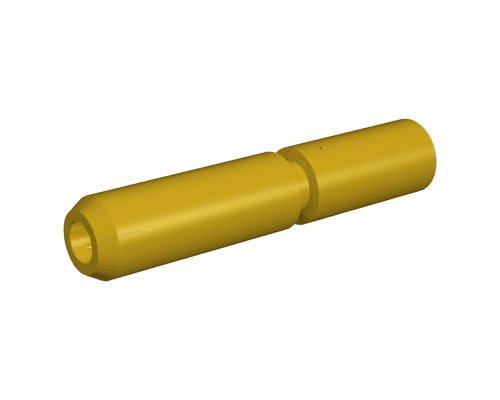

2mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.25-1.00mm²

7.015.952.001 thumbnail

Part no. : 7.015.952.001

2mm Crimp Pin Contact, Machined Construction, Gold Plating, 1.00-4.00mm²

7.015.952.004 thumbnail

Part no. : 7.015.952.004

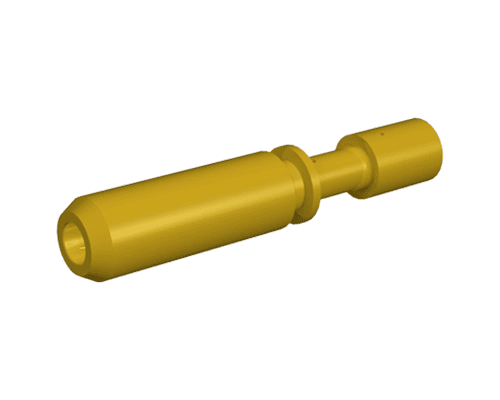

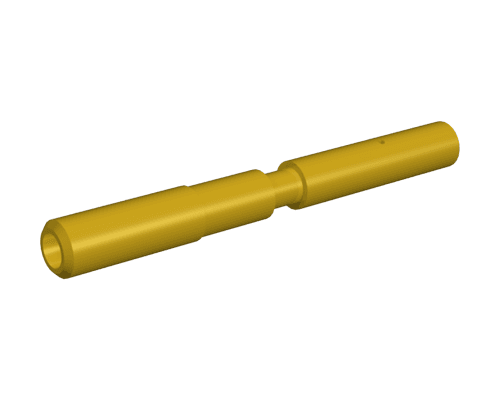

2mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.25-1.00mm²

7.015.952.002 thumbnail

Part no. : 7.015.952.002

2mm Crimp Socket Contact, Machined Construction, Gold Plating, 1.00-4.00mm²

7.015.953.601 thumbnail

Part no. : 7.015.953.601

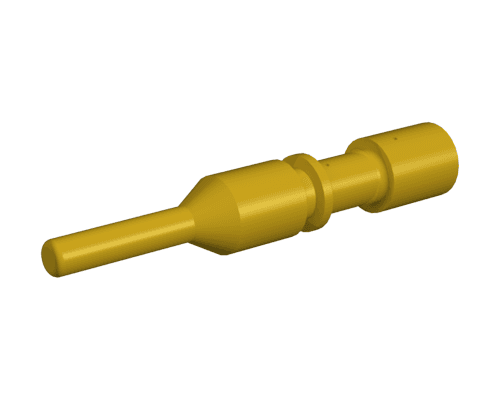

3.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 1.50-4.00mm²

7.015.953.602 thumbnail

Part no. : 7.015.953.602

3.6mm Crimp Socket Contact, Machined Construction, Gold Plating, 1.50-4.00mm²

7.015.953.611 thumbnail

Part no. : 7.015.953.611

3.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 6.00mm²

7.015.953.612 thumbnail

Part no. : 7.015.953.612

3.6mm Crimp Socket Contact, Machined Construction, Gold Plating, 6.00mm²

7.015.953.621 thumbnail

Part no. : 7.015.953.621

3.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 8.37mm²

7.015.953.623 thumbnail

Part no. : 7.015.953.623

3.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 10.00mm²

7.015.953.622 thumbnail

Part no. : 7.015.953.622

3.6mm Crimp Socket Contact, Machined Construction, Gold Plating, 8.37mm²

7.015.953.624 thumbnail

Part no. : 7.015.953.624

3.6mm Crimp Socket Contact, Machined Construction, Gold Plating, 10.00mm²

7.015.953.631 thumbnail

Part no. : 7.015.953.631

3.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 16.00mm²

7.015.953.632 thumbnail

Part no. : 7.015.953.632

3.6mm Crimp Socket Contact, Machined Construction, Gold Plating, 16.00mm²

7.000.900.152 thumbnail

Part no. : 7.000.900.152

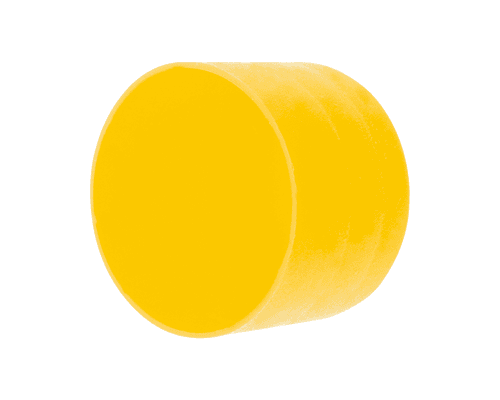

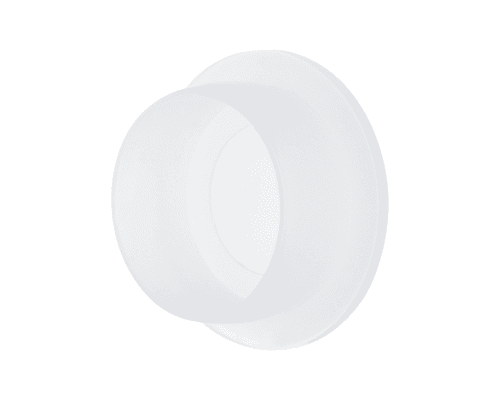

Protection Cover for Connectors with Female Locking Thread, without Fixing Rope, Plastic Version

7.000.900.151 thumbnail

Part no. : 7.000.900.151

Protection Cover for Connectors with Male Locking Thread, without Fixing Rope, Plastic Version

7.015.900.103 thumbnail

Part no. : 7.015.900.103

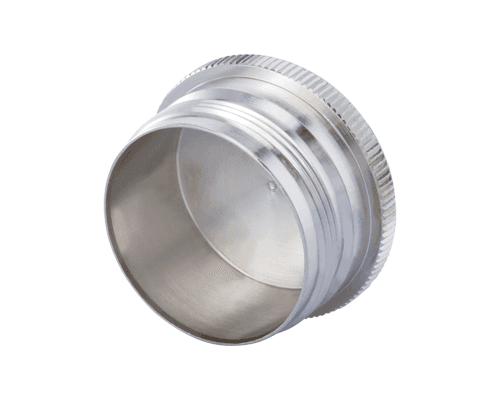

Protection Cover for Connectors with Female Locking Thread, without Fixing Rope, IP67 & IP69K

7.015.900.102 thumbnail

Part no. : 7.015.900.102

Protection Cover for Connectors with Male Locking Thread, without Fixing Rope, IP67 & IP69K

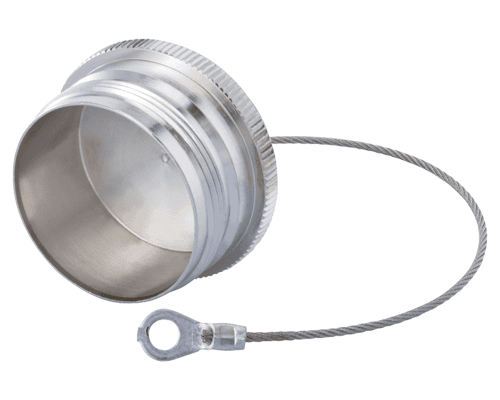

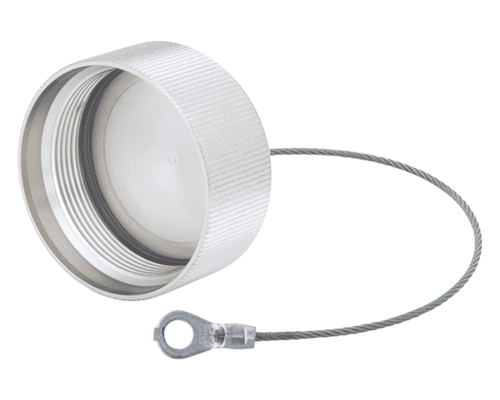

7.015.9S1.003 thumbnail

Part no. : 7.015.9S1.003

Protection Cover for Connectors with Female Locking Thread, with Fixing Rope, IP67 & IP69K

7.015.9S1.002 thumbnail

Part no. : 7.015.9S1.002

Protection Cover for Connectors with Male Locking Thread, with Fixing Rope, IP67 & IP69K

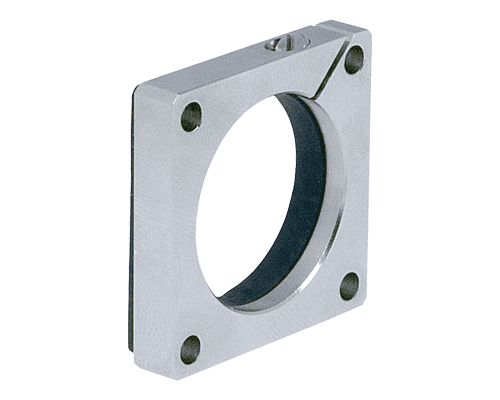

7.010.900.129 thumbnail

Part no. : 7.010.900.129

Flange Adapter for Straight Connectors

7.010.900.215 thumbnail

Part no. : 7.010.900.215

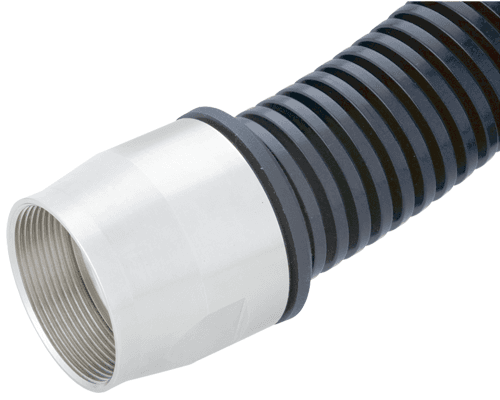

DN23 Conduit Adapter for Cable Connector

7.010.900.217 thumbnail

Part no. : 7.010.900.217

DN29 Conduit Adapter for Cable Connector

7.000.900.920 thumbnail

Part no. : 7.000.900.920

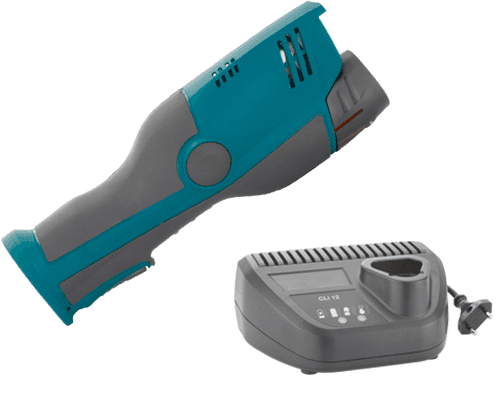

Battery Powered Manual Crimp Tool & Charging Station for Machined Contacts

7.000.900.919 thumbnail

Part no. : 7.000.900.919

Crimp Head for Battery Powered Manual Crimp Tool for Machined Contacts

7.010.900.153 thumbnail

Part no. : 7.010.900.153

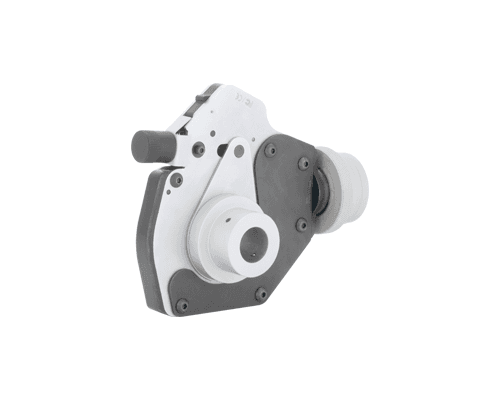

Locator for Battery Powered Manual Crimp Tool for Machined Contacts

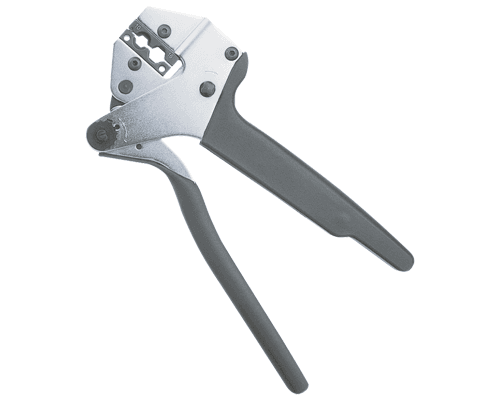

7.000.900.903 thumbnail

Part no. : 7.000.900.903

Crimp Tool for 16.00mm² Machined Contacts
