HUMMEL M23 RJ45 Series

HUMMEL M23 RJ45 Connectors

In brief:

Robust circular connector system with industry standard M23x1 Screw Locking interface.

HUMMEL's M23 RJ45 connector series allows the housing of RJ45 Ethernet connectivity in a shell that can withstand ingress in harsh environments.

The series caters for cable OD’s of up to 7mm and is capable of offering IP67 & IP69K ingress protection in mated state or with the use of a protection cover.

Hummel Distributors - Hummel logo

A renowned manufacturer known for quality, innovation and technical development, offering circular connectors, cable glands and cable protection

DownloadDownload Brochure

Robust circular connector shells allowing the housing of RJ45 Ethernet connectivity in harsh environments.

The HUMMEL RJ45 system uses circular screw locking shells with an M23x1 thread type for a rugged and secure connection.

The metal shells are constructed from brass Alloy, Die cast with Nickel Plating and offer IP67 and IP69K ingress protection.

A wide range of shell variants are available giving the user numerous options on both the panel and cable to meet their specific needs.

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.

We have many products in this series, find what you need using the filters below

28 products match your criteria:

7.R10.400.000 thumbnail

Part no. : 7.R10.400.000

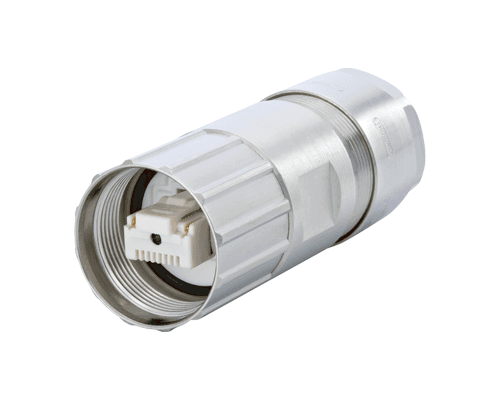

M23 RJ45 Cable Connector Shell, Female Locking Thread, 3-7mm Straight Cable Entry, IP67

7.R20.408.000 thumbnail

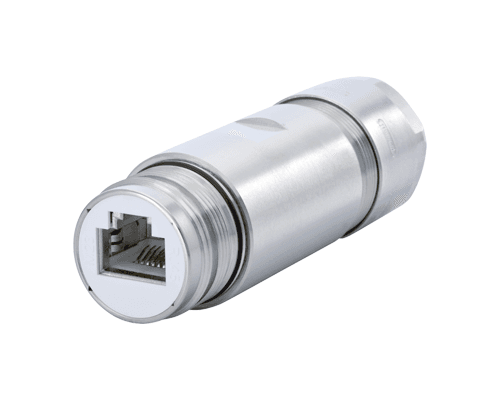

Part no. : 7.R20.408.000

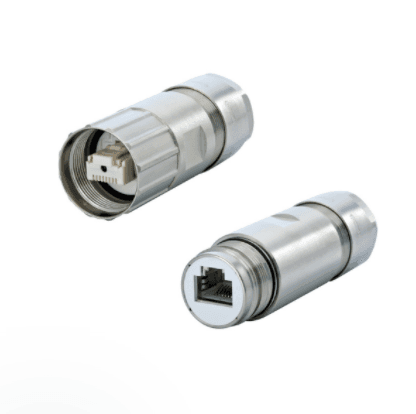

M23 RJ45 Cable Connector Shell with Integrated 8 Way RJ45 Coupler, Male Locking Thread, 3-7mm Straight Cable Entry, IP67

7.R40.008.000 thumbnail

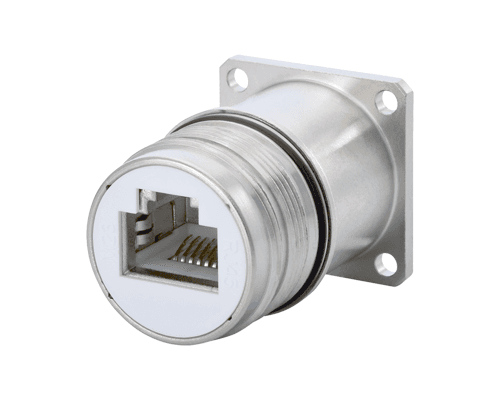

Part no. : 7.R40.008.000

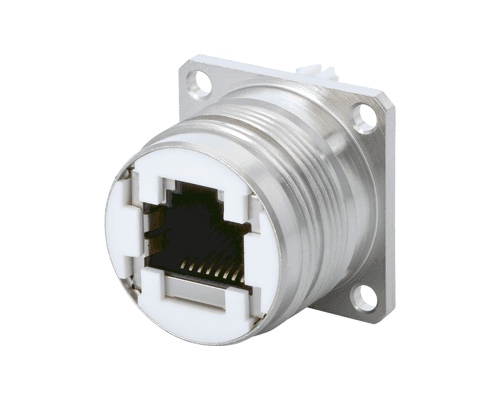

M23 RJ45 Square Flanged Panel Connector Shell with Integrated 8 Way RJ45 Coupler, Male Locking Thread, IP67

7.R40.082.000 thumbnail

Part no. : 7.R40.082.000

M23 RJ45 Square Flanged Panel Connector Shell with Integrated 10 Way RJ45 Coupler, Male Locking Thread, IP67

7.R41.008.000 thumbnail

Part no. : 7.R41.008.000

M23 RJ45 Square Flanged Panel Connector Shell with Integrated 8 Way RJ45 Coupler, Male Locking Thread, IP67

7.R42.008.000 thumbnail

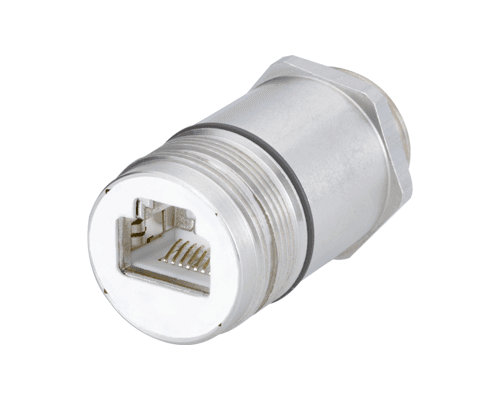

Part no. : 7.R42.008.000

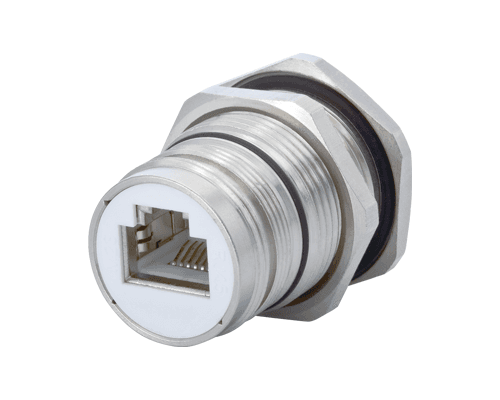

M23 RJ45 Jam-Nut Panel Connector Shell with Integrated 8 Way RJ45 Coupler, Male Locking Thread, IP67

7.R50.008.000 thumbnail

Part no. : 7.R50.008.000

M23 RJ45 Jam-Nut Panel Connector Shell with Integrated 8 Way RJ45 Coupler, Male Locking Thread, IP67

7.R43.108.000 thumbnail

Part no. : 7.R43.108.000

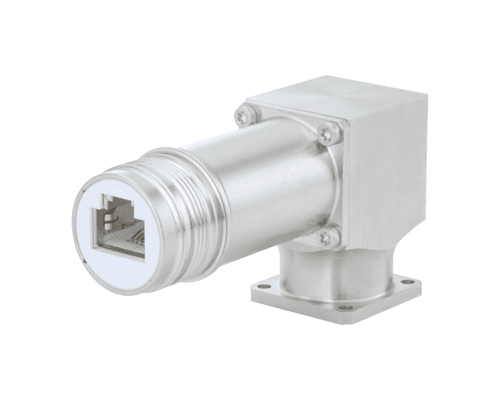

M23 RJ45 Angled Square Flanged Panel Connector Shell with Integrated 8 Way RJ45 Coupler, Male Locking Thread, IP67

7.R45.008.000 thumbnail

Part no. : 7.R45.008.000

M23 RJ45 Square Flanged Panel Connector Shell with Integrated 8 Way RJ45 Coupler, Male Locking Thread, IP67

7.R45.082.000 thumbnail

Part no. : 7.R45.082.000

M23 RJ45 Square Flanged Panel Connector Shell with Integrated 10 Way RJ45 Coupler, Male Locking Thread, IP67

7.R52.408.000 thumbnail

Part no. : 7.R52.408.000

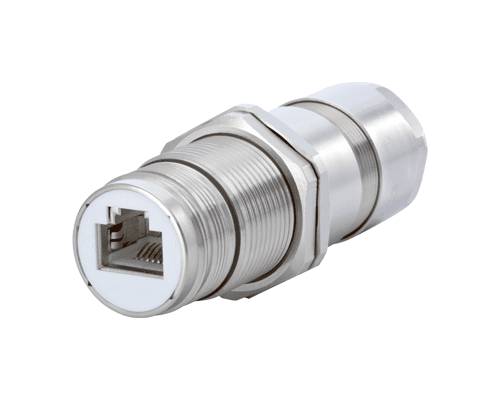

M23 RJ45 Jam-Nut Panel Feedthrough Connector Shell with Integrated 8 Way RJ45 Coupler, Male Locking Thread, 3-7mm Straight Cable Entry, Shieldable, IP67

7.R47.408.000 thumbnail

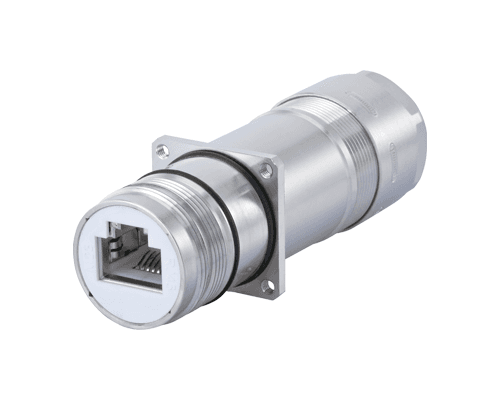

Part no. : 7.R47.408.000

M23 RJ45 Square Flanged Panel Feedthrough Connector Shell with Integrated 8 Way RJ45 Coupler, Male Locking Thread, 3-7mm Straight Cable Entry, Shieldable, IP67

A7RJ-081M41 thumbnail

Part no. : A7RJ-081M41

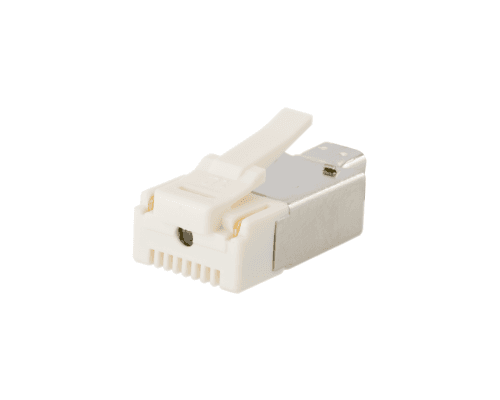

8 Way Male RJ45 Cat 5.e Plug for M23 RJ45 System

A7RJ-821M51 thumbnail

Part no. : A7RJ-821M51

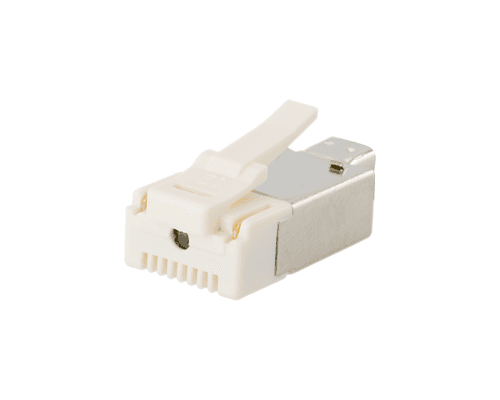

10 Way Male RJ45 Cat 5.e Plug for M23 RJ45 System

7.000.900.101 thumbnail

Part no. : 7.000.900.101

Protection Cover for Connectors with Male Locking Thread, without Fixing Rope, Plastic Version

7.000.900.102 thumbnail

Part no. : 7.000.900.102

Protection Cover for Connectors with Female Locking Thread, without Fixing Rope, Plastic Version

7.010.900.102 thumbnail

Part no. : 7.010.900.102

Protection Cover for Connectors with Male Locking Thread, without Fixing Rope, IP67 & IP69K

7.010.900.183 thumbnail

Part no. : 7.010.900.183

Protection Cover for Connectors with Female Locking Thread, without Fixing Rope, IP67 & IP69K

7.010.9S0.702 thumbnail

Part no. : 7.010.9S0.702

Protection Cover for Connectors with Male Locking Thread, with Fixing Rope, IP67 & IP69K

7.010.9S0.783 thumbnail

Part no. : 7.010.9S0.783

Protection Cover for Connectors with Female Locking Thread, with Fixing Rope, IP67 & IP69K

7.010.9S1.002 thumbnail

Part no. : 7.010.9S1.002

Protection Cover for Connectors with Male Locking Thread, with Fixing Rope, IP67 & IP69K

7.010.9S1.083 thumbnail

Part no. : 7.010.9S1.083

Protection Cover for Connectors with Female Locking Thread, with Fixing Rope, IP67 & IP69K

7.010.900.128 thumbnail

Part no. : 7.010.900.128

Flange Adapter for Straight Connectors

7.010.900.205 thumbnail

Part no. : 7.010.900.205

DN12 Conduit Adapter for M23 Cable Connector

7.010.900.207 thumbnail

Part no. : 7.010.900.207

DN14 Conduit Adapter for M23 Cable Connector

7.010.900.209 thumbnail

Part no. : 7.010.900.209

DN17 Conduit Adapter for M23 Cable Connector

7.010.900.190 thumbnail

Part no. : 7.010.900.190

Torque Tool for Knurled M23 Connector Coupling Ring

7.010.900.192 thumbnail

Part no. : 7.010.900.192

Torque Tool Adapter for Knurled M23 Connector Coupling Ring
