HUMMEL M23 Fast Ethernet PoE Series

Hummel M23 Fast Ethernet PoE Connectors

In brief:

Robust multi-pin circular connector system with industry standard M23x1 Screw Locking interface.

M23 Fast Ethernet PoE connectors are available in 20 way with a current carrying capacity of up to 10A per contact.

The series caters for cable OD’s of up to 17mm, has a wire gauge max. of 1.75mm² and is capable of offering IP67 ingress protection in mated state or with the use of a protection cover.

Hummel Distributors - Hummel logo

A renowned manufacturer known for quality, innovation and technical development, offering circular connectors, cable glands and cable protection

DownloadDownload Brochure

The robust M23 Fast Ethernet PoE from Hummel is a circular connector system ideal for use in the harshest of environments. The M23 Profinet circular screw locking connector provides an industrial system with the capacity to transfer the very highest data rates, with signal and high reliability ensured through inserts within heavy-duty waterproof shells.

The hybrid plug can take up to 5 separated shield voltages, guaranteeing safe data transfer right up to the gigabit range without any crosstalk. Technically HF matched to the corresponding cables, the connectors have an impedance of 100 Ohm and help to prevent excessive attenuation and any disturbing reflections.

Maximum power density in the M23 enclosure is achieved thanks to the employment of 12 additional contacts for the transfer of further signals or power, while four completely shielded Twinax inserts are available for the data cables.

Besides straight and angled cable connectors, there are also equipment connectors for rear and front mounting with crimp or PCB solder terminatoin. Various complementary products are also available for the range, including:

  • I/O modules, which can feed in or tap off signals
  • Adapters for various plug-in systems
  • Mounting flanges
  • Protective sleeve connectors

The M23 Profinet connector can be used in a wide variety of environments and for many purposes, including:

  • Robotics
  • Automation technology
  • Image processing
  • Rail transport technology

This connector system can be used in any location where signals have to be rapidly and securely transmitted despite tough environmental conditions, vibrations or mechanical exposure.

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.

We have many products in this series, find what you need using the filters below

30 products match your criteria:

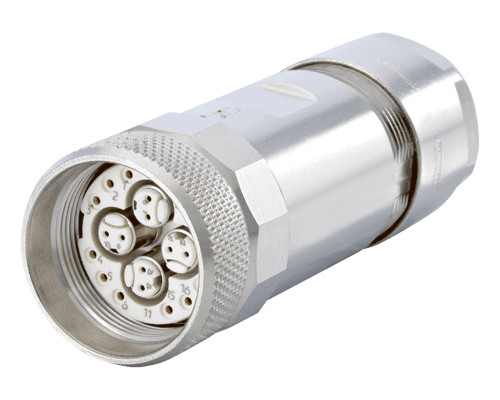

7.108.600.000 thumbnail

Part no. : 7.108.600.000

M23 (FE PoE) Cable Connector Shell, Female Locking Thread, 11-17mm Straight Cable Entry, Shieldable, IP67

7.208.600.000 thumbnail

Part no. : 7.208.600.000

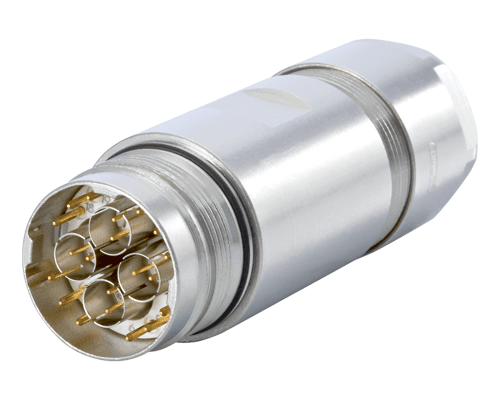

M23 (FE PoE) Cable Connector Shell, Male Locking Thread, 11-17mm Straight Cable Entry, Shieldable, IP67

7.308.600.000 thumbnail

Part no. : 7.308.600.000

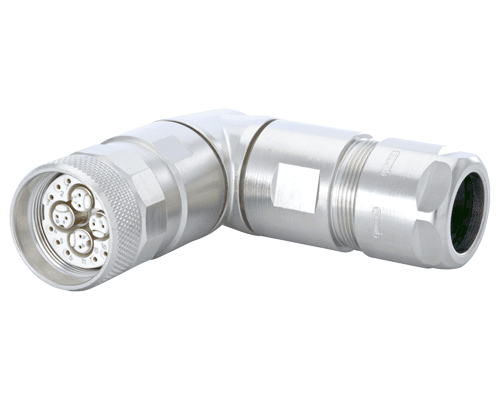

M23 (FE PoE) Cable Connector Shell, Female Locking Thread, 11-17mm Angled Cable Entry, Shieldable, IP67

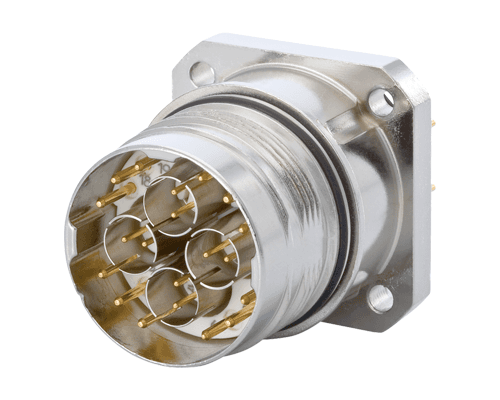

7.408.000.000 thumbnail

Part no. : 7.408.000.000

M23 (FE PoE) Square Flanged Panel Connector Shell, Male Locking Thread, IP67

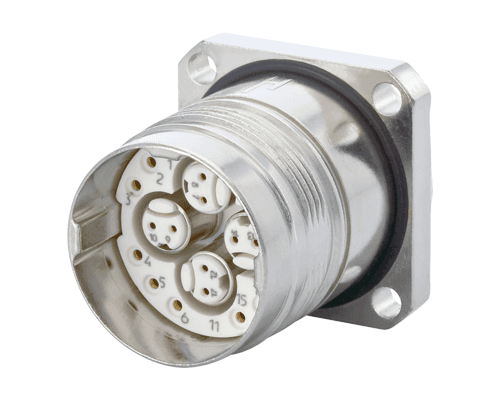

7.468.000.000 thumbnail

Part no. : 7.468.000.000

M23 (FE PoE) Square Flanged Panel Connector Shell, Male Locking Thread, IP67

7.003.920.101 thumbnail

Part no. : 7.003.920.101

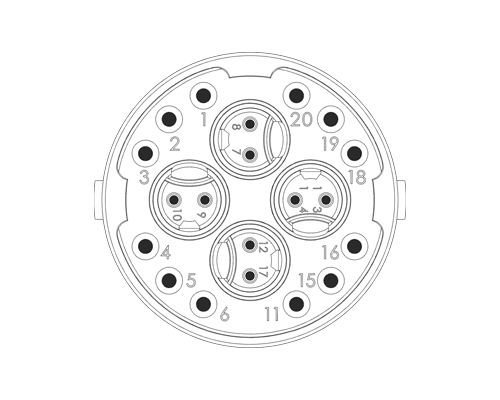

20 Way M23 (FE PoE) Male Insert for Pin Contacts

7.003.920.102 thumbnail

Part no. : 7.003.920.102

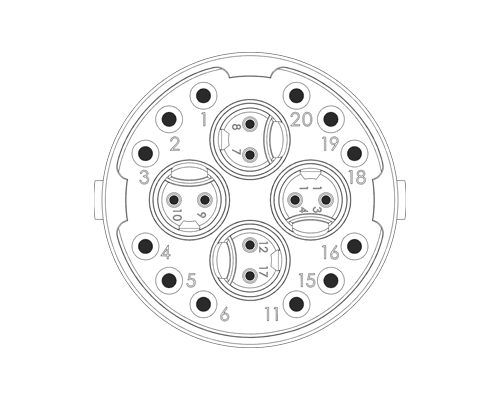

20 Way M23 (FE PoE) Female Insert for Socket Contacts

7.001.920.107 thumbnail

Part no. : 7.001.920.107

20 Way M23 (FE PoE) Male Insert with Dip-Solder Contacts

7.001.920.108 thumbnail

Part no. : 7.001.920.108

20 Way M23 (FE PoE) Female Insert with Dip-Solder Contacts

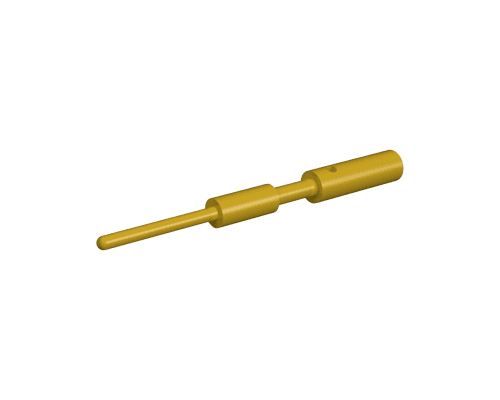

7.010.980.641 thumbnail

Part no. : 7.010.980.641

0.6mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.08-0.34mm²

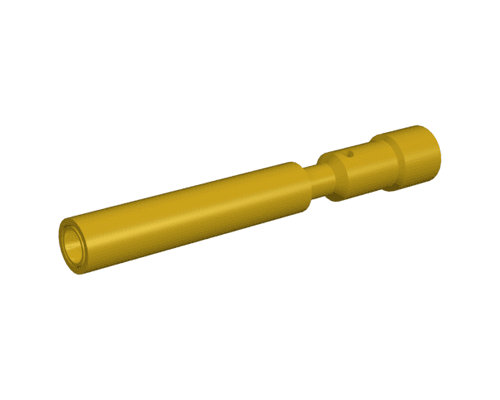

7.010.980.602 thumbnail

Part no. : 7.010.980.602

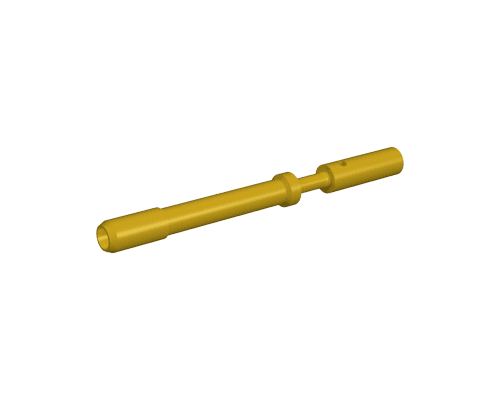

0.6mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.08-0.34mm²

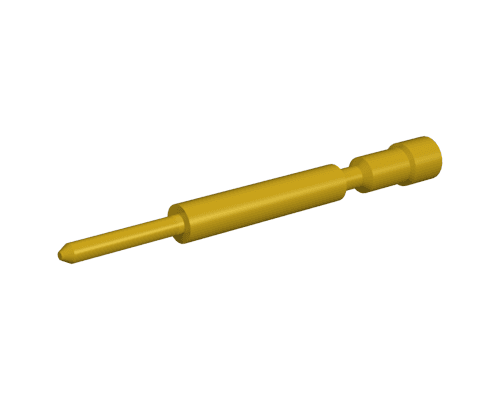

7.010.901.049 thumbnail

Part no. : 7.010.901.049

1mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.14-1.00mm²

7.010.901.045 thumbnail

Part no. : 7.010.901.045

1mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.75-1.50mm²

7.010.901.012 thumbnail

Part no. : 7.010.901.012

1mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.08-0.56mm²

7.010.901.002 thumbnail

Part no. : 7.010.901.002

1mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.34-1.00mm²

7.010.901.022 thumbnail

Part no. : 7.010.901.022

1mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.75-1.50mm²

7.010.901.046 thumbnail

Part no. : 7.010.901.046

1mm Crimp Socket Contact, Machined Construction, Gold Plating, 1.00-1.75mm²

7.000.900.101 thumbnail

Part no. : 7.000.900.101

Protection Cover for Connectors with Male Locking Thread, without Fixing Rope, Plastic Version

7.000.900.102 thumbnail

Part no. : 7.000.900.102

Protection Cover for Connectors with Female Locking Thread, without Fixing Rope, Plastic Version

7.010.900.183 thumbnail

Part no. : 7.010.900.183

Protection Cover for Connectors with Male Locking Thread, without Fixing Rope, IP67 & IP69K

7.010.9S0.783 thumbnail

Part no. : 7.010.9S0.783

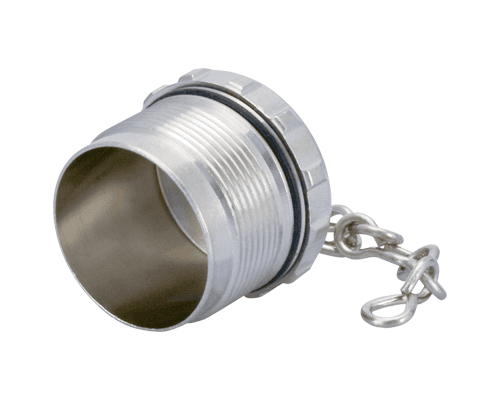

Protection Cover for Connectors with Male Locking Thread, with Fixing Rope, IP67 & IP69K

7.010.9S1.083 thumbnail

Part no. : 7.010.9S1.083

Protection Cover for Connectors with Male Locking Thread, with Fixing Rope, IP67 & IP69K

7.010.908.102 thumbnail

Part no. : 7.010.908.102

Protection Cover for Connectors with Female Locking Thread, without Fixing Rope, IP67 & IP69K

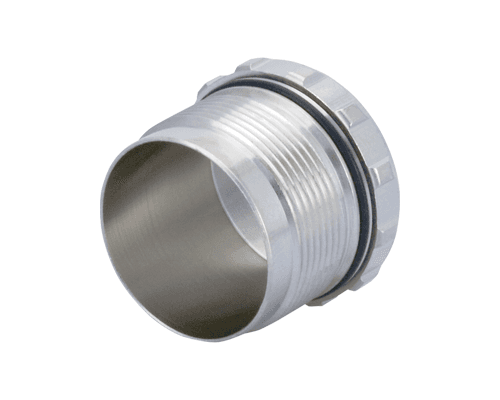

7.010.900.205 thumbnail

Part no. : 7.010.900.205

DN12 Conduit Adapter for M23 Cable Connector

7.010.900.207 thumbnail

Part no. : 7.010.900.207

DN14 Conduit Adapter for M23 Cable Connector

7.010.900.209 thumbnail

Part no. : 7.010.900.209

DN17 Conduit Adapter for M23 Cable Connector

7.010.900.128 thumbnail

Part no. : 7.010.900.128

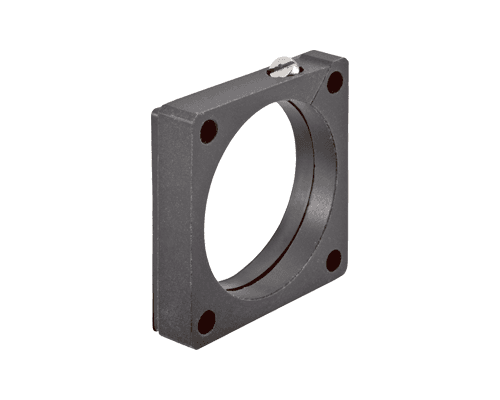

Flange Adapter for Straight Connectors

7.010.900.139 thumbnail

Part no. : 7.010.900.139

Flange Adapter for Moulded Connectors

7.000.900.906 thumbnail

Part no. : 7.000.900.906

Crimp Tool for EMC Sleeves

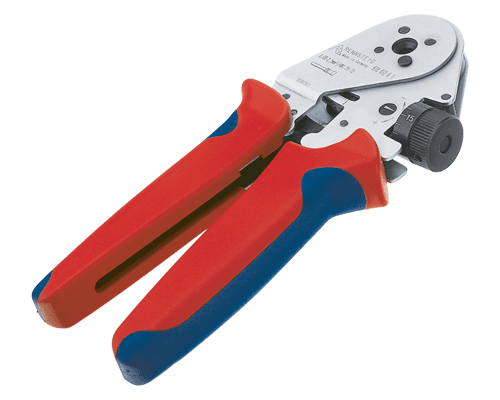

7.000.900.907 thumbnail

Part no. : 7.000.900.907

Crimp Tool for Machined Contacts
