A712-TFS043UP050

HUMMEL / M12 Power Series

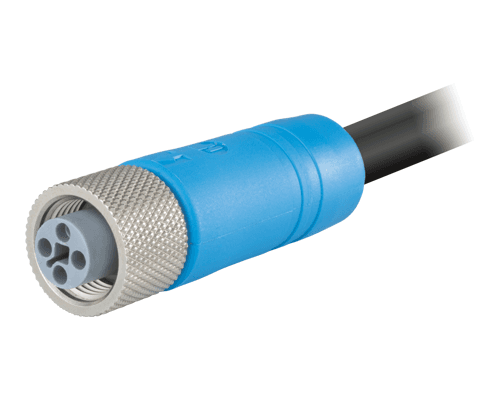

4 Way M12 (T-Coded) Cable Assembly, Straight Female to Open End, 5m Cable with Black PUR Jacket, IP65, IP67 & IP69K

Image may be representative of a range of products, see literature to confirm

Available Downloads

Technical Specification

Part NumberA712-TFS043UP050

Product TypeCable Assembly

BrandHummel

Connector SeriesM12 Power

Cable Assembly TypeSingle Ended

Cable Jacket ColourBlack

Cable Jacket MaterialPUR

Cable Length5m

Cable Operating Temperature-40 to +125°C

Conductor Gauge1.50mm²

Connector Operating Temperature-40 to +125°C

Connector Type 14 Way Female

Connector Type 2NA

Contact PlatingGold

Coupling Area MaterialMetal

Current Rating12A

Voltage Rating63V

Electrical NotesVoltage and nominal current rating is continuous. Not suitable for connecting or disconnecting under load.

Degree of Ingress ProtectionIP65, IP67, IP69K

EMC ShieldNo

Gender of InsertFemale

Housing MaterialPlastic

Keyway/Coding TypeT-Coded

Locking SystemScrew

Min. Mechanical Mating Cycles100

Number of Conductors4

Positive Earth (PE)No

Shell TypeCable Connector

About this Series

A renowned manufacturer known for quality, innovation and technical development, offering circular connectors, cable glands and cable protection

In brief:

Compact circular connector system with industry standard IEC 61076-2-111 M12x1 screw locking interface.

M12 Power connectors offer pin-counts of 4 and 5 with a current carrying capacity of up to 16A per contact.

The series caters for cable OD’s of up to 11mm, has a wire gauge max. of 2.50mm² and is capable of offering IP65, IP67 & IP69K ingress protection in mated state or with the use of a protection cover.

HUMMEL M12 Connectors - Power (S, T, K & L-Coded)

The robust circular waterproof M12 Power connector series from HUMMEL is ideal for use in tough environments.

Sealed to IP67 and IP69K in mated condition, the M12 system provides a ruggedised sealed connection at all times.

Available in 4 & 5 way and with a current carrying of up to 16A the range marks a milestone in miniaturisation. This circular connector is characterised by very high power transfer (up to 630V and 16A) combined with a compact design.

M12 Power works reliably in temperature ranges up to 125°C Celsius. K, L, S and T codings are available.

This connector type enables entirely new applications and capabilities. The range includes;

Straight connectors, male and female thread
Right angle connectors, male and female thread
Panel connectors
Moulded cordsets
Field attachable plugs
Accessories

Inventory levels can be effectively reduced thanks to inserts, contacts and shells containing their own individual part numbers, which can also enable users to adjust the setup to meet their specific requirements.

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.
