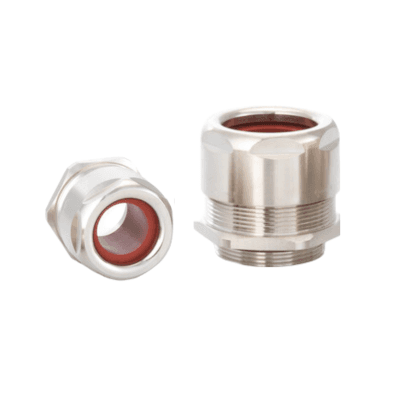

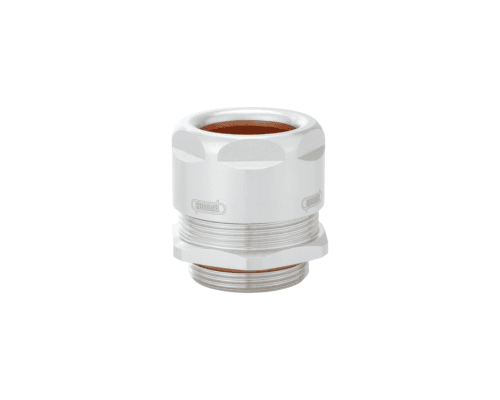

HUMMEL Extreme Temperature Cable Glands

In brief:

Robust cable glands designed to withstand extreme temperatures in demanding industrial environments.

VariaPro Temp series housings are made of nickel-plated brass and the cable seal is VMQ.

The VMQ sealing insert caters for operating temperatures from -60°C to 200°C.

Within the specified clamping range the series can achieve IP68 ingress protection.

Hummel Distributors - Hummel logo

A renowned manufacturer known for quality, innovation and technical development, offering circular connectors, cable glands and cable protection

DownloadDownload Brochure

HUMMEL have developed the VariaPro Temp range for use in environments where the temperatures are either extremely hot or extremely cold. These glands have been planned and designed in a way so they can withstand these extreme temperatures and still work efficiently and effectively for whichever process is being carried out. These glands are to be used in cold environments such as in the Arctic or in extreme temperatures like industrial forges or furnaces.

This gland has very different advantages to the rest of this range. This gland is made up of Nickel-Plated Brass. This material essentially hardens the surface of the gland which makes it tougher to break down. This enables the gland to be able to withstand freezing or boiling temperatures without cracking or showing any sign of damage.

The O-ring and clamping material is VMQ Silicone. This material has a long service life and is capable of withstanding extreme temperatures. This durable gland boasts an impressive temperature range of -60°C to 200°C.

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.

We have many products in this series, find what you need using the filters below

16 products match your criteria:

1.751.1200.50 thumbnail

Part no. : 1.751.1200.50

M12 Metal Cable Gland for Extreme Temperatures, 2-9mm Cable Entry, IP68 (VariaPro-Temp)

1.751.1200.51 thumbnail

Part no. : 1.751.1200.51

M12 Metal Cable Gland for Extreme Temperatures, 5-8mm Cable Entry, IP68 (VariaPro-Temp)

1.751.1600.50 thumbnail

Part no. : 1.751.1600.50

M16 Metal Cable Gland for Extreme Temperatures, 4-12mm Cable Entry, IP68 (VariaPro-Temp)

1.751.1600.51 thumbnail

Part no. : 1.751.1600.51

M16 Metal Cable Gland for Extreme Temperatures, 8-12mm Cable Entry, IP68 (VariaPro-Temp)

1.751.2000.50 thumbnail

Part no. : 1.751.2000.50

M20 Metal Cable Gland for Extreme Temperatures, 7-14mm Cable Entry, IP68 (VariaPro-Temp)

1.751.2000.51 thumbnail

Part no. : 1.751.2000.51

M20 Metal Cable Gland for Extreme Temperatures, 10-14mm Cable Entry, IP68 (VariaPro-Temp)

1.751.2500.50 thumbnail

Part no. : 1.751.2500.50

M25 Metal Cable Gland for Extreme Temperatures, 11-18mm Cable Entry, IP68 (VariaPro-Temp)

1.751.2500.51 thumbnail

Part no. : 1.751.2500.51

M25 Metal Cable Gland for Extreme Temperatures, 14.5-18mm Cable Entry, IP68 (VariaPro-Temp)

1.751.3200.50 thumbnail

Part no. : 1.751.3200.50

M32 Metal Cable Gland for Extreme Temperatures, 16-25mm Cable Entry, IP68 (VariaPro-Temp)

1.751.3200.51 thumbnail

Part no. : 1.751.3200.51

M32 Metal Cable Gland for Extreme Temperatures, 20.5-25mm Cable Entry, IP68 (VariaPro-Temp)

1.751.4000.50 thumbnail

Part no. : 1.751.4000.50

M40 Metal Cable Gland for Extreme Temperatures, 21-32mm Cable Entry, IP68 (VariaPro-Temp)

1.751.4000.51 thumbnail

Part no. : 1.751.4000.51

M40 Metal Cable Gland for Extreme Temperatures, 26.5-32mm Cable Entry, IP68 (VariaPro-Temp)

1.751.5000.50 thumbnail

Part no. : 1.751.5000.50

M50 Metal Cable Gland for Extreme Temperatures, 31-42mm Cable Entry, IP68 (VariaPro-Temp)

1.751.5000.51 thumbnail

Part no. : 1.751.5000.51

M50 Metal Cable Gland for Extreme Temperatures, 35-42mm Cable Entry, IP68 (VariaPro-Temp)

1.751.6300.50 thumbnail

Part no. : 1.751.6300.50

M63 Metal Cable Gland for Extreme Temperatures, 41-54mm Cable Entry, IP68 (VariaPro-Temp)

1.751.6300.51 thumbnail

Part no. : 1.751.6300.51

M63 Metal Cable Gland for Extreme Temperatures, 46.5-54mm Cable Entry, IP68 (VariaPro-Temp)
