Hirschmann CM Series

Hirschmann CM Series

In brief:

Robust multi-pin circular connector system with industry standard MIL-C-5015/VG 95342 screw locking functionality.

CM connectors offer pin-counts of 4 to 17 with a current carrying capacity of up to 10A per contact.

The series caters for cable OD’s of up to 14mm, has a wire gauge max. of 1.50mm² and is capable of offering IP67 ingress protection in mated state or with the use of a protection cover.

Hirschmann logo

High-quality products for the automation industry, delivered at great value

DownloadDownload Brochure

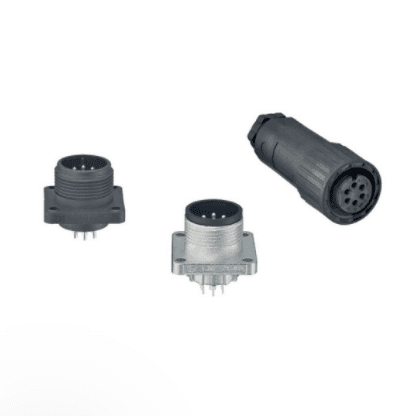

The Hirschmann CM series is a range of circular cable and panel connectors with 4-17 way configurations for use in tough environments.

The CM series offers users a low cost but robust system that can withstand the elements present in an industrial atmosphere.

The connectors when mated seal to IP67 and therefore have a high degree of resistance to external influences such as water and industrial fluids.

Panel receptacles are available in male gender only and with optional protection cap to remain sealed in unmated state.

Cable connectors are available in female gender only and in field attachable format.

Key features include:

  • 4-17 way layouts
  • Reliable transmission properties even under high stress
  • High degree of resistance to external influences
  • Easy installation due to few components
  • Protection class up to IP67

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.

We have many products in this series, find what you need using the filters below

23 products match your criteria:

932458100 thumbnail

Part no. : 932458100

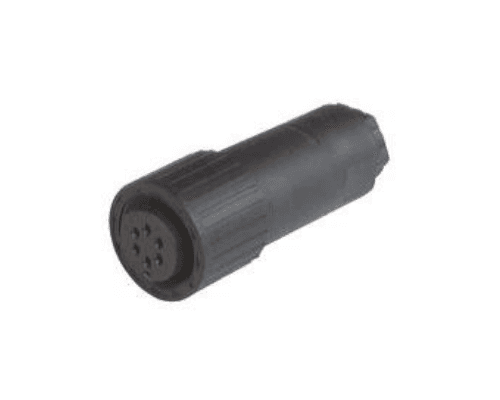

6 Way Female Cable Connector with Solder Contacts, 8-10mm Straight Cable Entry, IP67 (CM 06 EA 14S-6 S)

932460100 thumbnail

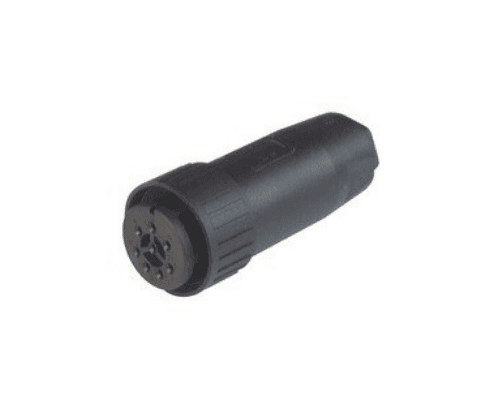

Part no. : 932460100

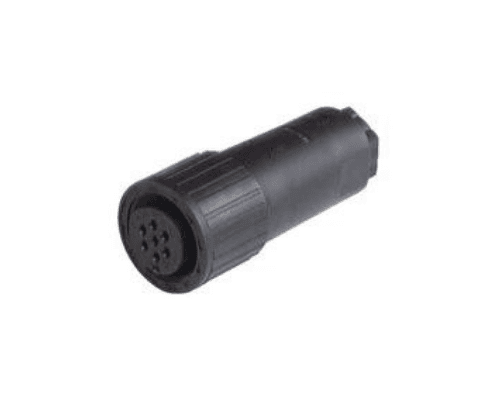

7 Way Female Cable Connector with Solder Contacts, 8-10mm Straight Cable Entry, IP67 (CM 06 EA 14S-61 S)

932449100 thumbnail

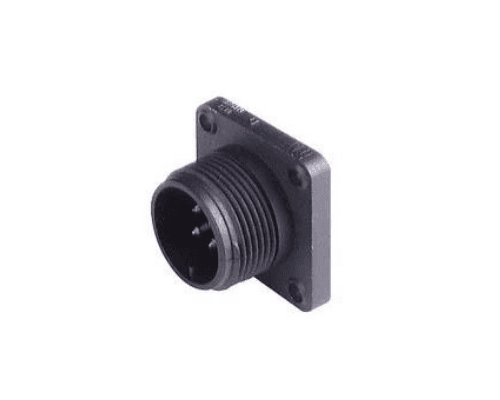

Part no. : 932449100

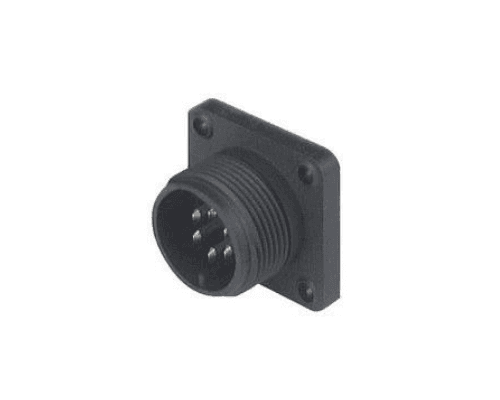

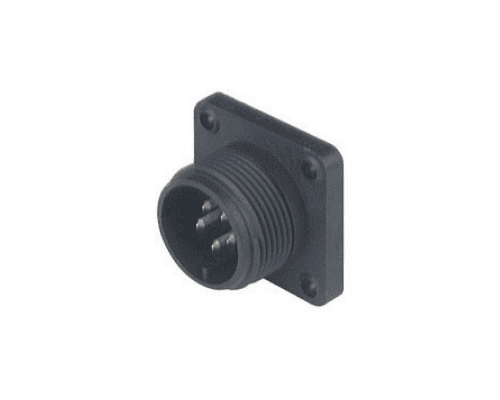

4 Way Male Square Flanged Panel Connector with Solder Contacts, IP67 (CM 02 E 14S-2 P)

932843100 thumbnail

Part no. : 932843100

5 Way Male Square Flanged Panel Connector with Solder Contacts, IP67 (CM 02 E 14S-5 P)

932845100 thumbnail

Part no. : 932845100

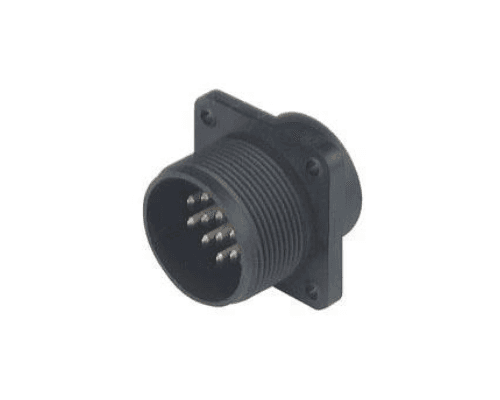

8 Way Male Square Flanged Panel Connector with Solder Contacts, IP67 (CM 02 E 20-7 P)

932988100 thumbnail

Part no. : 932988100

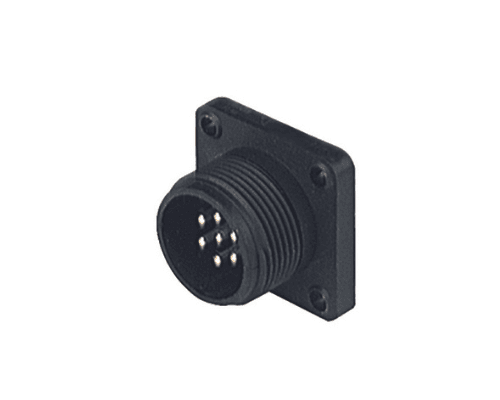

7 Way Male Square Flanged Panel Connector with Solder Contacts, with Filter Selection, IP67 (CM 02 L 14S-61 P F)

934390001 thumbnail

Part no. : 934390001

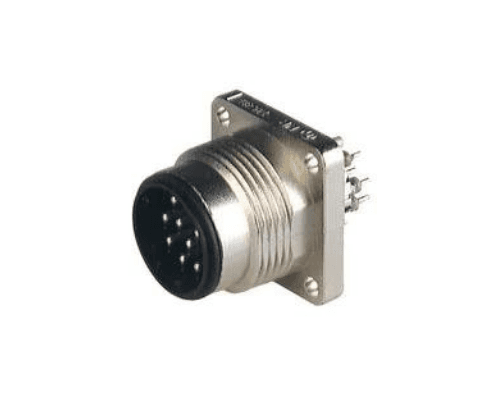

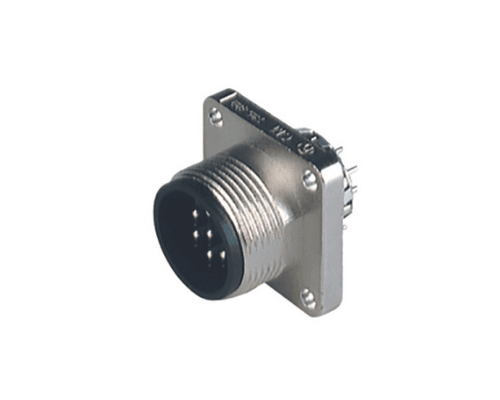

7 Way Male Square Flanged Panel Connector with Solder Contacts, with Filter Selection, IP67 (CM 02 L 14S-61 P F Metal)

934391001 thumbnail

Part no. : 934391001

7 Way Male Square Flanged Panel Connector with Solder Contacts, IP67 (CM 02 L 14S-61 P Metal)

932457100 thumbnail

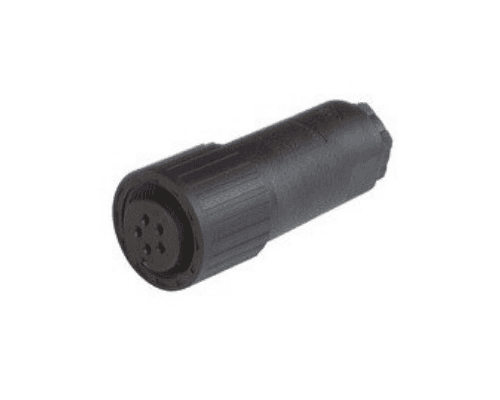

Part no. : 932457100

4 Way Female Cable Connector with Solder Contacts, 8-10mm Straight Cable Entry, IP67 (CM 06 EA 14S-2 S)

932841100 thumbnail

Part no. : 932841100

5 Way Female Cable Connector with Solder Contacts, 8-10mm Straight Cable Entry, IP67 (CM 06 EA 14S-5 S)

932451100 thumbnail

Part no. : 932451100

6 Way Male Square Flanged Panel Connector with Solder Contacts, IP67 (CM 02 E 14S-6 P)

932455100 thumbnail

Part no. : 932455100

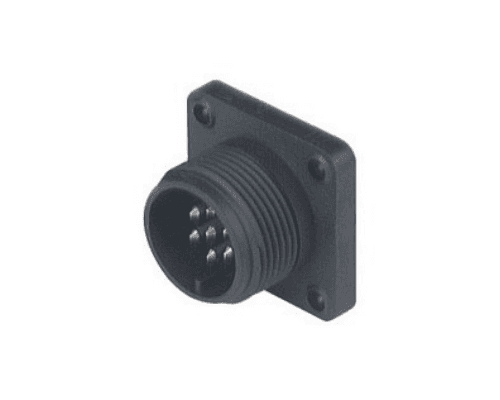

7 Way Male Square Flanged Panel Connector with Solder Contacts, IP67 (CM 02 E 14S-61 P)

932842100 thumbnail

Part no. : 932842100

8 Way Female Cable Connector with Solder Contacts, 10-12mm Straight Cable Entry, IP67 (CM 06 EA 20-7 S)

933062100 thumbnail

Part no. : 933062100

14 Way Male Square Flanged Panel Connector with Solder Contacts, IP67 (CM 02 E 20-27 P)

933063100 thumbnail

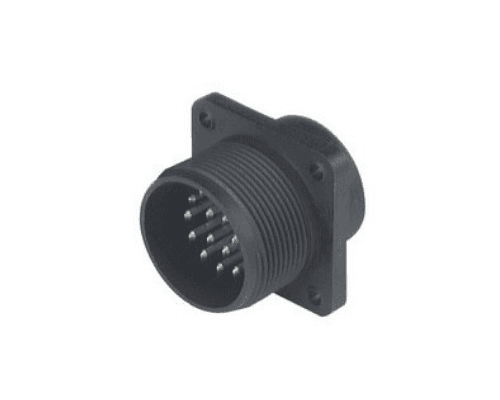

Part no. : 933063100

17 Way Male Square Flanged Panel Connector with Solder Contacts, IP67 (CM 02 E 20-29 P)

933067100 thumbnail

Part no. : 933067100

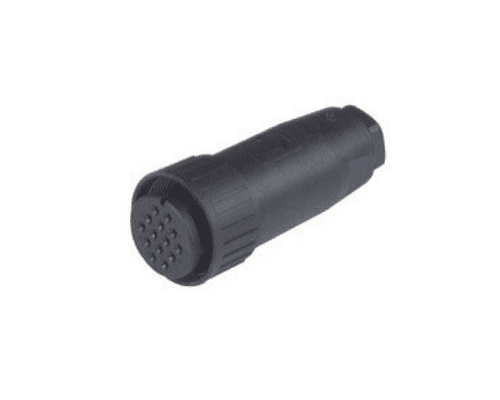

14 Way Female Cable Connector with Solder Contacts, 12-14mm Straight Cable Entry, IP67 (CM 06 EA 20-27 S)

933068100 thumbnail

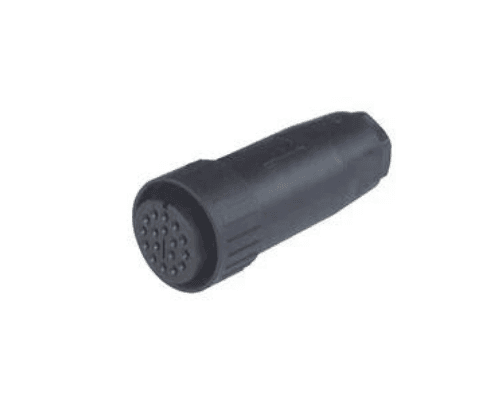

Part no. : 933068100

17 Way Female Cable Connector with Solder Contacts, 12-14mm Straight Cable Entry, IP67 (CM 06 EA 20-29 S)

831621100 thumbnail

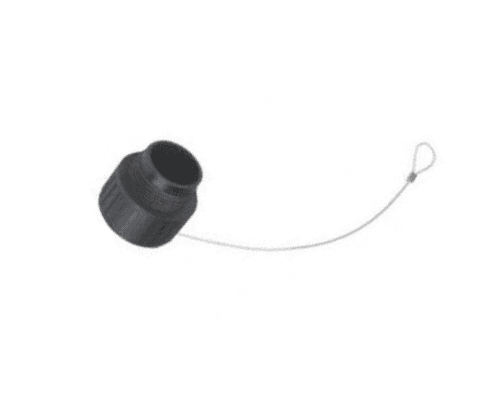

Part no. : 831621100

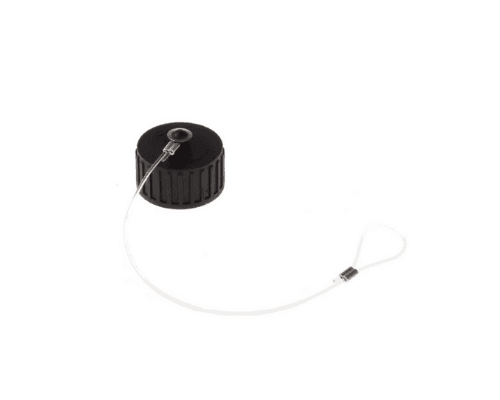

Protection Cover for CM Series Female Cable Connector, with Fixing Rope, IP67 (CM 06 SD 14S)

733321002 thumbnail

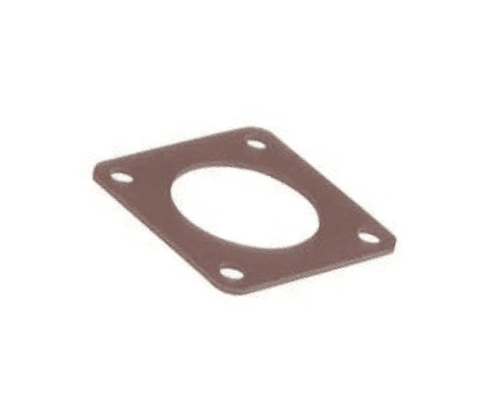

Part no. : 733321002

Flat Gasket for CM Series Square Flanged Panel Connector (CM 02 D 14S)

733818002 thumbnail

Part no. : 733818002

Flat Gasket for CM Series Square Flanged Panel Connector (CM 02 D20)

831620100 thumbnail

Part no. : 831620100

Protection Cover for CM Series Male Panel Connector, with Fixing Rope, IP67 (CM 02 SD 14S)

831766100 thumbnail

Part no. : 831766100

Protection Cover for CM Series Male Panel Connector, with Fixing Rope, IP67 (CM 02 SD 20)

831767100 thumbnail

Part no. : 831767100

Protection Cover for CM Series Female Cable Connector, with Fixing Rope, IP67 (CM 06 SD 20)
