Hirschmann / CA Series

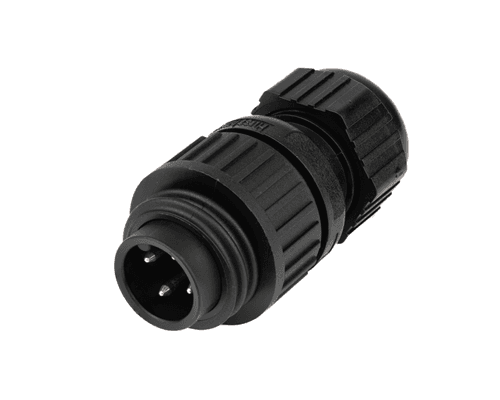

4 Way Male Cable Connector with Screw Contacts, 6-12mm Straight Cable Entry, IP65 & IP67 (CA 3 LS)

Image may be representative of a range of products, see literature to confirm

Available Downloads

Datasheet

Brochure

Quick Quote

Technical Specification

Part Number934124100

Product TypeConnector

BrandHirschmann

Connector SeriesCA

ApprovalsUL, CSA, VDE

Backshell IncludedYes

Body OrientationStraight

Connector TypeCable Connector

Contact PlatingSilver

Contacts IncludedYes

Coupling Area MaterialPlastic

Current Rating16A AC, 10A DC

Voltage Rating400V AC, 230V DC

Electrical NotesSee literature for derating curves

Degree of Ingress ProtectionIP65, IP67

EMC Shielding CapabilityNo

Gender of InsertMale

Housing MaterialPlastic

Keyway/Coding TypeStandard

Locking SystemScrew

Min. Mechanical Mating Cycles50

Max. Wire Gauge/Cross-Sectional Area2.50mm²

Min. Cable Entry (mm)6

Max. Cable Entry (mm)12

Number of Ways4

Operating Temperature-40 to +105°C

Positive Earth (PE)Yes

Termination Method/TechnologyScrew

About this Series

High-quality products for the automation industry, delivered at great value

In brief:

Robust multi-pin circular connector system with industry standard RD24 screw locking functionality.

CA connectors offer pin-counts of 4 and 7 with a current carrying capacity of up to 16A per contact.

The series caters for cable OD’s of up to 12mm, has a wire gauge max. of 2.50mm² and is capable of offering IP65 & IP67 ingress protection in mated state or with the use of a protection cover.

Belden's Hirschmann CA series is a range of circular cable and panel connectors in 4 and 7 way variants which can be used in demanding environments.

The CA series offers users a low cost but robust system that can withstand the elements present in an industrial environment.

When mated, the connectors seal to IP65 & IP67 and therefore have a high degree of resistance to external influences such as water and industrial fluids.

Panel receptacles are available in both male and female gender with optional protection cap to remain sealed in unmated state.

Cable connectors are available in male and female gender and in straight or angled orientation and can be coupled with either a panel receptacle or another cable connector if the opposite gender to provide an in-line connection.

Key features include:

Available in 4 & 7 way versions
Provides reliable transmission properties even under high stress
High degree of resistance to external influences
Easy installation due to few components
Protection class up to IP67

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.
