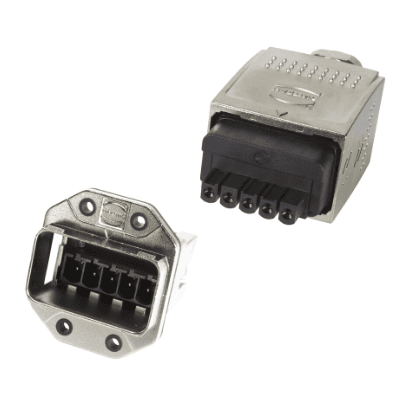

HARTING Connectivity & Networks generates solutions throughout the triad of Installation Technology, Device Connectivity, and Automation IT for all automation lifelines – namely data, signals and power.
In line with this strategic course, the HARTING PushPull equipment interfaces provide universal solutions for specific user applications. The range of available contact inserts extends from solutions for 1/10 Gigabit Ethernet through to 690 V / 16 A power supply applications.
A consistent, ongoing innovation process ensures that users of HARTING ’s continuously expanding PushPull product range always benefit from the latest interface technology – combining the life lines of devices in IP65 / IP67 housings with simple and reliable operation.
The HARTING PushPull V4 Industrial Connectors selection Guide supports you in choosing the ideal solution for your specific application from one the numerous interface combinations available, while keeping the focus set squarely on the specific lifeline to be transferred.
Based on the interface function required, you select the suitable contact insert for the PCB and a corresponding bulkhead housing, and complete the connection by opting for the appropriate connectors, system cables, and accessories. The housing‘s size depends on the contact insert you selected, while environmental conditions determine the housing material.
Drawing on these strengths, PushPull is an ideal solution for IP65 / IP67 Device Connectivity featuring convenient handling and universal functionality for all lifelines.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001.
- No of Contacts: 2-20
- Locking Mechanism: Push Pull
- Termination: Crimp, IDC, Dip-Solder, SMT, Cage Clamp, Wave Solder
- Wire Gauge Max: 2.50mm²
- Cable Diameter Range: 4-13mm
- Max. Voltage: 48-690V
- Max. Current: 0.5-16A
- Ingress Protection: IP65, IP67
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
