HARTING Han-Eco® Series

HARTING’s Han-Eco® is a range of hoods and housings made of high-performance plastic. Due to their resistance to environmental impacts, the hoods and housings are suitable for both indoor and outdoor applications and are capable of offering IP65 or IP66 in mated condition. The use of plastic also brings significant weight and cost advantages over metal hoods and housings.

Han-Eco® connectors are categorised into three sub-series as follows;

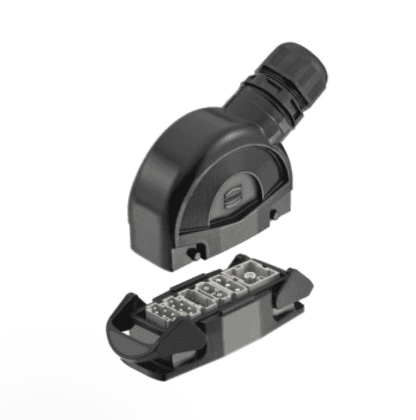

Han-Eco® Modular
A wide range of Han-Modular® modules can be directly inserted into the hoods and housings of Han-Eco®Modular. No screws and no tools are needed for assembly. The installation is based on a simple and reliable locking solution called "Click & Mate". This opens up a multitude of new application possibilities for plastic hoods and housings, indoor as well as outdoor.

The special feature: Compared to the equivalent counterparts within the metal Han® B standard, each hood/housing of the four standard sizes of Han-Eco® Modular offers enough space for one more module.

This sub-series offers IP65 ingress protection in mated condition or with the use of a protection cover when disconnected.

Han-Eco® A
Due to its slim design, the Han-Eco® A series offers an attractive plastic alternative for many applications. Han-Eco® A allows for an easy installation directly onto the switch cabinet wall, from inside of the cabinet, due to a timesaving rear mounting option. The holding frame with its pre-assembled inserts engages from the rear into the bulkhead mounted housing that is to be attached to the cabinet. In addition, the conventional mounting of inserts and frames from the front is still possible.

This sub-series offers IP65 ingress protection in mated condition or with the use of a protection cover when disconnected.

Han-Eco® B
The Han-Eco® B series forms the plastic equivalent of the standard Han® B metal housing series. Like the overall industry standard, the plastic series is available in sizes 6B to 24B. Both monobloc as well as modular inserts can be inserted, the latter in combination with the Han-Modular® hinged frame. Like Han-Eco® A connectors, Han-Eco® B enables the rear mounting of both types of inserts, monobloc and modular, into the bulkhead mounted housing.

This sub-series offers IP66 ingress protection in mated condition or with the use of a protection cover when disconnected.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form above or simply call us on 01744 815001
