08-3080-000-000

binder / Sensor & Automation Cable

Sensor & Automation Cable, 3 x 0.34mm², Black PUR Jacket, 300V, 100m Length

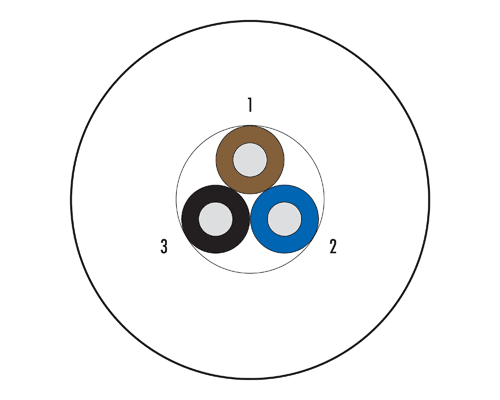

08-3080-000-000 thumbnailImage may be representative of a range of products, see literature to confirm

Available Downloads

Downloaded iconDatasheet thumbnail
Datasheet
Downloaded iconBrochure thumbnail
Brochure
Quick Quote

Technical Specification

Part Number08-3080-000-000
Product TypeCable
Brandbinder
Connector Seriesbinder Sensor & Automation Cable
Cable Diameter4.3mm
Cable Jacket ColourBlack
Cable Jacket MaterialPUR
Cable Jacket ThicknessNot Specified
Voltage Rating300V
Drain WireNo
EMC ShieldNo
Number of Wires/Conductors3
RipcordNo
Supplied Length100m
Temperature Range-50 to +90°C (fixed), -25 to +90°C (flex)
Wire Gauge/Cross-Sectional Area0.34mm²
Wire Strand Size0.10mm
Wire TypeStranded

About this Series

binder connectors

Robust and compact circular connectors from one of the industry’s most trusted brands

In brief:

A range of cables to compliment binder's compact subminiature, miniature and automation connectors.

Cables are available in 3, 4, 5, 6 & 8 way and with grey PVC or black PUR jackets.

100m lengths are supplied as standard and other lengths are available on request.

Cables are available in shielded or unshielded format, in 3, 4, 5, 6 & 8 way and with grey PVC or black PUR jackets.

100m lengths are supplied as standard and other lengths are available on request.

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.
