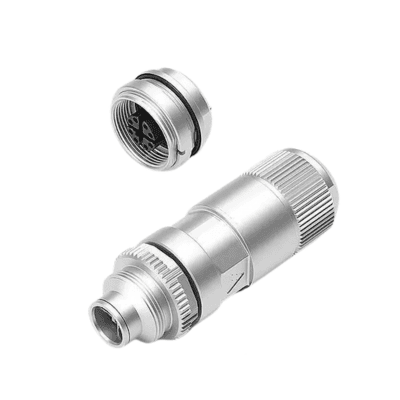

binder M16 X-Coded (415 Series)

In brief:

Compact multi-pin circular connector system with Industry Standard M16x0.75 screw locking interface.

M16 X-Coded connectors are available in a 8 way format with a current carrying capacity of up to 0.5A per contact.

The series caters for cable OD’s of up to 9mm, has a wire gauge max. of 0.33mm² and is capable of offering IP67 ingress protection in mated state or with the use of a protection cover.

binder connectors

Robust and compact circular connectors from one of the industry’s most trusted brands

DownloadDownload Brochure

The 415 series of X-coded M16 connectors can accommodate data transfer rates up to an impressive 10 Gbits/s.

The 8-contact series includes both male and female cable connector and a female rear-mounting panel connector.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001

We have many products in this series, find what you need using the filters below

11 products match your criteria:

99-4171-00-08 thumbnail

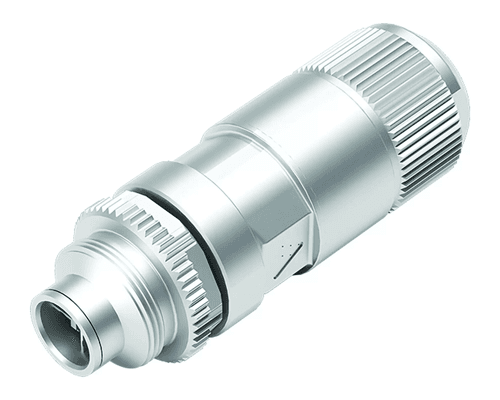

Part no. : 99-4171-00-08

8 Way M16 (X-Coded) Male Cable Connector with IDC Contacts, 5.5-9mm Straight Cable Entry, Shieldable, IP67 (415 Series)

99-4172-00-08 thumbnail

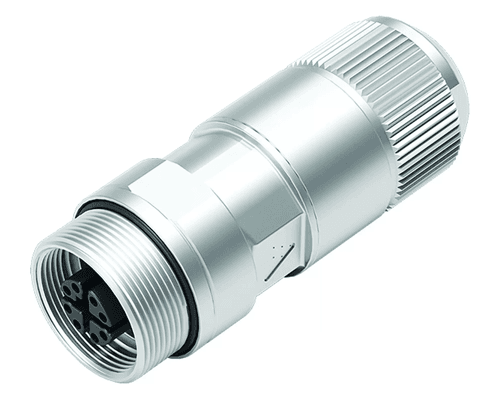

Part no. : 99-4172-00-08

8 Way M16 (X-Coded) Female Cable Connector with IDC Contacts, 5.5-9mm Straight Cable Entry, Shieldable, IP67 (415 Series)

99-4174-90-08 thumbnail

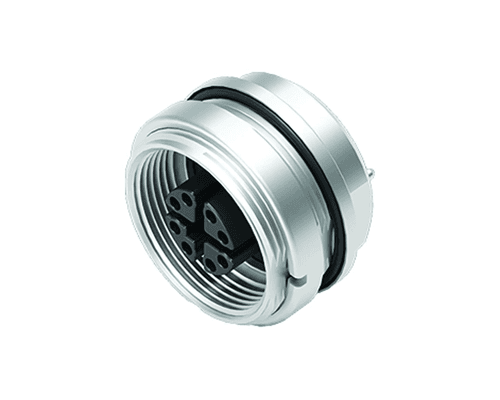

Part no. : 99-4174-90-08

8 Way M16 (X-Coded) Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (415 series)

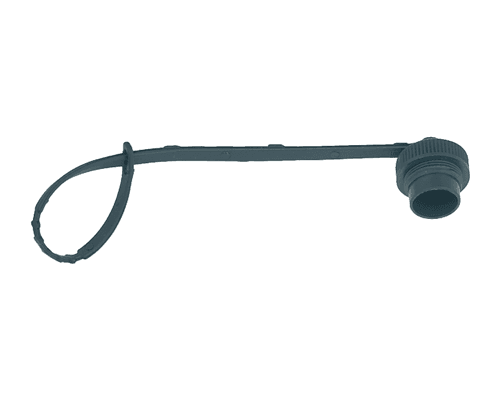

08-1077-000-000 thumbnail

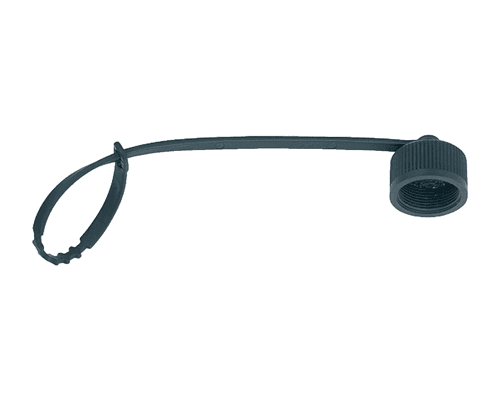

Part no. : 08-1077-000-000

Protection Cover for Male Cable Connector, with Fixing Rope, IP67

08-1078-000-000 thumbnail

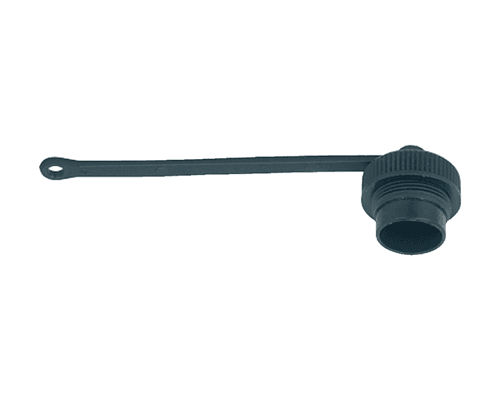

Part no. : 08-1078-000-000

Protection Cover for Female Cable Connector, with Fixing Rope, IP67

08-1080-000-000 thumbnail

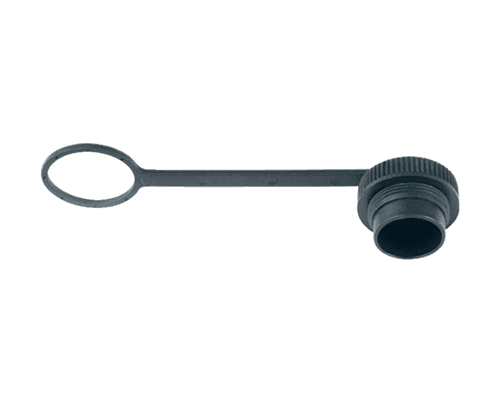

Part no. : 08-1080-000-000

Protection Cover for Female Panel Connector, with Fixing Rope, IP67

08-2671-000-000 thumbnail

Part no. : 08-2671-000-000

Protection Cover for Female Panel Connector, with Fixing Rope, IP67

08-0045-000-001 thumbnail

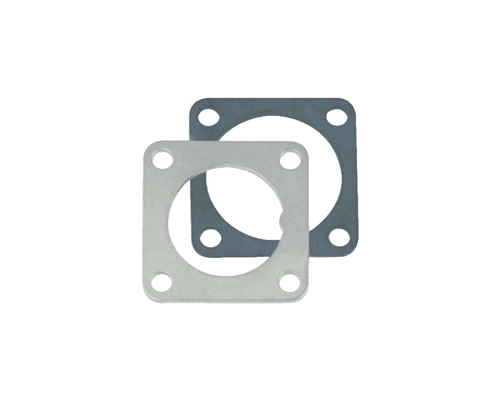

Part no. : 08-0045-000-001

Square Flange for Panel Connector, IP40

01-0146-001 thumbnail

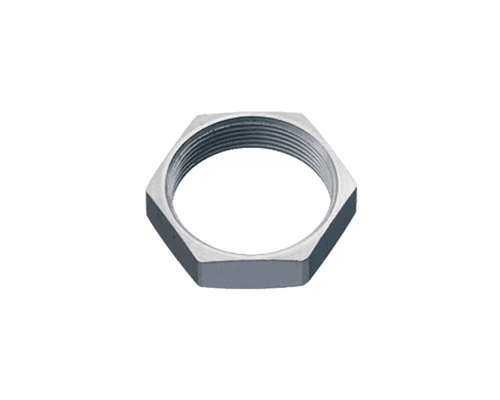

Part no. : 01-0146-001

Metal Hexagonal Lock Nut with 18 Thread

01-5006-001 thumbnail

Part no. : 01-5006-001

Metal Hexagonal Lock Nut with 18 Thread

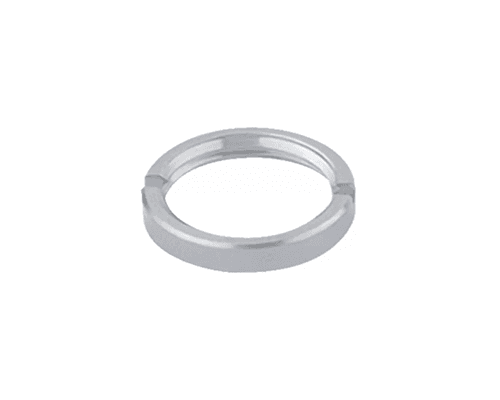

01-0010-001 thumbnail

Part no. : 01-0010-001

Metal Circular Lock Nut with M18 Thread
