binder / Snap-in IP40 Subminiature (719, 709 Series)

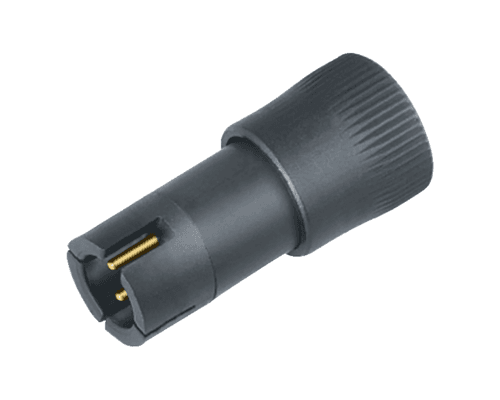

5 Way Snap-in Male Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (719 Series)

Image may be representative of a range of products, see literature to confirm

Available Downloads

Technical Specification

Part Number09-9789-71-05

Product TypeConnector

Brandbinder

Connector SeriesSnap-in IP40 Subminiature (719, 709 Series)

Backshell IncludedYes

Body OrientationStraight

Connector TypeCable Connector

Contact PlatingGold

Contacts IncludedYes

Coupling Area MaterialPlastic

Current Rating3A

Voltage Rating60V

Electrical NotesRated impluse voltage @ 800V

Degree of Ingress ProtectionIP40

EMC Shielding CapabilityNo

Gender of InsertMale

Housing MaterialPlastic

Keyway/Coding TypeStandard

Locking SystemSnap-in

Min. Mechanical Mating Cycles100

Max. Wire Gauge/Cross-Sectional Area0.25mm²

Min. Cable Entry (mm)4

Max. Cable Entry (mm)5

Number of Ways5

Operating Temperature-25 to +70°C

Positive Earth (PE)No

Shell sizeNA

Termination Method/TechnologySolder

About this Series

Robust and compact circular connectors from one of the industry’s most trusted brands

In brief:

Compact multi-pin circular connector system with Snap-in locking mechanism.

Snap-in subminiature IP40 connectors offer pin-counts from 3 to 5 with a current carrying capacity of up to 3A per contact.

The series caters for cable OD’s of up to 5mm, has a wire gauge max. of 0.25mm² and is capable of offering IP40 ingress protection in mated state.

Binder Snap-in IP40 Subminiature Connectors (719, 709 Series)

The binder snap-in IP40 series is a small range of subminiature connectors suitable for low-cost applications that require a simple locking mechanism.

The series offers field attachable cable versions with or without strain relief in 3, 4 and 5 way with solder cup termination or as a single ended overmould in 2 & 5 metres as standard.

Panel mount receptacles come with termination options of both solder and dip solder for PCB use.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
