binder M12 D-Coded / M12 X-Coded (825, 876 Series)
In brief:
Compact circular connector system with industry standard IEC 61076-2-101 M12x1 screw locking interface.
M12 D & X-Coded connectors offer pin-counts of 4 and 8 with a current carrying capacity of up to 4A per contact.
The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 0.75mm² and is capable of offering IP67 ingress protection in mated state or with the use of a protection cover.
Robust and compact circular connectors from one of the industry’s most trusted brands
Download Brochurebinder M12 D-coded series are a range of metal-shelled circular connectors for industrial networks and harsh commercial environments.
The connectors are available with various termination technology, shell designs and cable specification, all aimed at providing quick and easy installations.
Connectors feature innovative features such as Iris Springs for quick and reliable termination between the plug and the cable shield.
binder M12 X-Coded versions are ideal for industrial network applications in harsh environments and offer transmition rates up to 10 Gbps and conform to IEC 61076-2-109.
The range boasts variants such as male to male double-ended cordsets and male M12 to male RJ45 CAT6A cordsets. All cordsets are available in standard 2, 5 and 10 meter lengths.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001
We have many products in this series, find what you need using the filters below
76 products match your criteria:
Part no. : 99-3729-810-04

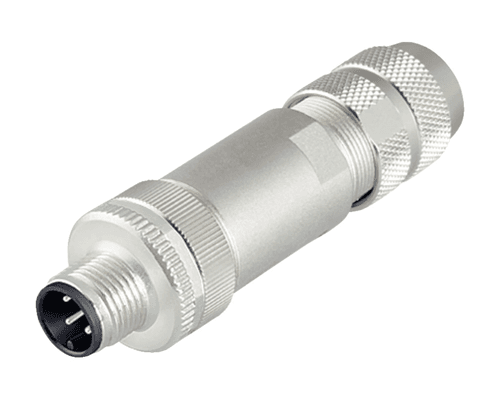

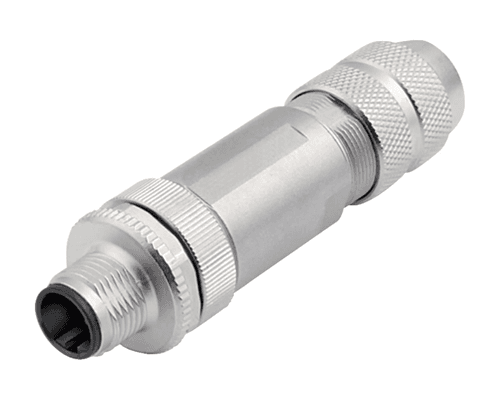

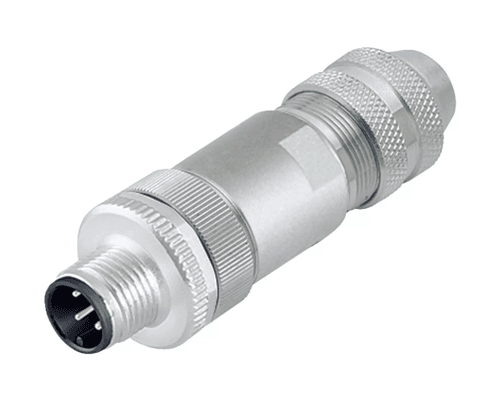

4 Way M12 (D-Coded) Male Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, Shieldable, IP67 (825 Series)
Part no. : 99-3727-810-04
4 Way M12 (D-Coded) Male Cable Connector with Screw Contacts, 5-8mm Straight Cable Entry, Shieldable, IP67 (825 Series)
Part no. : 99-3729-995-04
4 Way M12 (D-Coded) Male Cable Connector with Screw Contacts, 5.5-8.6mm Straight Cable Entry, Shieldable, IP67 (825 Series)
Part no. : 99-3721-810-04
4 Way M12 (D-Coded) Male Cable Connector for Pin Contacts, 5-8mm Straight Cable Entry, Shieldable, IP67 (825 Series)
Part no. : 99-3729-820-04

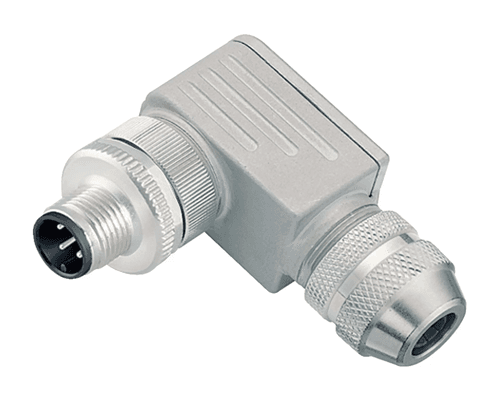

4 Way M12 (D-Coded) Male Cable Connector with Screw Contacts, 6-8mm Angled Cable Entry, Shieldable, IP67 (825 Series)
Part no. : 99-3727-820-04

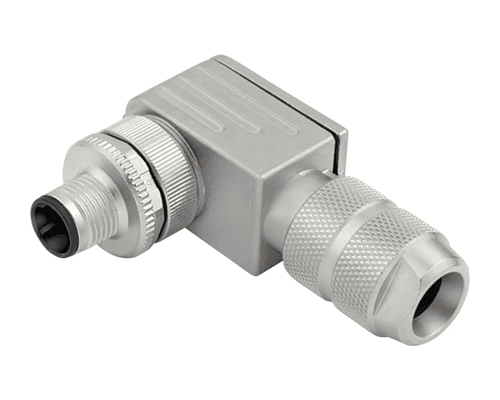

4 Way M12 (D-Coded) Male Cable Connector with Screw Contacts, 5-8mm Angled Cable Entry, Shieldable, IP67 (825 Series)
Part no. : 99-3721-820-04

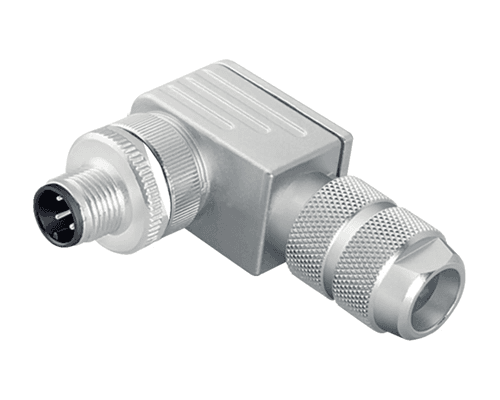

4 Way M12 (D-Coded) Male Cable Connector for Pin Contacts, 5-8mm Angled Cable Entry, Shieldable, IP67 (825 Series)
Part no. : 99-3730-810-04

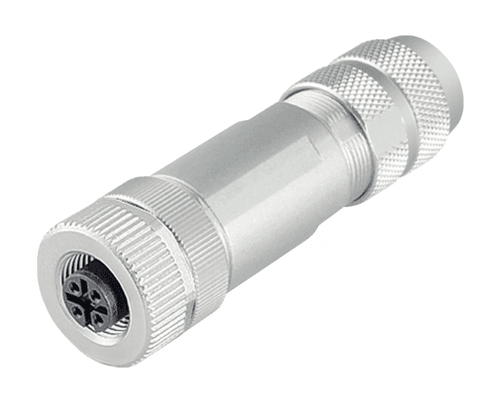

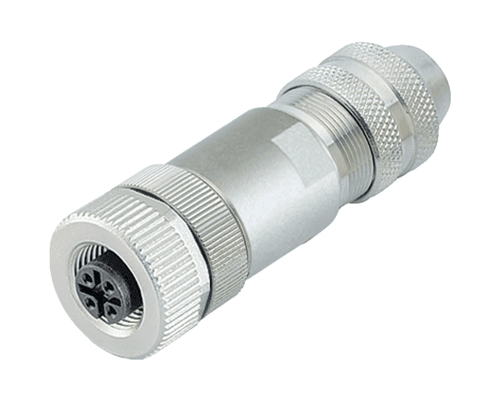

4 Way M12 (D-Coded) Female Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, Shieldable, IP67 (825 Series)
Part no. : 99-3728-810-04
4 Way M12 (D-Coded) Female Cable Connector with Screw Contacts, 5-8mm Straight Cable Entry, Shieldable, IP67 (825 Series)
Part no. : 99-3730-820-04

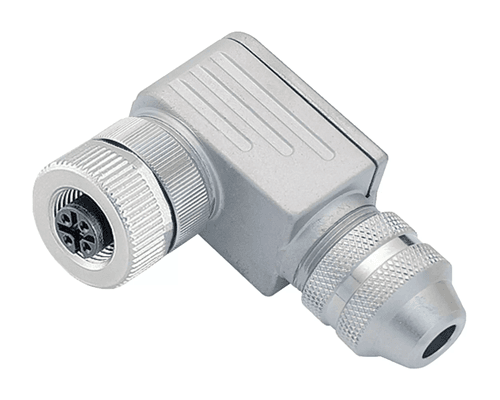

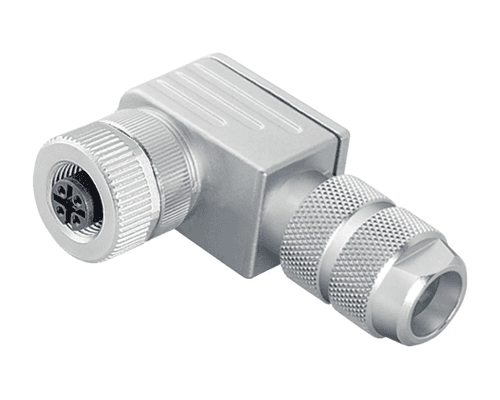

4 Way M12 (D-Coded) Female Cable Connector with Screw Contacts, 6-8mm Angled Cable Entry, Shieldable, IP67 (825 Series)
Part no. : 99-3728-820-04
4 Way M12 (D-Coded) Female Cable Connector with Screw Contacts, 5-8mm Angled Cable Entry, Shieldable, IP67 (825 Series)
Part no. : 99-3731-200-04
4 Way M12 (D-Coded) Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (825 Series)
Part no. : 99-3731-201-04
4 Way M12 (D-Coded) Male Jam-Nut Panel Connector with Dip-Solder Contacts, with Shielding Sheet, IP67 (825 Series)
Part no. : 99-3731-202-04

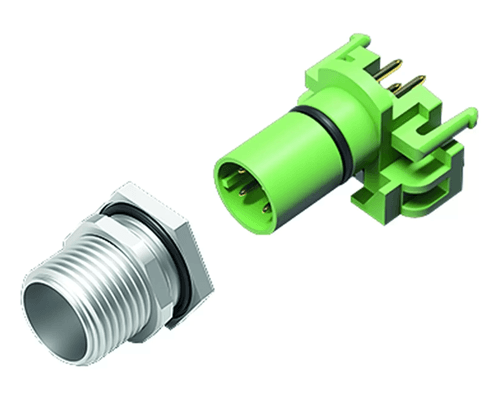

4 Way M12 (D-Coded) Male Jam-Nut Panel Connector with Angled Dip-Solder Contacts, IP67 (825 Series)
Part no. : 99-3731-203-04
4 Way M12 (D-Coded) Male Jam-Nut Panel Connector with Angled Dip-Solder Contacts, with Shielding Sheet, IP67 (825 Series)
Part no. : 99-3731-401-04

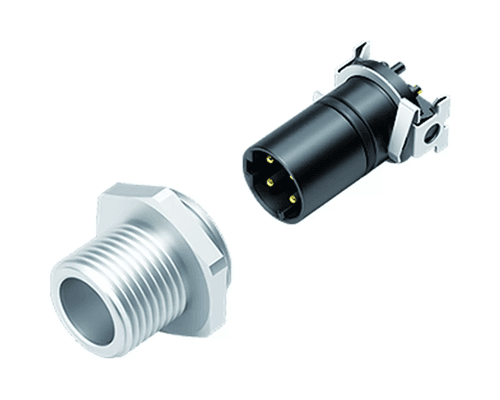

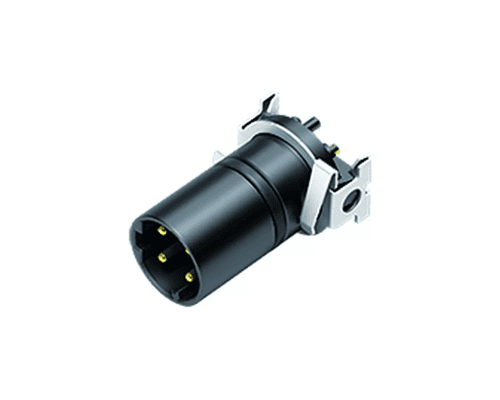

4 Way M12 (D-Coded) Male Jam-Nut Panel Connector with SMT Contacts, IP67 (825 Series)
Part no. : 09-0731-601-04

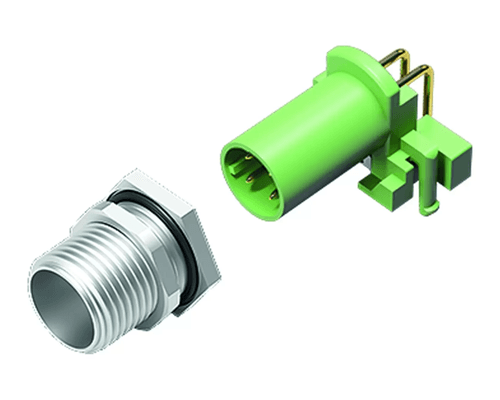

4 Way M12 (D-Coded) Male Jam-Nut Panel Connector Insert with SMT Contacts, IP67 (825 Series)
Part no. : 70-3733-705-04

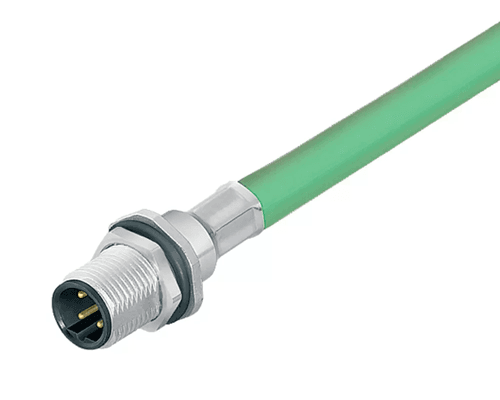

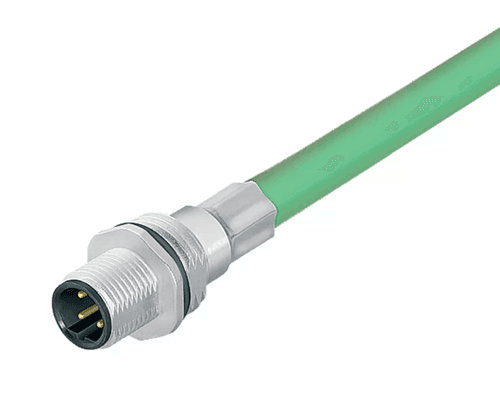

4 Way M12 (D-Coded) Male Jam-Nut Panel Connector with Pre-Cabled Contacts, 0.5m Shielded PROFINET Cable with Green PUR Jacket, IP67 (876 Series)
Part no. : 70-3733-706-04
4 Way M12 (D-Coded) Male Jam-Nut Panel Connector with Pre-Cabled Contacts, 0.5m Shielded PROFINET Cable with Green PUR Jacket, IP67 (876 Series)
Part no. : 76-0136-0011-00404–0200

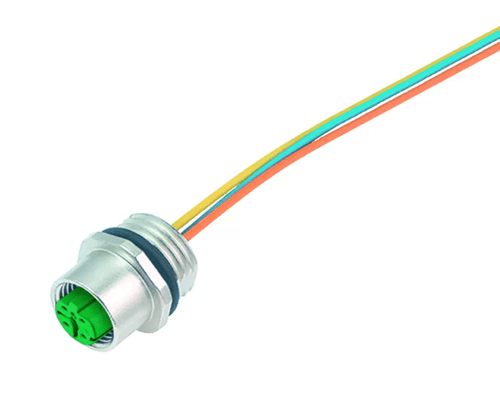

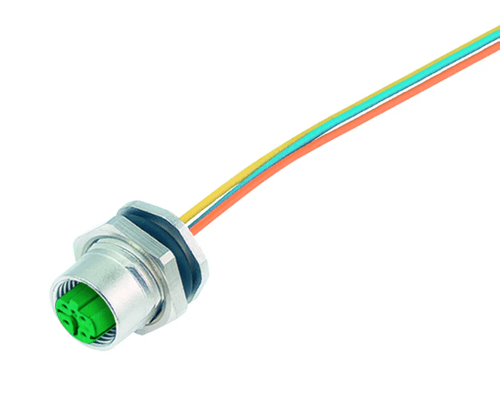

4 Way M12 (D-Coded) Female Jam-Nut Panel Connector with Pre-Wired Contacts, IP67 (825 Series)
Part no. : 76-0236-0011-00404–0200
4 Way M12 (D-Coded) Female Jam-Nut Panel Connector with Pre-Wired Contacts, IP67 (825 Series)
Part no. : 76-0536-1011-00404–0200
4 Way M12 (D-Coded) Female Jam-Nut Panel Connector with Pre-Wired Contacts, IP67 (825 Series)
Part no. : 86-0136-0000-00404

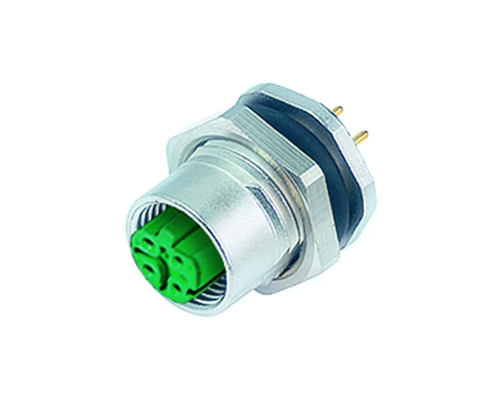

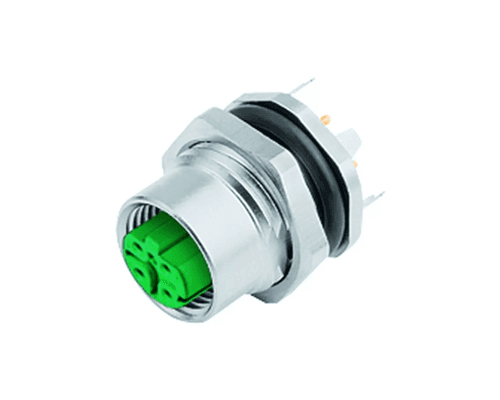

4 Way M12 (D-Coded) Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (825 Series)
Part no. : 86-0536-1000-00404
4 Way M12 (D-Coded) Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (825 Series)
Part no. : 86-0536-1120-00404
4 Way M12 (D-Coded) Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (825 Series)
Part no. : 99-3732-200-04

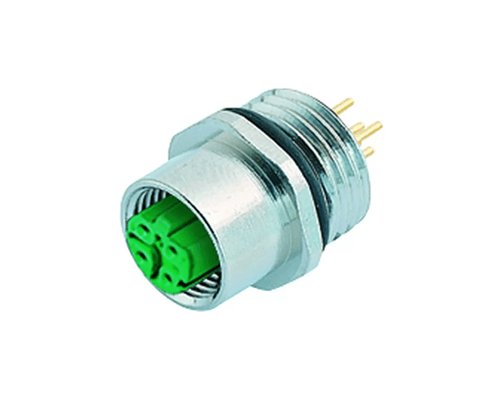

4 Way M12 (D-Coded) Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (825 Series)
Part no. : 99-3732-201-04
4 Way M12 (D-Coded) Female Jam-Nut Panel Connector with Dip-Solder Contacts, with Shielding Sheet, IP67 (825 Series)
Part no. : 99-3732-202-04
4 Way M12 (D-Coded) Female Jam-Nut Panel Connector with Angled Dip-Solder Contacts, IP67 (825 Series)
Part no. : 99-3732-203-04
4 Way M12 (D-Coded) Female Jam-Nut Panel Connector with Angled Dip-Solder Contacts, with Shielding Sheet, IP67 (825 Series)
Part no. : 99-3732-401-04
4 Way M12 (D-Coded) Female Jam-Nut Panel Connector with SMT Contacts, IP67 (825 Series)
Part no. : 99-3732-402-04
4 Way M12 (D-Coded) Female Jam-Nut Panel Connector with SMT Contacts, IP67 (825 Series)
Part no. : 09-0732-601-04

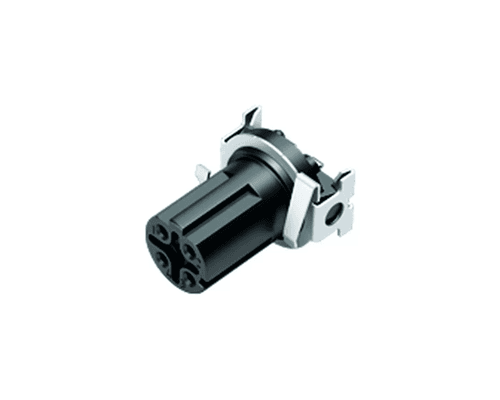

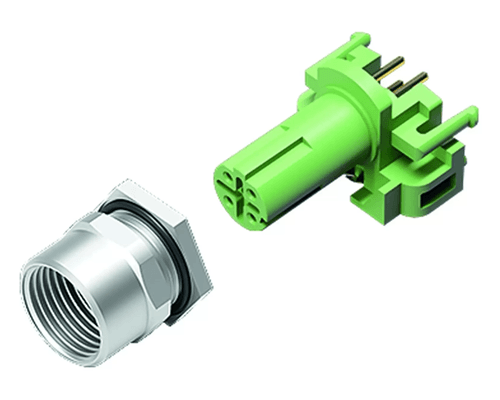

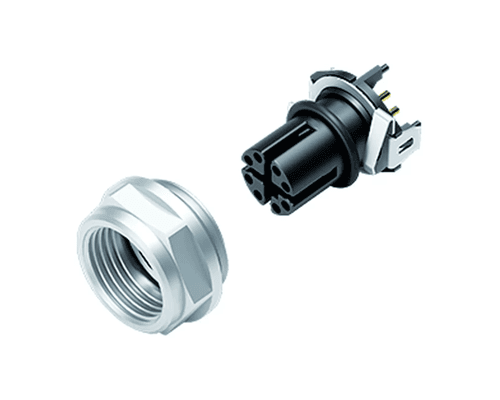

4 Way M12 (D-Coded) Female Jam-Nut Panel Connector Insert with SMT Contacts, IP67 (825 Series)
Part no. : 70-3734-705-04

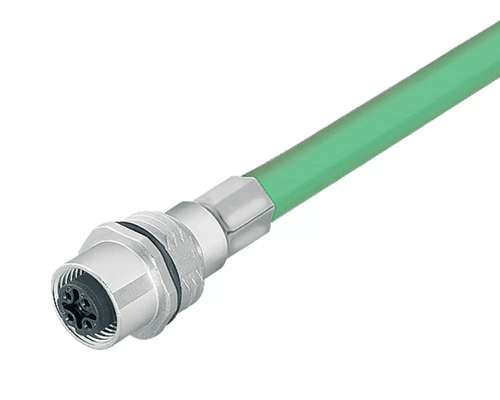

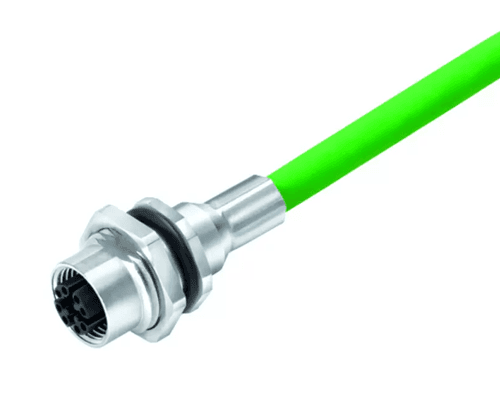

4 Way M12 (D-Coded) Female Jam-Nut Panel Connector with Pre-Cabled Contacts, 0.5m Shielded PROFINET Cable with Green PUR Jacket, IP67 (876 Series)
Part no. : 70-3734-706-04
4 Way M12 (D-Coded) Female Jam-Nut Panel Connector with Pre-Cabled Contacts, 0.5m Shielded PROFINET Cable with Green PUR Jacket, IP67 (876 Series)
Part no. : 09-5245-00-04

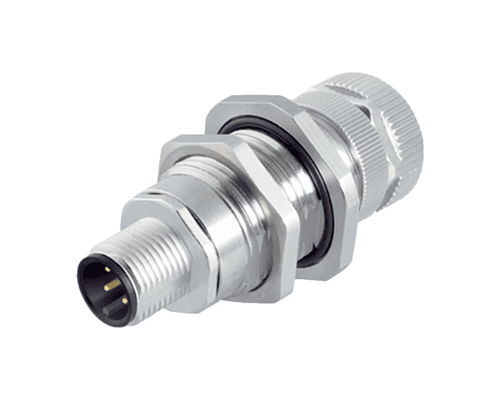

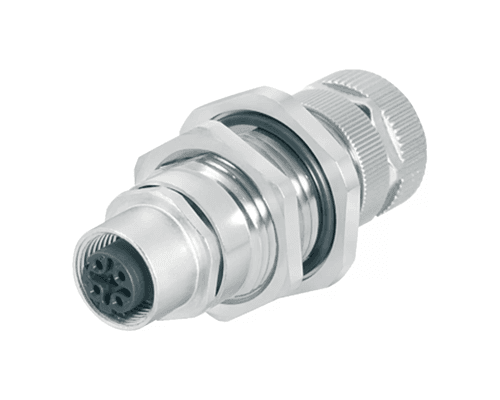

4 Way M12 (D-Coded) Jam-Nut Panel Feedthrough Connector, Male to Female, IP67 (825 Series)
Part no. : 09-5246-00-04
4 Way M12 (D-Coded) Jam-Nut Panel Feedthrough Connector, Female to Female, IP67 (825 Series)
Part no. : 99-3787-810-08

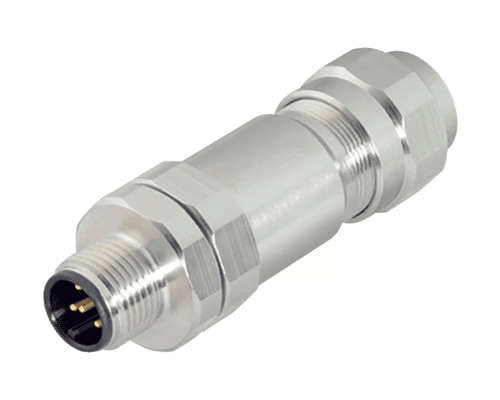

8 Way M12 (X-Coded) Male Cable Connector with IDC Contacts, 5.5-9mm Straight Cable Entry, Shieldable, IP67 (825 Series)
Part no. : 99-3788-810-08

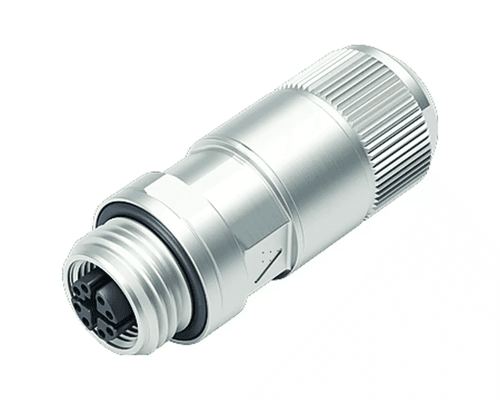

8 Way M12 (X-Coded) Female Cable Connector with IDC Contacts, 5.5-9mm Straight Cable Entry, Shieldable, IP67 (825 Series)
Part no. : 99-9647-810-04
4 Way RJ45 Cat. 6A Male Cable Connector with IDC Contacts, 5-9mm Straight Cable Entry, Shieldable, IP20 (825 Series)
Part no. : 99-9687-805-08

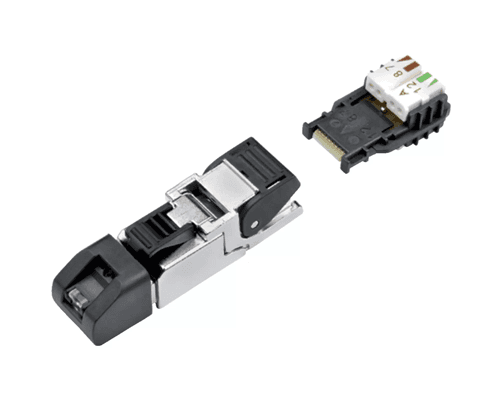

8 Way RJ45 Cat. 6A Male Cable Connector with IDC Contacts, 5-9mm Straight Cable Entry, Shieldable, IP20 (825 Series)
Part no. : 99-9687-810-08
8 Way RJ45 Cat. 6A Male Cable Connector with IDC Contacts, 5-9mm Straight Cable Entry, Shieldable, IP20 (825 Series)
Part no. : 99-9687-809-08
8 Way RJ45 Cat. 6A Male Cable Connector with IDC Contacts, 5-9mm Straight Cable Entry, Shieldable, IP20 (825 Series)
Part no. : 99-9687-814-08
8 Way RJ45 Cat. 6A Male Cable Connector with IDC Contacts, 5-9mm Straight Cable Entry, Shieldable, IP20 (825 Series)
Part no. : 09-3782-95-08

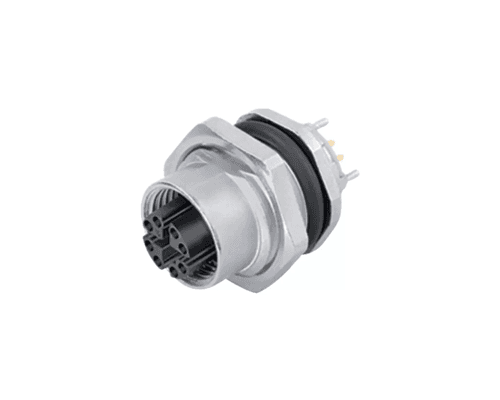

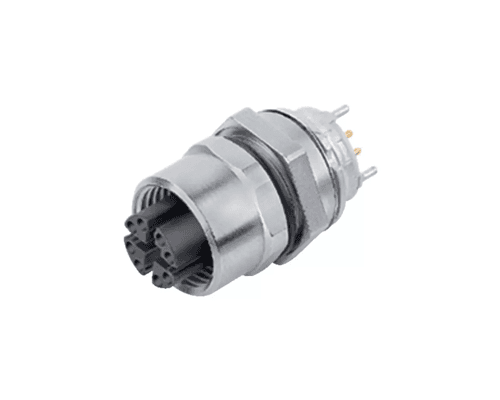

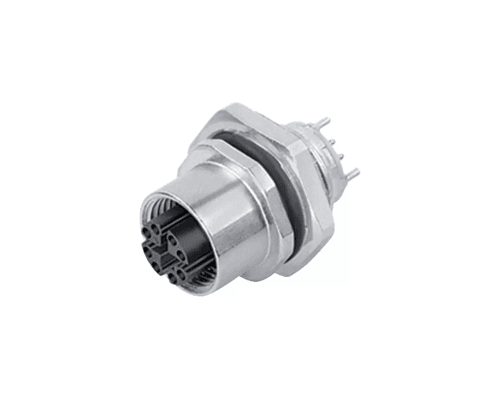

8 Way M12 (X-Coded) Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (825 Series)
Part no. : 09-3782-91-08
8 Way M12 (X-Coded) Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (825 Series)
Part no. : 99-3782-210-08
8 Way M12 (X-Coded) Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (825 Series)
Part no. : 99-3782-200-08
8 Way M12 (X-Coded) Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (825 Series)
Part no. : 99-3782-213-08

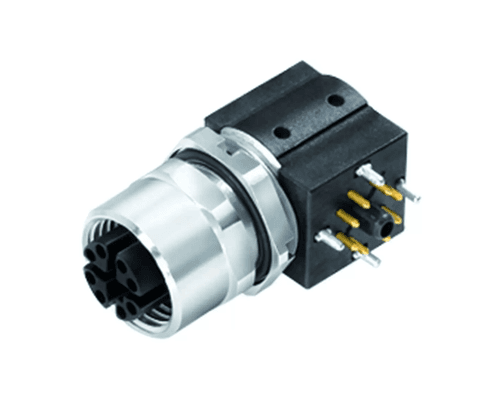

8 Way M12 (X-Coded) Female Jam-Nut Panel Connector with Angled Dip-Solder Contacts, IP67 (825 Series)
Part no. : 99-3782-202-08
8 Way M12 (X-Coded) Female Jam-Nut Panel Connector with Angled Dip-Solder Contacts, IP67 (825 Series)
Part no. : 70-3784-706-08
8 Way M12 (X-Coded) Female Jam-Nut Panel Connector with Pre-Cabled Contacts, 0.5m Shielded Cat. 6A Cable with Green PUR Jacket, IP67 (876 Series)
Part no. : 99-3782-401-08
8 Way M12 (X-Coded) Female Jam-Nut Panel Connector with SMT Contacts, IP67 (876 Series)
Part no. : 99-3782-402-08
8 Way M12 (X-Coded) Female Jam-Nut Panel Connector with SMT Contacts, IP67 (876 Series)
Part no. : 09-3782-200-08
8 Way M12 (X-Coded) Female Panel Connector Insert with Dip-Solder Contacts, IP67 (876 Series)
Part no. : 09-3782-202-08

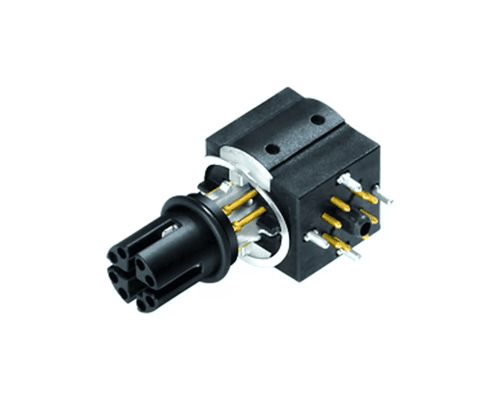

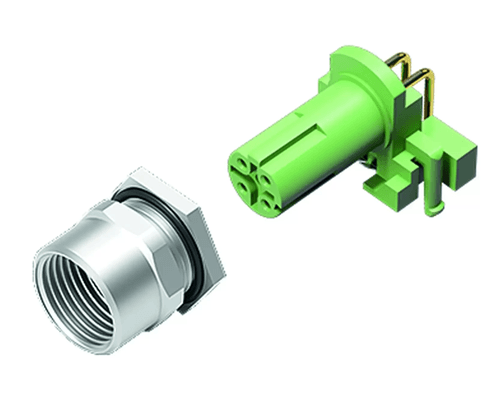

8 Way M12 (X-Coded) Female Panel Connector Insert with Angled Dip-Solder Contacts, IP67 (876 Series)
Part no. : 09-5286-00-08
8 Way M12 (X-Coded) Jam-Nut Panel Feedthrough Connector, Female to Female, IP67 (876 Series)
Part no. : 09-5287-00-08

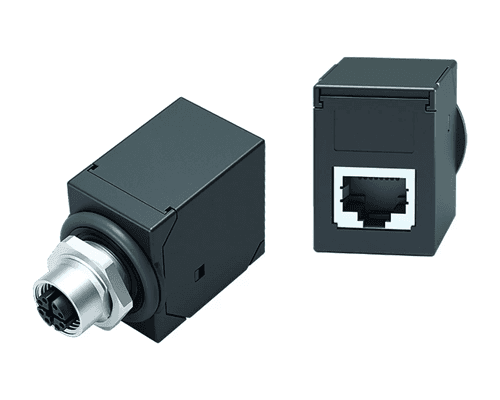

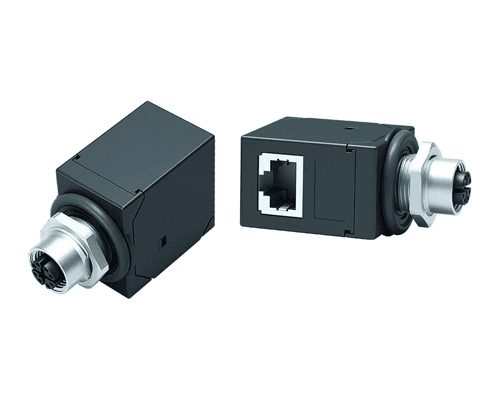

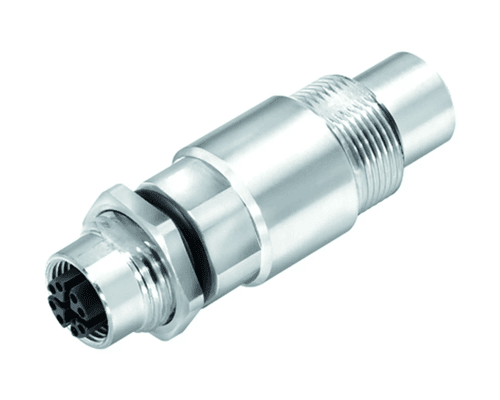

8 Way M12 (X-Coded) to RJ45 Jam-Nut Panel Feedthrough Connector, Female to Female, IP20-IP67 (876 Series)
Part no. : 09-5288-00-08
8 Way M12 (X-Coded) to Angled RJ45 Jam-Nut Panel Feedthrough Connector, Female to Female, IP20-IP67 (876 Series)
Part no. : 77-4529-0000-50704–0200

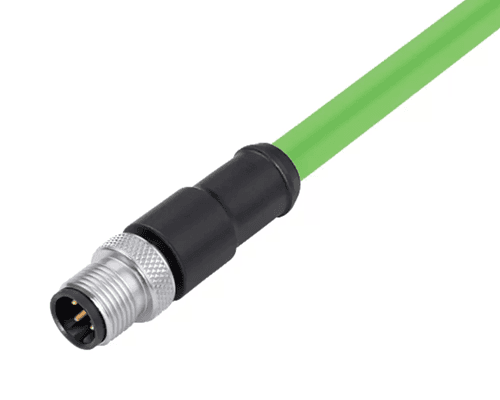

4 Way M12 (D-Coded) Cable Assembly, Straight Male to Open End, 2m Shielded PROFINET Cable with Green PUR Jacket, IP67 (876 Series)
Part no. : 77-4529-0000-50704–0500
4 Way M12 (D-Coded) Cable Assembly, Straight Male to Open End, 5m Shielded PROFINET Cable with Green PUR Jacket, IP67 (876 Series)
Part no. : 77-4529-0000-50704–1000
4 Way M12 (D-Coded) Cable Assembly, Straight Male to Open End, 10m Shielded PROFINET Cable with Green PUR Jacket, IP67 (876 Series)
Part no. : 77-4530-0000-50704–0200
4 Way M12 (D-Coded) Cable Assembly, Straight Female to Open End, 2m Shielded PROFINET Cable with Green PUR Jacket, IP67 (876 Series)
Part no. : 77-4530-0000-50704–0500
4 Way M12 (D-Coded) Cable Assembly, Straight Female to Open End, 5m Shielded PROFINET Cable with Green PUR Jacket, IP67 (876 Series)
Part no. : 77-4530-0000-50704–1000
4 Way M12 (D-Coded) Cable Assembly, Straight Female to Open End, 10m Shielded PROFINET Cable with Green PUR Jacket, IP67 (876 Series)
Part no. : 79-9722-020-08

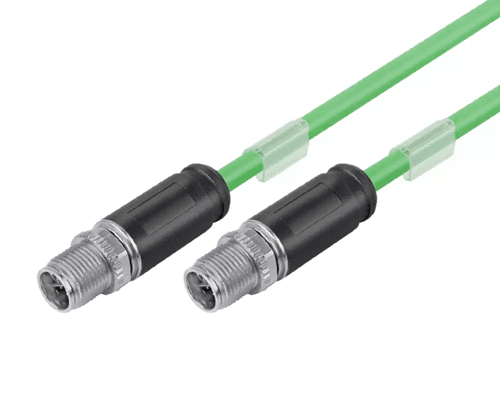

8 Way M12 (X-Coded) Cable Assembly, Straight Male to Straight Male, 2m Cat. 6A Shielded Cable with Green PUR Jacket, IP67 (876 Series)
Part no. : 79-9722-050-08
8 Way M12 (X-Coded) Cable Assembly, Straight Male to Straight Male, 5m Cat. 6A Shielded Cable with Green PUR Jacket, IP67 (876 Series)
Part no. : 79-9722-100-08
8 Way M12 (X-Coded) Cable Assembly, Straight Male to Straight Male, 10m Cat. 6A Shielded Cable with Green PUR Jacket, IP67 (876 Series)
Part no. : 79-9724-020-08

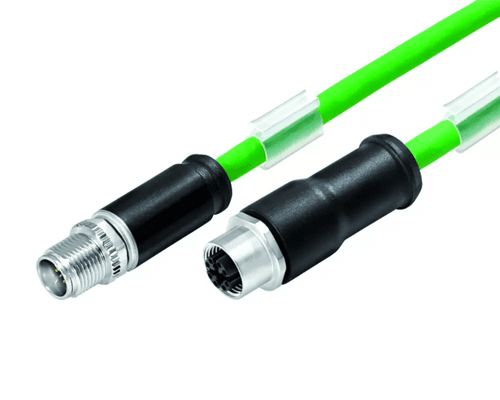

8 Way M12 (X-Coded) Cable Assembly, Straight Male to Straight Female, 2m Cat. 6A Shielded Cable with Green PUR Jacket, IP67 (876 Series)
Part no. : 79-9724-050-08
8 Way M12 (X-Coded) Cable Assembly, Straight Male to Straight Female, 5m Cat. 6A Shielded Cable with Green PUR Jacket, IP67 (876 Series)
Part no. : 79-9724-100-08
8 Way M12 (X-Coded) Cable Assembly, Straight Male to Straight Female, 10m Cat. 6A Shielded Cable with Green PUR Jacket, IP67 (876 Series)
Part no. : 79-9723-020-08

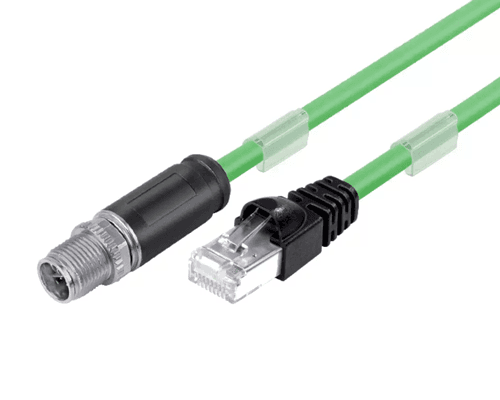

8 Way M12 (X-Coded) to RJ45 Cable Assembly, Straight Male to Straight Male, 2m Cat. 6A Shielded Cable with Green PUR Jacket, IP20-IP67 (876 Series)
Part no. : 79-9723-050-08
8 Way M12 (X-Coded) to RJ45 Cable Assembly, Straight Male to Straight Male, 5m Cat. 6A Shielded Cable with Green PUR Jacket, IP20-IP67 (876 Series)
Part no. : 79-9723-100-08
8 Way M12 (X-Coded) to RJ45 Cable Assembly, Straight Male to Straight Male, 10m Cat. 6A Shielded Cable with Green PUR Jacket, IP20-IP67 (876 Series)
Part no. : 61-1224-146
100 Piece pack of 1mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.14-0.34mm²
Part no. : 61-1154-146
100 Piece pack of 1mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.34-0.50mm²
Part no. : 61-1225-146
100 Piece pack of 1mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.75-1.00mm²
Part no. : 61-1226-146
100 Piece pack of 1mm Crimp Pin Contact, Machined Construction, Gold Plating, 1.00-1.50mm²
