77-4434-0000-50003–0200

binder / M12-B Coded (715, 766 Series)

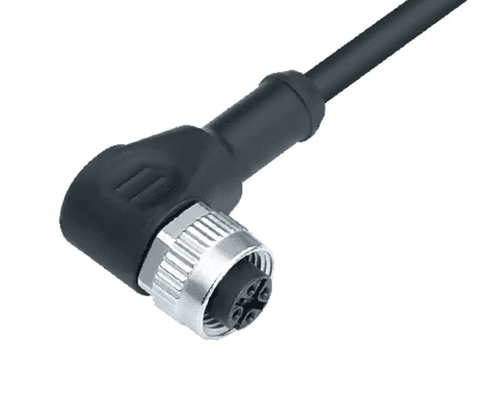

3 Way M12 (B-Coded) Cable Assembly, Angled Female to Open End, 2m Cable with Black PUR Jacket, IP67 (766 Series)

Image may be representative of a range of products, see literature to confirm

Available Downloads

Technical Specification

Part Number77-4434-0000-50003–0200

Product TypeCable Assembly

Brandbinder

Connector SeriesM12-B (766 Series)

ApprovalsUL

Cable Assembly TypeSingle Ended

Cable Jacket ColourBlack

Cable Jacket MaterialPUR

Cable Length2M

Cable Operating Temperature-50 to +90°C (fixed), -25 to +90°C (flex)

Conductor Gauge0.34mm²

Connector Operating Temperature-40°C to 85°C

Connector Type 13 Way Female

Connector Type 2NA

Contact PlatingGold

Coupling Area MaterialMetal

Current Rating4A

Voltage Rating250V

Electrical NotesSee literature for derating curves

Degree of Ingress ProtectionIP67

EMC ShieldNo

Gender of InsertFemale

Housing MaterialPlastic

Keyway/Coding TypeB-Coded

Locking SystemScrew

Min. Mechanical Mating Cycles100

Number of Conductors3

Shell TypeCable Connector

About this Series

Robust and compact circular connectors from one of the industry’s most trusted brands

In brief:

Compact circular connector system with industry standard IEC 61076-2-101 M12x1 screw locking interface.

M12 B-Coded connectors offer pin-counts of 3 to 5 with a current carrying capacity of up to 4A per contact.

The series caters for cable OD’s of up to 8.6mm, has a wire gauge max. of 0.75mm² and is capable of offering IP67 ingress protection in mated state or with the use of a protection cover.

Binder M12-B Coded Sensor & Automation Connectors (715, 766)

M12 has quickly become an industry standard for sensor and automation applications and is one of the most common connections seen in this environment.

The compact design and versatility of this series makes it Ideal for many applications and therefore an array of coding options have been developed to separate one sub series from the other allowing simpler identification and to tailor certain features towards a particular specification.

Binder M12-B coded connectors are available with 3, 4 and 5 way layouts with many shell variation and moulded cable options.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001
