binder / Bayonet Miniature (678 Series)

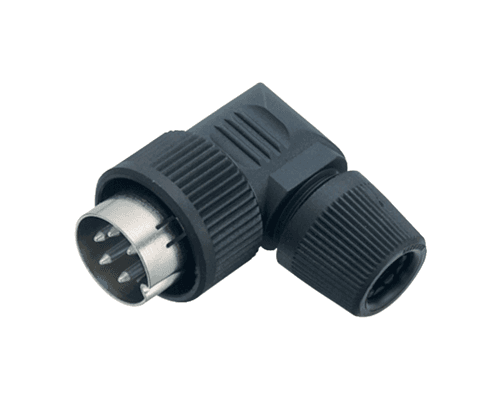

7 Way Bayonet Male Cable Connector with Solder Contacts, 6-8mm Angled Cable Entry, IP40 (678 Series)

Image may be representative of a range of products, see literature to confirm

Available Downloads

Technical Specification

Part Number99-0621-72-07

Product TypeConnector

Brandbinder

Connector SeriesBayonet Miniature (678 Series)

Backshell IncludedYes

Body OrientationAngled

Connector TypeCable Connector

Contact PlatingSilver

Contacts IncludedYes

Coupling Area MaterialPlastic

Current Rating5A

Voltage Rating32V

Electrical NotesSee literature for derating curves

Degree of Ingress ProtectionIP40

EMC Shielding CapabilityNo

Gender of InsertMale

Housing MaterialPlastic

Keyway/Coding TypeStandard

Locking SystemBayonet

Min. Mechanical Mating Cycles500

Max. Wire Gauge/Cross-Sectional Area0.75mm²

Min. Cable Entry (mm)6

Max. Cable Entry (mm)8

Number of Ways7

Operating Temperature-40°C to 85°C

Positive Earth (PE)No

Shell sizeNA

About this Series

Robust and compact circular connectors from one of the industry’s most trusted brands

In brief:

Compact multi-pin circular connector system with Bayonet locking mechanism.

Bayonet miniature connectors offer pin-counts from 2 to 24 with a current carrying capacity of up to 7A per contact.

The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 0.75mm² and is capable of offering IP67 ingress protection in mated state.

Binder Bayonet Miniature Connectors 678 series

The binder bayonet miniature series is a small yet practical connector system with a wide choice of pin configurations.

The cable connectors of the 678 series are available in both genders and in straight and angled version with cable collet outlets of either 4-6mm or 6-8mm. Panel connectors are front mount/rear fastened in both male and female genders and have solder termination.

With a wide choice of pin configurations this bayonet system is often used on a variety of applications with wire gauges ranging from as small as 0.14mm² allowance on the 24 way to as large as 0.75mm² on the 2-8 way layouts.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001
