binder Bayonet NCC Miniature (770 Series)

Binder Bayonet NCC Miniature Connectors (770 Series)

In brief:

Compact multi-pin circular connector system with bayonet locking mechanism.

NCC Miniature Bayonet connectors are available in a 8 way format with a current carrying capacity of up to 2A per contact.

The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 0.25mm² and is capable of offering IP67 ingress protection in both mated and unmated state.

binder connectors

Robust and compact circular connectors from one of the industry’s most trusted brands

DownloadDownload Brochure

The distinctive locking system of the Binder Bayonet NCC allows for over 5000 mating cycles with guaranteed performance which is often 10 x that of competitors product.

Available only in an 8 way configuration for now but with further pin counts on the way this Binder connector system really has burst onto the scene with its cutting edge characteristics and aesthetic design.

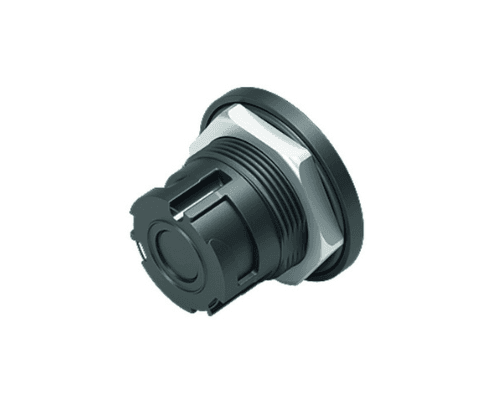

The system features a receptacle which when disconnected from the mating cable connector is sealed to IP67 with a uniquely designed spring loaded inner insert which pops up to be flush with the outer shell. This design prevents any foreign objects contaminating the contacts when not in use and any water from passing through the connection if placed in a harsh environment without the need of a protection cap.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001

We have many products in this series, find what you need using the filters below

15 products match your criteria:

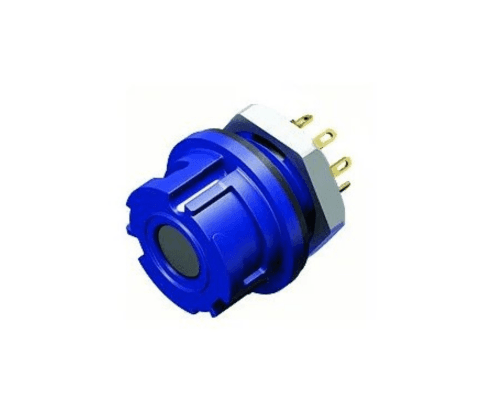

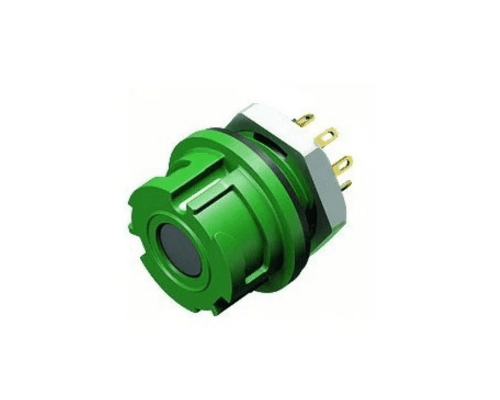

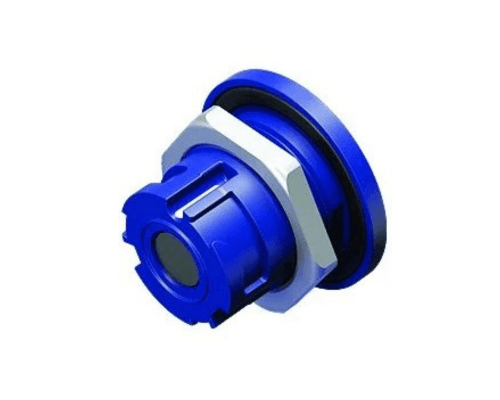

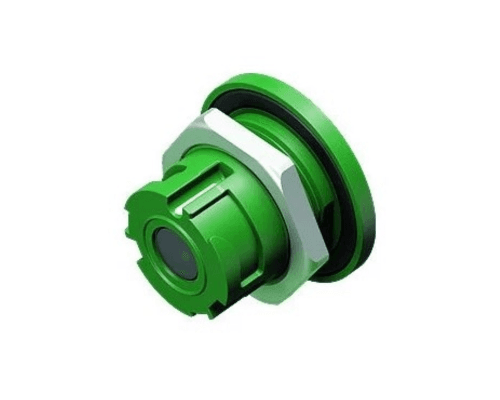

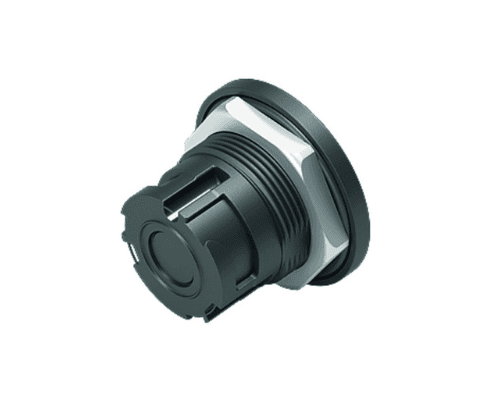

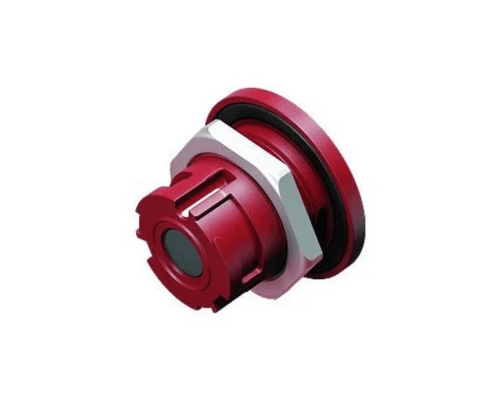

09-0774-090-08 thumbnail

Part no. : 09-0774-090-08

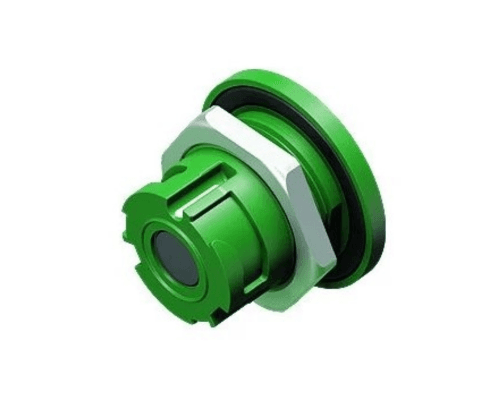

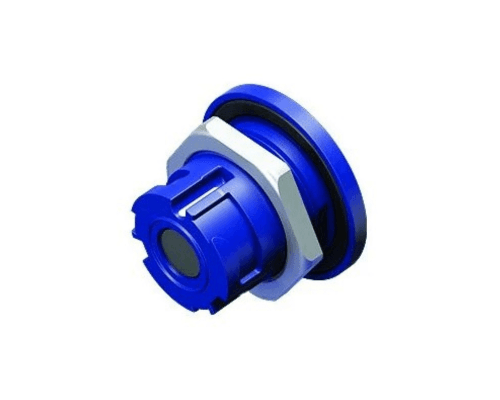

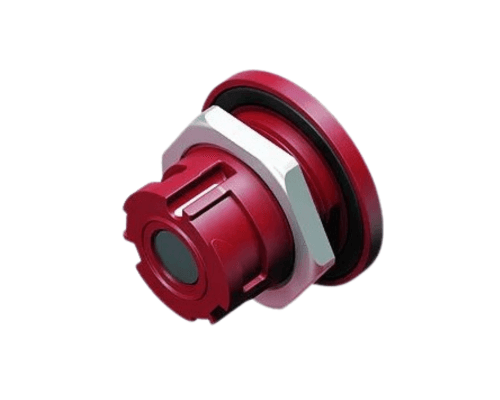

8 Way Bayonet Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (770 Series)

09-0774-190-08 thumbnail

Part no. : 09-0774-190-08

8 Way Bayonet Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (770 Series)

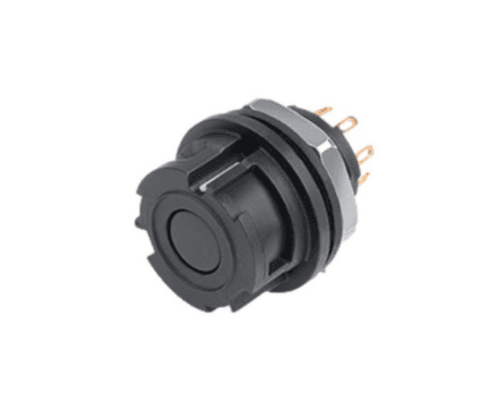

09-0774-000-08 thumbnail

Part no. : 09-0774-000-08

8 Way Bayonet Female Jam-Nut Panel Connector with Solder Contacts, IP67 (770 Series)

09-0774-180-08 thumbnail

Part no. : 09-0774-180-08

8 Way Bayonet Female Jam-Nut Panel Connector with Solder Contacts, IP67 (770 Series)

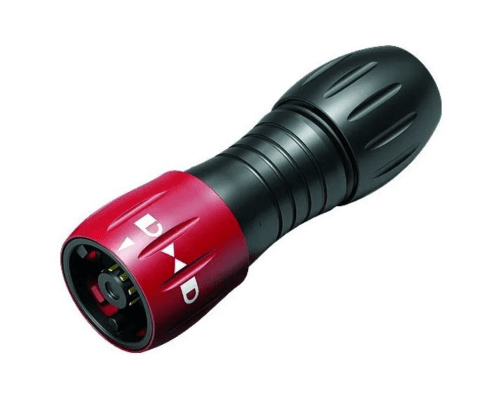

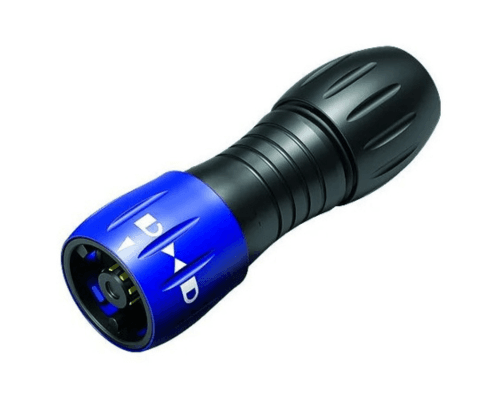

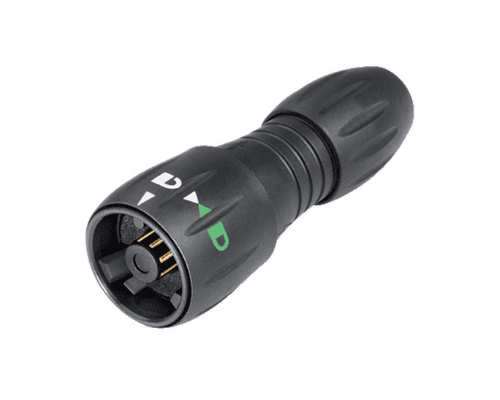

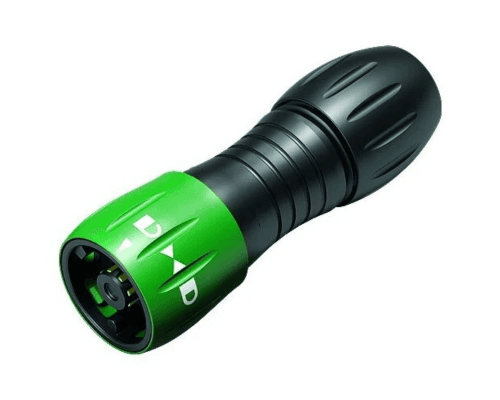

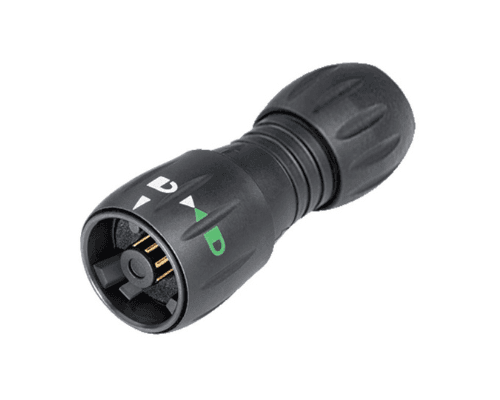

99-0771-000-08 thumbnail

Part no. : 99-0771-000-08

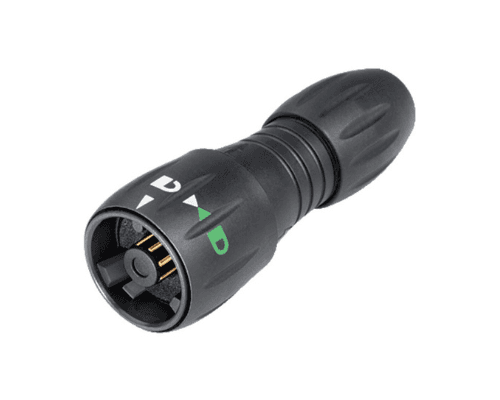

8 Way Bayonet Male Cable Connector with Solder Contacts, 2.5-4mm Straight Cable Entry, IP67 (770 Series)

99-0771-001-08 thumbnail

Part no. : 99-0771-001-08

8 Way Bayonet Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, IP67 (770 Series)

99-0771-002-08 thumbnail

Part no. : 99-0771-002-08

8 Way Bayonet Male Cable Connector with Solder Contacts, 6-8mm Straight Cable Entry, IP67 (770 Series)

99-0773-000-08 thumbnail

Part no. : 99-0773-000-08

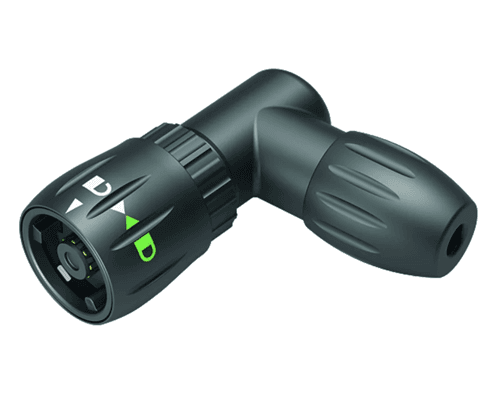

8 Way Bayonet Male Cable Connector with Solder Contacts, 2.5-4mm Angled Cable Entry, IP67 (770 Series)

99-0773-001-08 thumbnail

Part no. : 99-0773-001-08

8 Way Bayonet Male Cable Connector with Solder Contacts, 4-6mm Angled Cable Entry, IP67 (770 Series)

99-0773-002-08 thumbnail

Part no. : 99-0773-002-08

8 Way Bayonet Male Cable Connector with Solder Contacts, 6-8mm Angled Cable Entry, IP67 (770 Series)

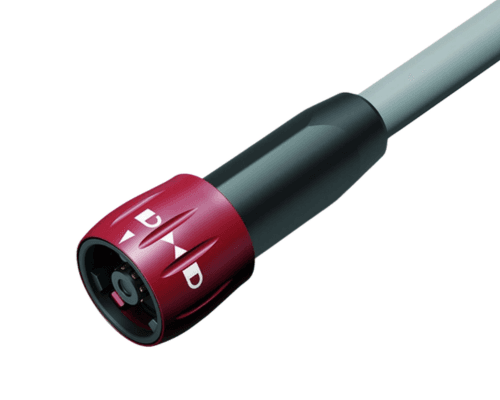

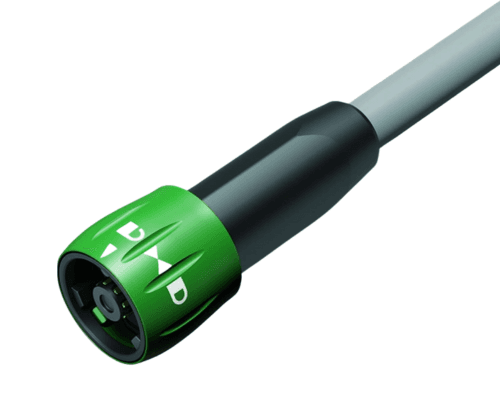

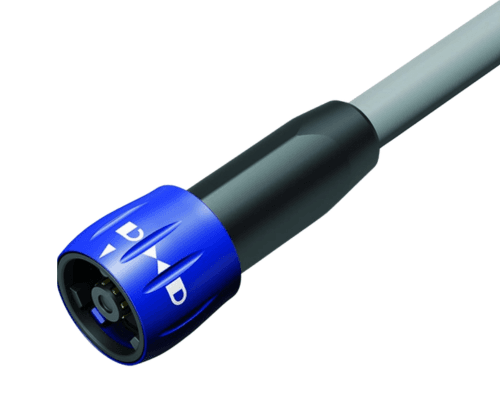

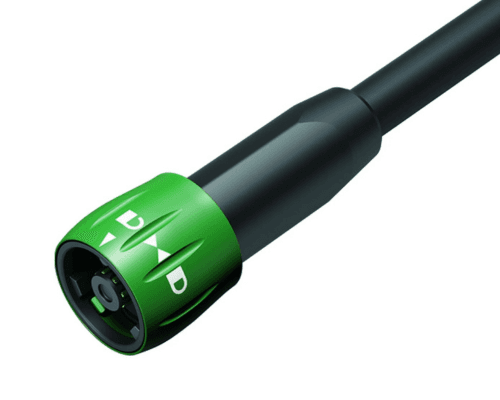

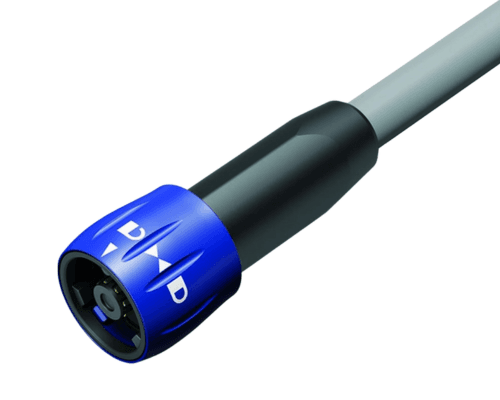

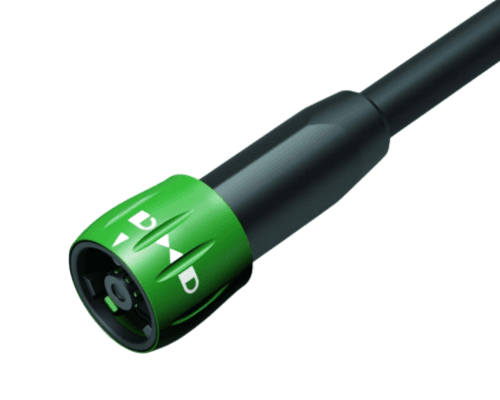

77-6005-0000-20008-0200 thumbnail

Part no. : 77-6005-0000-20008-0200

8 Way NCC Bayonet Cable Assembly, Straight Female to Open End, 2m Cable with Grey PVC Jacket, IP67 (770 Series)

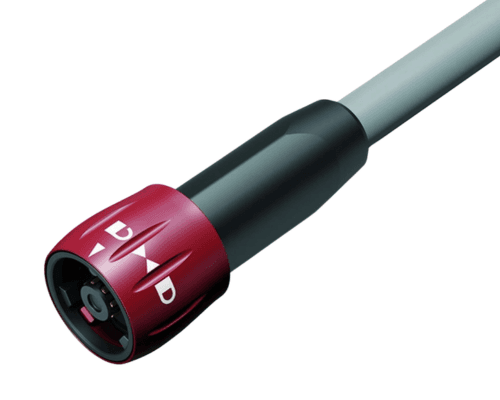

77-6005-0000-20008-0500 thumbnail

Part no. : 77-6005-0000-20008-0500

8 Way NCC Bayonet Cable Assembly, Straight Female to Open End, 5m Cable with Grey PVC Jacket, IP67 (770 Series)

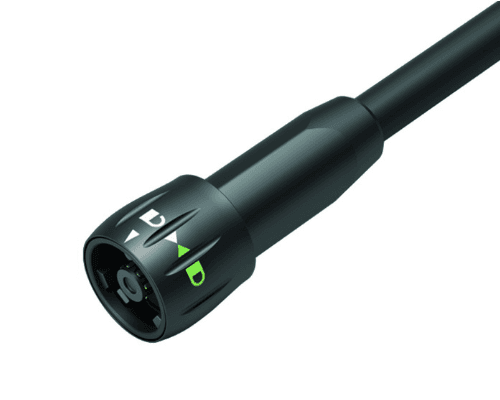

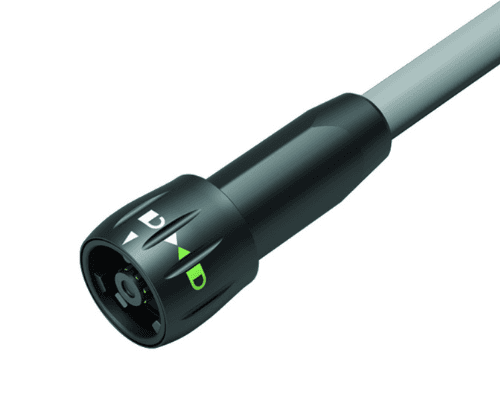

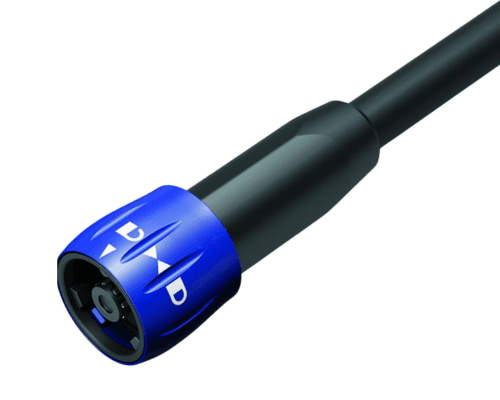

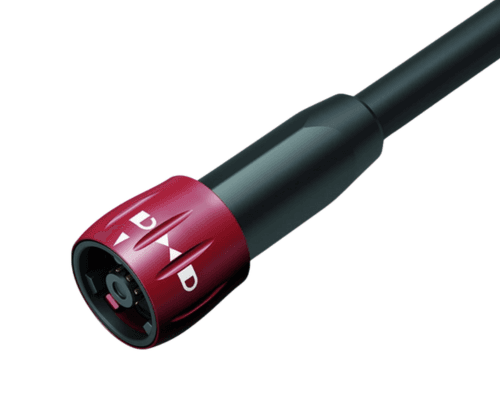

77-6005-0000-50008-0200 thumbnail

Part no. : 77-6005-0000-50008-0200

8 Way NCC Bayonet Cable Assembly, Straight Female to Open End, 2m Cable with Black PUR Jacket, IP67 (770 Series)

77-6005-0000-50008-0500 thumbnail

Part no. : 77-6005-0000-50008-0500

8 Way NCC Bayonet Cable Assembly, Straight Female to Open End, 5m Cable with Black PUR Jacket, IP67 (770 Series)

08-0374-000-000 thumbnail

Part no. : 08-0374-000-000

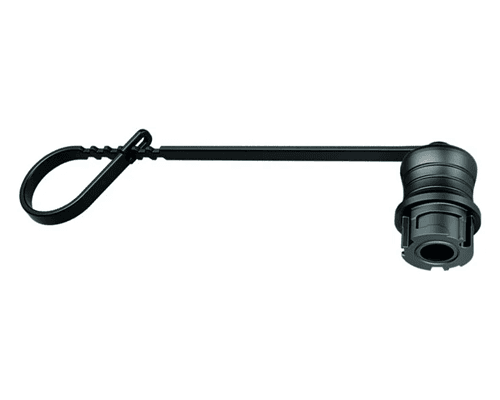

Protection Cover for Cable Connector, with Fixing Rope, IP67 (770 Series)
