HUMMEL Rail Application Cable Glands

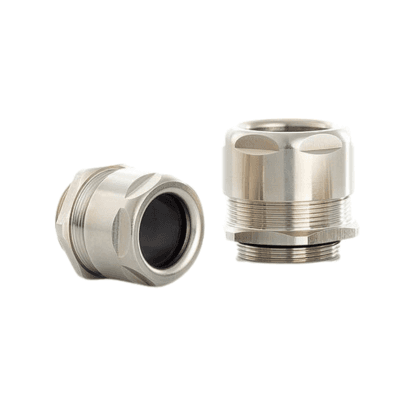

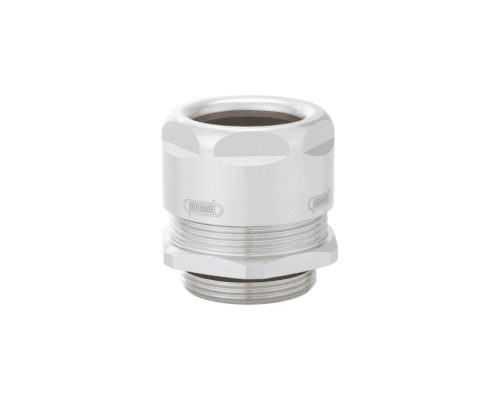

HUMMEL VariaPro Rail Cable Gland

In brief:

Robust Cable Glands designed for use in rail transportation applications.

VariaPro Rail series conforms to DIN EN 45545-2 and 45545-3 fire protection standards meaning they can be used without restriction on all trains within the European rail network.

The sealing inserts of VariaPro Rail are made of EPDM and cater for operating temperatures from -40°C to 100°C.

Within the specified clamping range the series can achieve IP68 ingress protection.

Hummel Distributors - Hummel logo

A renowned manufacturer known for quality, innovation and technical development, offering circular connectors, cable glands and cable protection

DownloadDownload Brochure

HUMMEL VariaPro Rail cable glands have successfully passed the DIN EN 45545-2 and 45545-3 fire protection standards allowing them to be used to their full capacity without any form of restriction.

The sealing inserts of the VariaPro Rail are made of EDPM which enables the gland to withstand extreme temperatures that other glands may struggle to perform in. This series is able to hold it’s own in temperatures ranging from -40°C to +100°C.

This series has a solid protection from water and dust with an IP Rating of 68 up to 10 bar. The slim structure of the VariaPro is striking and meets the requirements for space saving installation.

Added to this is the ease of installation of the cable gland, in which the EMC connection is already integrated as standard. This means that the series VariaPro is able to take up less space than other glands and it is easier to install allowing for a smooth experience for the customer.

The gland is available in the sizes M12 to M63 and thanks to the intelligent combination of sealing inserts and reducers, VariaPro Rail can accommodate cables of diameters from 2 to 54mm.

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.

We have many products in this series, find what you need using the filters below

16 products match your criteria:

1.750.1200.50 thumbnail

Part no. : 1.750.1200.50

M12 Metal Cable Gland for Rail Applications, 2-8mm Cable Entry, IP68 (VariaPro-Rail)

1.750.1200.51 thumbnail

Part no. : 1.750.1200.51

M12 Metal Cable Gland for Rail Applications, 5-8mm Cable Entry, IP68 (VariaPro-Rail)

1.750.1600.50 thumbnail

Part no. : 1.750.1600.50

M16 Metal Cable Gland for Rail Applications, 4-11mm Cable Entry, IP68 (VariaPro-Rail)

1.750.1600.51 thumbnail

Part no. : 1.750.1600.51

M16 Metal Cable Gland for Rail Applications, 7-11mm Cable Entry, IP68 (VariaPro-Rail)

1.750.2000.50 thumbnail

Part no. : 1.750.2000.50

M20 Metal Cable Gland for Rail Applications, 7-14mm Cable Entry, IP68 (VariaPro-Rail)

1.750.2000.51 thumbnail

Part no. : 1.750.2000.51

M20 Metal Cable Gland for Rail Applications, 10-14mm Cable Entry, IP68 (VariaPro-Rail)

1.750.2500.50 thumbnail

Part no. : 1.750.2500.50

M25 Metal Cable Gland for Rail Applications, 11-18mm Cable Entry, IP68 (VariaPro-Rail)

1.750.2500.51 thumbnail

Part no. : 1.750.2500.51

M25 Metal Cable Gland for Rail Applications, 14.5-18mm Cable Entry, IP68 (VariaPro-Rai)

1.750.3200.50 thumbnail

Part no. : 1.750.3200.50

M32 Metal Cable Gland for Rail Applications, 16-25mm Cable Entry, IP68 (VariaPro-Rail)

1.750.3200.51 thumbnail

Part no. : 1.750.3200.51

M32 Metal Cable Gland for Rail Applications, 20.5-25mm Cable Entry, IP68 (VariaPro-Rail)

1.750.4000.50 thumbnail

Part no. : 1.750.4000.50

M40 Metal Cable Gland for Rail Applications, 21-32mm Cable Entry, IP68 (VariaPro-Rail)

1.750.4000.51 thumbnail

Part no. : 1.750.4000.51

M40 Metal Cable Gland for Rail Applications, 26.5-32mm Cable Entry, IP68 (VariaPro-Rail)

1.750.5000.50 thumbnail

Part no. : 1.750.5000.50

M50 Metal Cable Gland for Rail Applications, 31-42mm Cable Entry, IP68 (VariaPro-Rail)

1.750.5000.51 thumbnail

Part no. : 1.750.5000.51

M50 Metal Cable Gland for Rail Applications, 35-42mm Cable Entry, IP68 (VariaPro-Rail)

1.750.6300.50 thumbnail

Part no. : 1.750.6300.50

M63 Metal Cable Gland for Rail Applications, 41-54mm Cable Entry, IP68 (VariaPro-Rail)

1.750.6300.51 thumbnail

Part no. : 1.750.6300.51

M63 Metal Cable Gland for Rail Applications, 46.5-54mm Cable Entry, IP68 (VariaPro-Rail)
