HUMMEL Chemical Resistant Cable Glands

In brief:

Robust cable glands designed to resist acids and chemicals in demanding industrial environments.

VariaPro FKM series housings are made of nickel-plated brass and the cable seal is FKM.

The FKM sealing insert caters for operating temperatures from -20°C to 180°C.

Within the specified clamping range the series can achieve IP68 ingress protection.

Hummel Distributors - Hummel logo

A renowned manufacturer known for quality, innovation and technical development, offering circular connectors, cable glands and cable protection

DownloadDownload Brochure

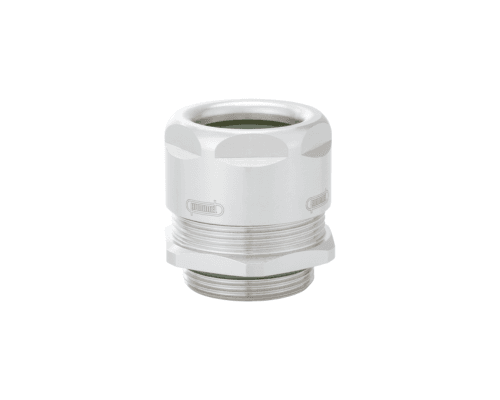

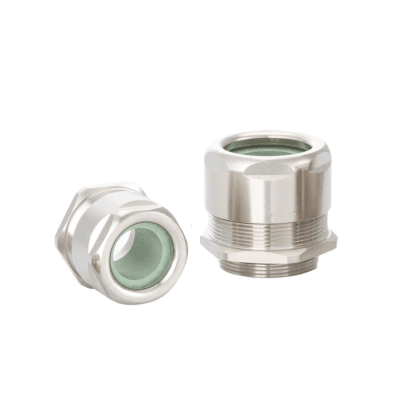

HUMMEL VariaPro FKM chemical-resistant cable glands are constructed with a nickel-plated brass housing and FKM (fluorine rubber) seals. This range is able to withstand chemicals and acids with an IP rating of 68 up to 10 bar. These glands are also capable of working under extreme temperatures ranging from -20°C to 180°C.

The range has been uniquely designed for use in applications where encountering harsh chemicals and acids is inevitable. These glands have been designed to withstand these chemicals and keep performing as expected. Examples of where these glands may be used include the chemical and pharmaceutical industries or in the energy sector.

The design of this range has massive advantages over regular types of glands. These Hummel Glands being made of Nickel-Plated Brass helps to harden the surface which prevents tearing in the gland which in turn reduces the chance of any liquid or dust entering. The seals of the gland are made of fluorine rubber which enables the gland to have a higher resistance to heat, oil and other chemicals which it may encounter.

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.

We have many products in this series, find what you need using the filters below

16 products match your criteria:

1.752.1200.50 thumbnail

Part no. : 1.752.1200.50

M12 Metal Cable Gland for Environments with Chemical Exposure, 2-8mm Cable Entry, IP68 (VariaPro-FKM)

1.752.1200.51 thumbnail

Part no. : 1.752.1200.51

M12 Metal Cable Gland for Environments with Chemical Exposure, 5-8mm Cable Entry, IP68 (VariaPro-FKM)

1.752.1600.50 thumbnail

Part no. : 1.752.1600.50

M16 Metal Cable Gland for Environments with Chemical Exposure, 4-11mm Cable Entry, IP68 (VariaPro-FKM)

1.752.1600.51 thumbnail

Part no. : 1.752.1600.51

M16 Metal Cable Gland for Environments with Chemical Exposure, 7-11mm Cable Entry, IP68 (VariaPro-FKM)

1.752.2000.50 thumbnail

Part no. : 1.752.2000.50

M20 Metal Cable Gland for Environments with Chemical Exposure, 7-14mm Cable Entry, IP68 (VariaPro-FKM)

1.752.2000.51 thumbnail

Part no. : 1.752.2000.51

M20 Metal Cable Gland for Environments with Chemical Exposure, 10-14mm Cable Entry, IP68 (VariaPro-FKM)

1.752.2500.50 thumbnail

Part no. : 1.752.2500.50

M25 Metal Cable Gland for Environments with Chemical Exposure, 11-18mm Cable Entry, IP68 (VariaPro-FKM)

1.752.2500.51 thumbnail

Part no. : 1.752.2500.51

M25 Metal Cable Gland for Environments with Chemical Exposure, 14.5-18mm Cable Entry, IP68 (VariaPro-FKM)

1.752.3200.50 thumbnail

Part no. : 1.752.3200.50

M32 Metal Cable Gland for Environments with Chemical Exposure, 16-25mm Cable Entry, IP68 (VariaPro-FKM)

1.752.3200.51 thumbnail

Part no. : 1.752.3200.51

M32 Metal Cable Gland for Environments with Chemical Exposure, 20.5-25mm Cable Entry, IP68 (VariaPro-FKM)

1.752.4000.50 thumbnail

Part no. : 1.752.4000.50

M40 Metal Cable Gland for Environments with Chemical Exposure, 21-32mm Cable Entry, IP68 (VariaPro-FKM)

1.752.4000.51 thumbnail

Part no. : 1.752.4000.51

M40 Metal Cable Gland for Environments with Chemical Exposure, 26.5-32mm Cable Entry, IP68 (VariaPro-FKM)

1.752.5000.50 thumbnail

Part no. : 1.752.5000.50

M50 Metal Cable Gland for Environments with Chemical Exposure, 31-42mm Cable Entry, IP68 (VariaPro-FKM)

1.752.5000.51 thumbnail

Part no. : 1.752.5000.51

M50 Metal Cable Gland for Environments with Chemical Exposure, 35-42mm Cable Entry, IP68 (VariaPro-FKM)

1.752.6300.50 thumbnail

Part no. : 1.752.6300.50

M63 Metal Cable Gland for Environments with Chemical Exposure, 41-54mm Cable Entry, IP68 (VariaPro-FKM)

1.752.6300.51 thumbnail

Part no. : 1.752.6300.51

M63 Metal Cable Gland for Environments with Chemical Exposure, 46.5-54mm Cable Entry, IP68 (VariaPro-FKM)
