Hirschmann / G Series

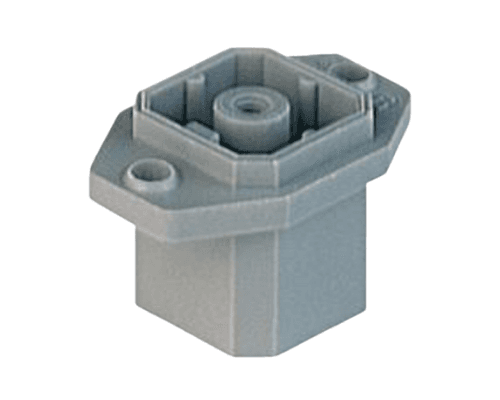

4 Way Flanged Panel Connector for Pin Contacts, IP65 (G 4 E 1 M Grey)

731802506 thumbnailImage may be representative of a range of products, see literature to confirm

Available Downloads

Downloaded iconDatasheet thumbnail
Datasheet
Downloaded iconBrochure thumbnail
Brochure
Quick Quote

Technical Specification

Part Number731802506
Product TypeConnector
BrandHirschmann
Connector SeriesG
ApprovalsVDE
Backshell IncludedNo
Body OrientationStraight
Connector TypePanel Connector
Contact PlatingTin
Contacts IncludedNo
Coupling Area MaterialPlastic
Current Rating10A
Voltage Rating50V AC/DC
Electrical NotesAs per DIN EN 60664-1 (2008/01), VDE 0110-1
Degree of Ingress ProtectionIP65
EMC Shielding CapabilityNo
Gender of InsertMale
Housing MaterialPlastic
Keyway/Coding TypeStandard
Locking SystemCentral Screw
Min. Mechanical Mating Cycles50
Max. Wire Gauge/Cross-Sectional Area1.00mm²
Min. Cable Entry (mm)NA
Max. Cable Entry (mm)NA
Number of Ways4
Operating Temperature-40 to +90°C
Positive Earth (PE)No
Termination Method/TechnologyCrimp

About this Series

Hirschmann logo

High-quality products for the automation industry, delivered at great value

In brief:

Robust multi-pin rectangular connector system with central screw locking functionality.

G Series connectors offer pin-counts from 2 to 17 with a current carrying capacity of up to 10A per contact.

The series caters for cable OD’s of up to 10mm, has a wire gauge max. of 1.00mm² and is capable of offering IP65 ingress protection in mated state.

Hirschmann G Series

The compact dimensions of the G series make it ideal for tough environments that have space limitations.

The G series is often used on power and control applications for small drives in hydraulic and pneumatic systems, electromedical devices and photo cells.

The connectors are offered in two structurally identical versions either with or without earthing contact with numbering to avoid accidental miswiring.

The design and materials of the G series fulfil the specifications as per VDE 0660 and offer protection against dust and sprayed water.

Key features include:

  • Available in 2-17 pin variants
  • For voltages up to 250V and currents up to 10A
  • Compact plug design with space requirement
  • Protection class IP65

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.
