binder Bayonet Power (690 Series)
In brief:
Robust multi-pin circular connector system with Bayonet locking mechanism.
Bayonet Power connectors offer pin-counts from 3 to 12 with a current carrying capacity of up to 10A per contact.
The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 2.50mm² and is capable of offering IP40 ingress protection in mated state.
Robust and compact circular connectors from one of the industry’s most trusted brands
Download Brochurebinders Bayonet Power series is a range of industrial circular connectors with pin counts ranging from 3-12 and with IP40 environmental protection.
The connectors are secured with a positive bayonet locking mechanism and have solder termination.
Cable versions cater for 5-8mm cable OD with panel receptacles allowing up to 2.5mm² wire gauge on both 3 & 7 pole options.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001
We have many products in this series, find what you need using the filters below
19 products match your criteria:

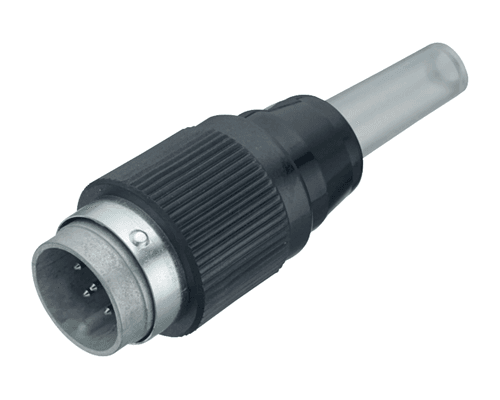

Part no. : 09-0055-00-03
3 Way Bayonet Male Cable Connector with Solder Contacts, 5-8mm Straight Cable Entry, Shieldable, IP40 (690 Series)
Part no. : 09-0059-00-05
5 Way Bayonet Male Cable Connector with Solder Contacts, 5-8mm Straight Cable Entry, Shieldable, IP40 (690 Series)
Part no. : 09-0063-00-07
7 Way Bayonet Male Cable Connector with Solder Contacts, 5-8mm Straight Cable Entry, Shieldable, IP40 (690 Series)
Part no. : 09-0467-00-12
12 Way Bayonet Male Cable Connector with Solder Contacts, 5-8mm Straight Cable Entry, Shieldable, IP40 (690 Series)

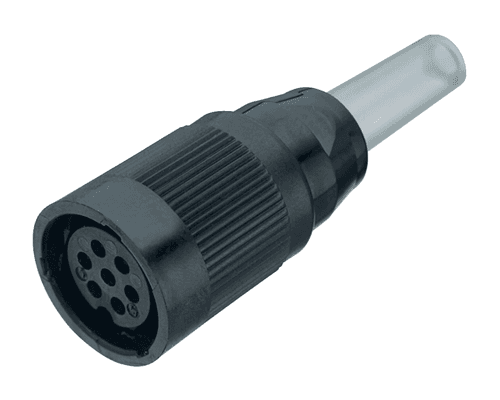

Part no. : 09-0056-00-03
3 Way Bayonet Female Cable Connector with Solder Contacts, 5-8mm Straight Cable Entry, Shieldable, IP40 (690 Series)
Part no. : 09-0060-00-05
5 Way Bayonet Female Cable Connector with Solder Contacts, 5-8mm Straight Cable Entry, Shieldable, IP40 (690 Series)
Part no. : 09-0064-00-07
7 Way Bayonet Female Cable Connector with Solder Contacts, 5-8mm Straight Cable Entry, Shieldable, IP40 (690 Series)
Part no. : 09-0468-00-12
12 Way Bayonet Female Cable Connector with Solder Contacts, 5-8mm Straight Cable Entry, Shieldable, IP40 (690 Series)

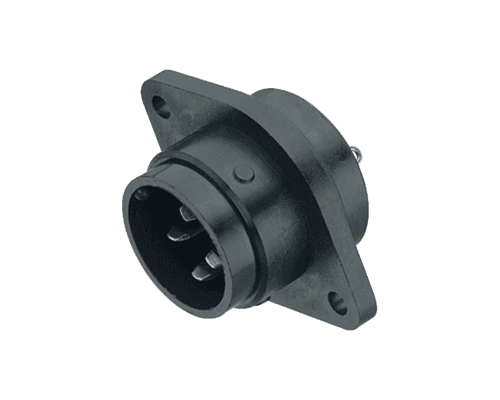

Part no. : 09-0057-00-03
3 Way Bayonet Male Flanged Panel Connector with Solder Contacts, IP40 (690 Series)
Part no. : 09-0061-00-05
5 Way Bayonet Male Flanged Panel Connector with Solder Contacts, IP40 (690 Series)
Part no. : 09-0065-00-07
7 Way Bayonet Male Flanged Panel Connector with Solder Contacts, IP40 (690 Series)
Part no. : 09-0469-00-12
12 Way Bayonet Male Flanged Panel Connector with Solder Contacts, IP40 (690 Series)

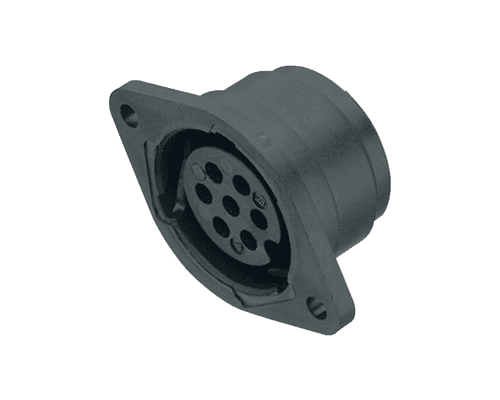

Part no. : 09-0058-00-03
3 Way Bayonet Female Flanged Panel Connector with Solder Contacts, IP40 (690 Series)
Part no. : 09-0062-00-05
5 Way Bayonet Female Flanged Panel Connector with Solder Contacts, IP40 (690 Series)
Part no. : 09-0066-00-07
7 Way Bayonet Female Flanged Panel Connector with Solder Contacts, IP40 (690 Series)
Part no. : 09-0470-00-12
12 Way Bayonet Female Flanged Panel Connector with Solder Contacts, IP40 (690 Series)
Part no. : 09-0058-70-03
3 Way Bayonet Female Flanged Panel Connector with Solder Contacts, with Shielding Sheet, IP40 (690 Series)
Part no. : 09-0062-70-05
5 Way Bayonet Female Flanged Panel Connector with Solder Contacts, with Shielding Sheet, IP40 (690 Series)
Part no. : 09-0066-70-07
7 Way Bayonet Female Flanged Panel Connector with Solder Contacts, with Shielding Sheet, IP40 (690 Series)
